FZ400D-AS04 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

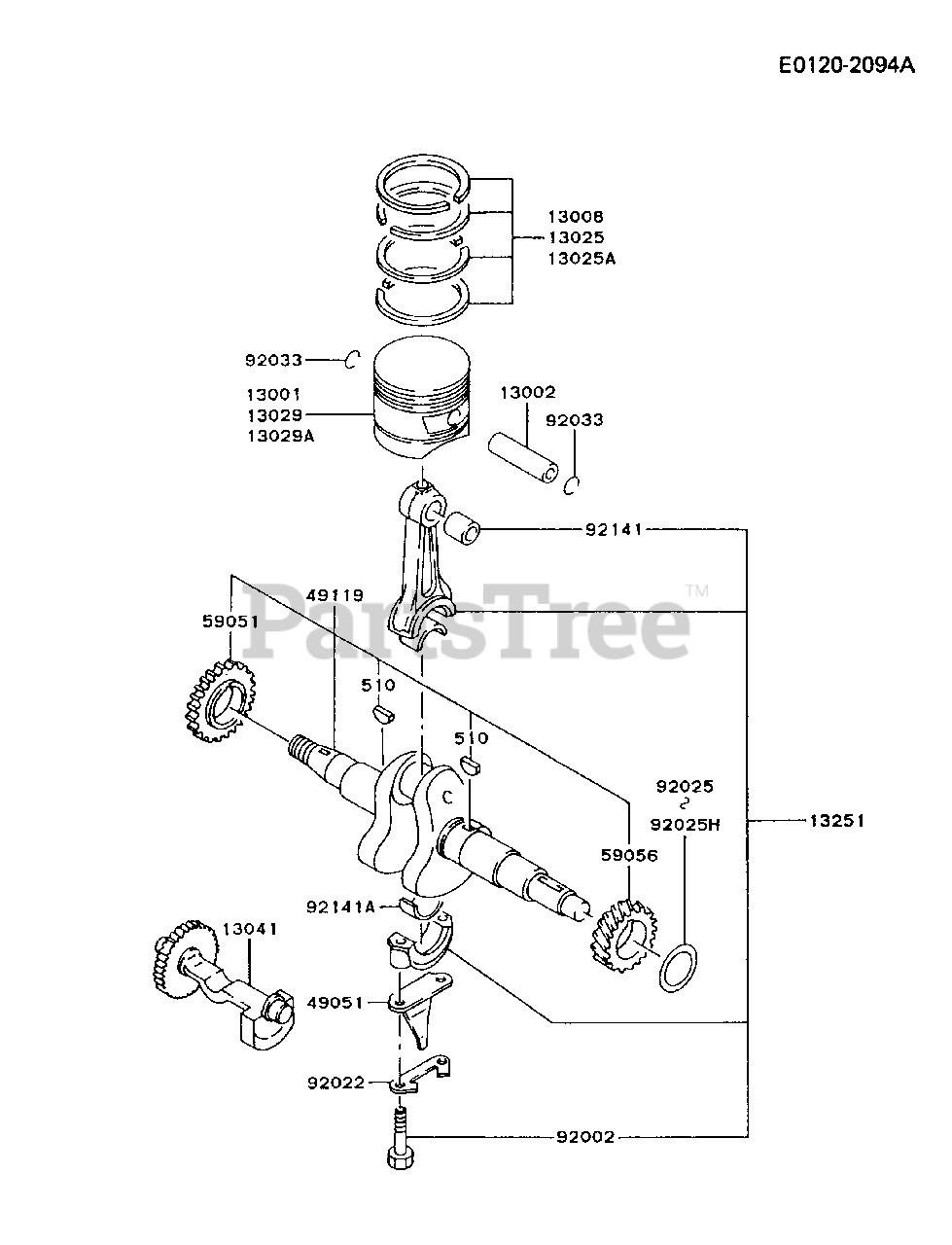

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001

Kawasaki 13001-2007

PISTON-ENGINE

$

$

Not available

13002

Kawasaki 13002-2007

PIN-PISTON

$

$

Not available

13008

Kawasaki 13008-2008

RING-SET-PISTON
(Superseded to 317270-3010-00)

$

$

Not available

13025

Kawasaki 13025-2017

RING-SET-PISTON L,0.25

$

$

Not available

13025A

Kawasaki 13025-2018

RING-SET-PISTON L,0.50
(Superseded to 317200-3030B)

$

$

Not available

13029

Kawasaki 13029-2017

PISTON-ENGINE L,0.25
(Superseded to 317200-3131-00)

$

$

Not available

13029A

Kawasaki 13029-2018

PISTON-ENGINE L,0.50

$

$

Not available

13041

Kawasaki 13041-2001

BALANCER

$

$

Not available

13251

Kawasaki 13251-2006

ROD-ASSY-CONNECTING
(Superseded to 13251-6053)

$

$

Not available

49051

Kawasaki 49051-2002

SPLASHER

$

$

Not available

49119

Kawasaki 49119-6093

CRANKSHAFT-ASSY

$

$

Not available

59051

Kawasaki 59051-2293

GEAR-SPUR

$

$

Not available

59056

Kawasaki 59056-2019

GEAR-HELICAL

$

$

Not available

92002

Kawasaki 92001-2035

BOLT

$

$

Not available

92022

Kawasaki 92022-2026

WASHER

$

$

Not available

92025

Kawasaki 92026-2009

SHIM,T=1.05

$

$

Not available

92025A

Kawasaki 92026-2010

SHIM,T=1.10

$

$

Not available

92025B

Kawasaki 92026-2011

SHIM,T=1.20

$

$

Not available

92025C

Kawasaki 92026-2012

SHIM,T=1.30

$

$

Not available

92025D

Kawasaki 92026-2013

SHIM,T=1.40

$

$

Not available

92025E

Kawasaki 92026-2014

SHIM,T=1.50

$

$

Not available

92025F

Kawasaki 92026-2015

SHIM,T=1.60

$

$

Not available

92025G

Kawasaki 92026-2016

SHIM,T=1.70

$

$

Not available

92025H

Kawasaki 92026-2017

SHIM,T=1.80

$

$

Not available

92033

Kawasaki 92033-2007

RING-SNAP

$

$

Not available

92141

Kawasaki 92028-2002

BEARING-PLANE

$

$

Not available

92141A

Kawasaki 92028-2003

BEARING-PLANE

$

$

Not available

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+
