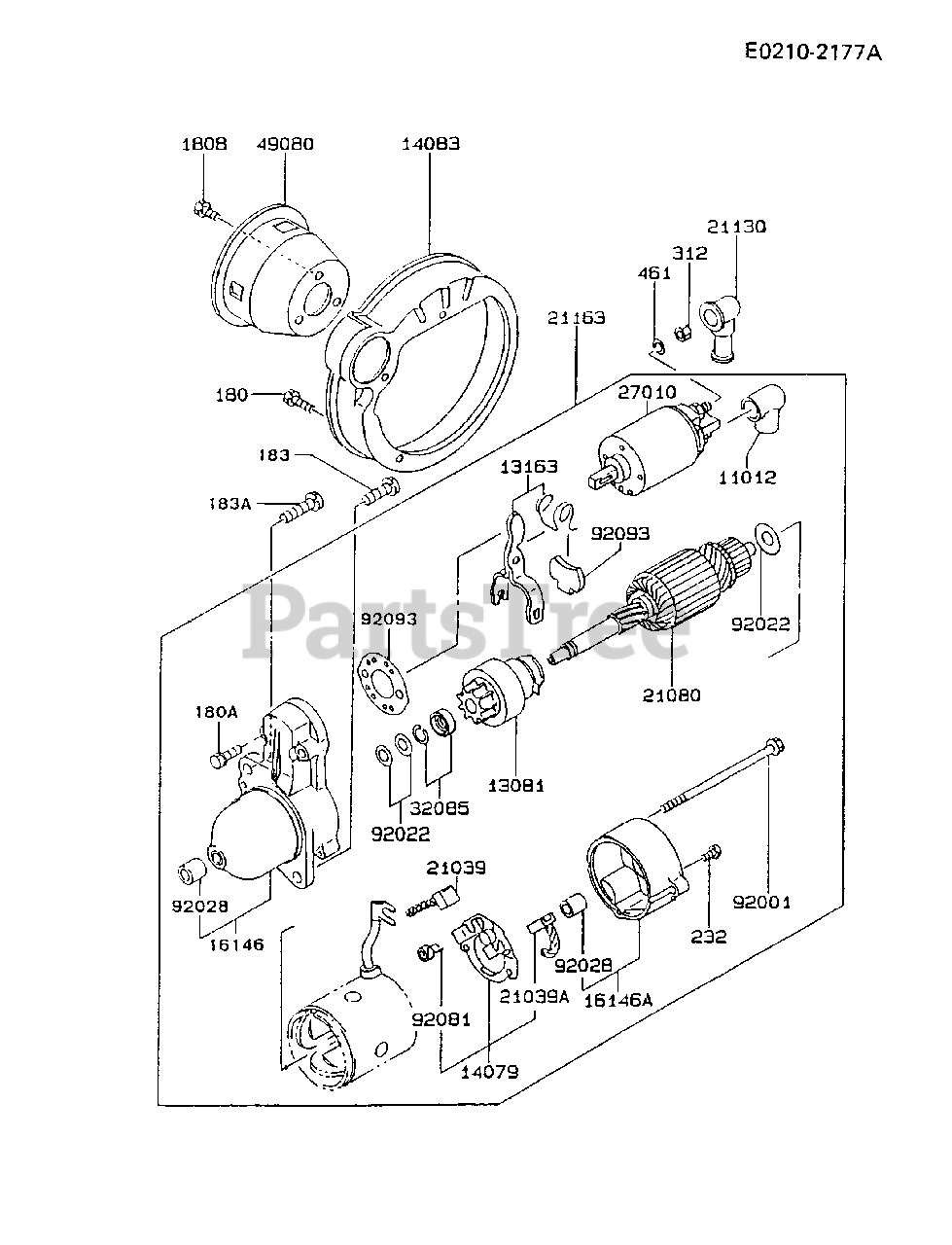

FZ340G-CS00 - Kawasaki Engine STARTER Parts Diagram

Engine

STARTER Parts Diagram

  • Title
11012

Kawasaki 11012-2028

CAP
(Superseded to 11012-2315)

$

$

Not available

13081

Kawasaki 13081-2005

CLUTCH-ASSY

$

$

Not available

13163

Kawasaki 13163-2002

LEVER-CHANGE SHAFT

$

$

Not available

14079

Kawasaki 14079-2004

HOLDER-ASSY

$

$

Not available

14083

Kawasaki 14083-2002

COVER-FLYWHEEL

$

$

Not available

16146

Kawasaki 16146-2003

COVER-ASSY

$

$

Not available

16146A

Kawasaki 16146-2010

COVER-ASSY

$

$

Not available

21039

$

$

Not available

21039A

$

$

Not available

21080

$

$

Currently unavailable

21130

Kawasaki 11012-2072

CAP-SPARK PLUG
(Superseded to 318891-8418-01)

$1.99

$

Usually ships in 2-5 days

0

21163

Kawasaki 21163-2055

STARTER-ELECTRIC
(Superseded to 21163-2110)

$

$

Not available

27010

$

$

Not available

32085

$

$

Not available

49080

Kawasaki 49080-2010

PULLEY-STARTING

$

$

Not available

92001

$

$

Not available

92022

$

$

Not available

92028

$8.49

$

Usually ships in 2-5 days

0

92081

$

$

Not available

92093

$

$

Not available

180

Kawasaki 180B0612

BOLT-UPSET-WS
(Superseded to 180AA0612)

$

$

Not available

180A

Kawasaki 180B0632

BOLT-UPSET-WS

$

$

Not available

180B

Kawasaki 180B0814

BOLT-UPSET-WS

$

$

Not available

183

Kawasaki 183B0825

BOLT-UPSET-WS-SMALL
(Superseded to 183AA0825)

$

$

Not available

183A

Kawasaki 183B0850

BOLT-UPSET-WS-SMALL

$

$

Not available

232

Kawasaki 232B0412

SCREW-PAN-WS+-
(Superseded to 223B0412A)

$4.49

$

Usually ships in 2-5 days

0

312

Kawasaki 312B0800

NUT-HEX
(Superseded to 318AA0800)

$0.99

$

In Stock, only 4 left!

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
