FZ340G-CS00 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

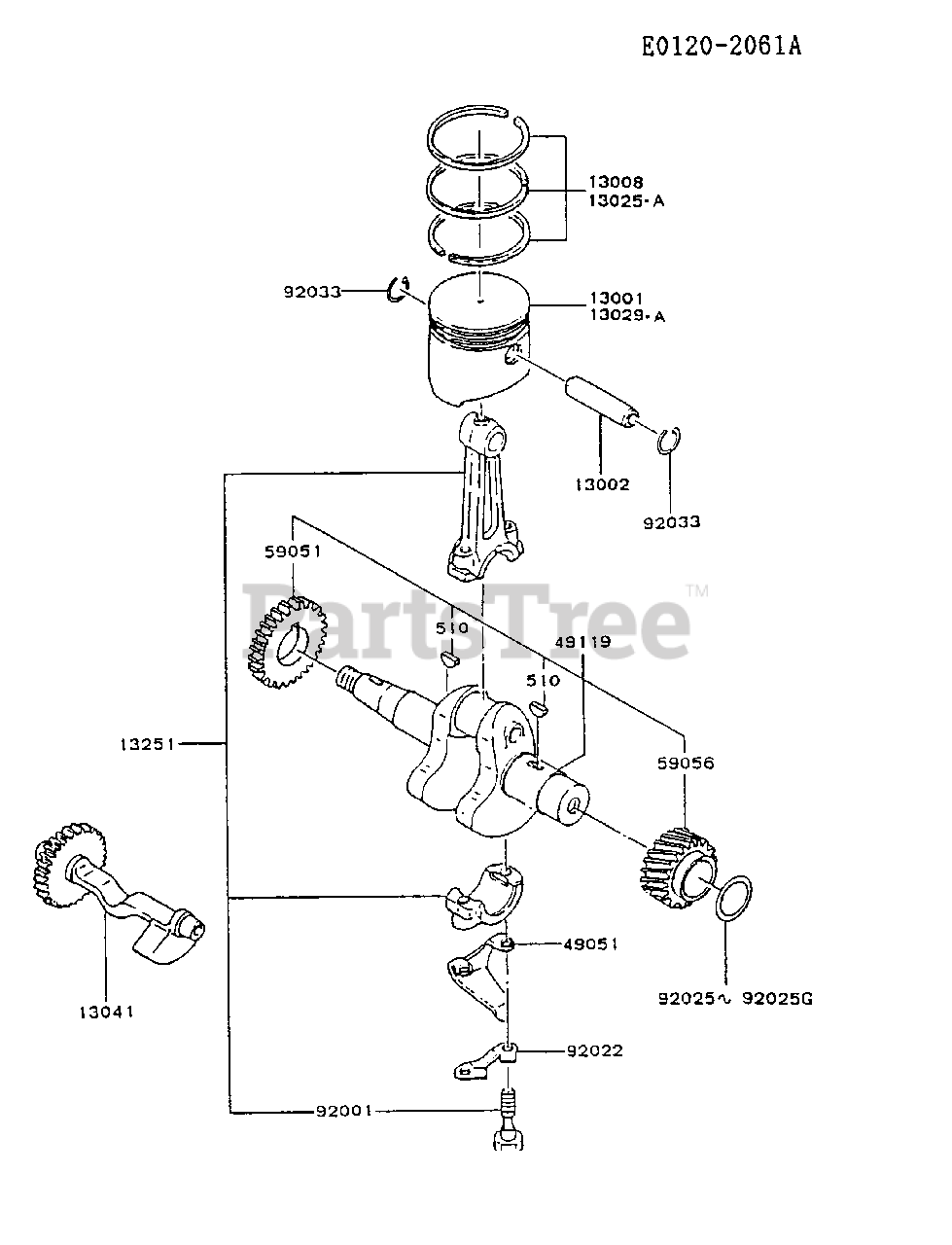

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001

Kawasaki 13001-2008

PISTON-ENGINE

$

$

Not available

13002

Kawasaki 13002-2008

PIN-PISTON

$

$

Not available

13008

Kawasaki 13008-2009

RING-SET-PISTON

$

$

Not available

13025

Kawasaki 13025-2015

RING-SET-PISTON L,0.25
(Superseded to 316600-3020A)

$

$

Not available

13025A

Kawasaki 13025-2016

RING-SET-PISTON L,0.50

$

$

Not available

13029

Kawasaki 13029-2015

PISTON-ENGINE L,0.25
(Superseded to 316600-3131A)

$

$

Not available

13029A

Kawasaki 13029-2016

PISTON-ENGINE L,0.50

$

$

Not available

13041

Kawasaki 13041-2002

BALANCER

$

$

Not available

13251

Kawasaki 13251-2007

ROD-ASSY-CONNECTING

$

$

Not available

49051

Kawasaki 49051-2003

SPLASHER
(Superseded to 316670-3249-00)

$

$

Not available

49119

Kawasaki 49119-6191

CRANKSHAFT-ASSY

$

$

Not available

59051

Kawasaki 59051-2292

GEAR-SPUR
(Superseded to 59051-2009)

$

$

Not available

59056

Kawasaki 59056-2017

GEAR-HELICAL

$

$

Not available

92001

Kawasaki 92001-2043

BOLT,CONNECTING ROD
(Superseded to 317101-3245-00)

$

$

Not available

92022

Kawasaki 92022-2033

WASHER

$

$

Not available

92025

Kawasaki 92026-2029

SHIM,T=1.05

$

$

Not available

92025A

Kawasaki 92026-2030

SHIM,T=1.10

$

$

Not available

92025B

Kawasaki 92026-2031

SHIM,T=1.20

$

$

Not available

92025C

Kawasaki 92026-2032

SHIM,T=1.30

$

$

Not available

92025D

Kawasaki 92026-2033

SHIM,T=1.40

$

$

Not available

92025E

Kawasaki 92026-2034

SHIM,T=1.50

$

$

Not available

92025F

Kawasaki 92026-2035

SHIM,T=1.60

$

$

Not available

92025G

Kawasaki 92026-2036

SHIM,T=1.70

$

$

Not available

92033

Kawasaki 92033-2008

RING-SNAP

$

$

Not available

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+
