FZ340G-CS00 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

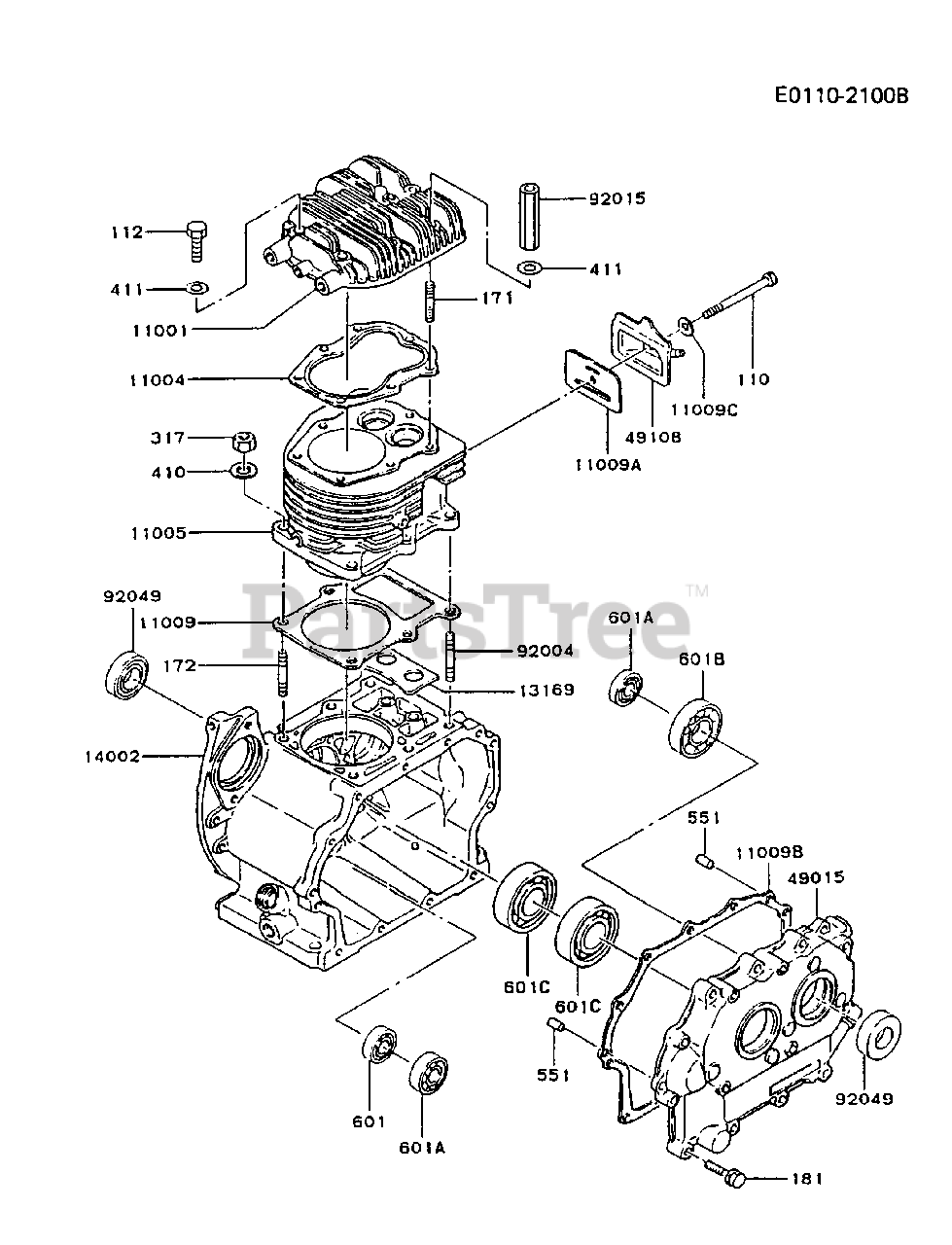

CYLINDER/CRANKCASE Parts Diagram

  • Title
11001

Kawasaki 11001-2088

HEAD-CYLINDER

$

$

Not available

11004

Kawasaki 11004-2064

GASKET-HEAD

$

$

Not available

11005

Kawasaki 98111-2001

CYLINDER-ENGINE

$

$

Not available

11009

$

$

Not available

11009A

$

$

Not available

11009B

Kawasaki 11009-2051

GASKET
(Superseded to 316670-4124-00)

$

$

Not available

11009C

Kawasaki 11009-2042

GASKET
(Superseded to 317472-1233A)

$

$

Not available

13169

$

$

Not available

14002

$

$

Not available

49015

Kawasaki 49015-2187

COVER-CRANKCASE

$

$

Not available

49108

Kawasaki 49108-2008

COVER-VALVE CHAMBER
(Superseded to 316670-1231B)

$

$

Not available

92004

Kawasaki 92004-2128

STUD
(Superseded to 172G1025)

$

$

Not available

$

$

Not available

92049

$

$

Not available

110

Kawasaki 110B0670

BOLT
(Superseded to 110G0670)

$2.99

$

Usually ships in 2-5 days

0

112

Kawasaki 112G0845

BOLT-UPSET

$

$

Not available

171

Kawasaki 171G0840

BOLT-STUD

$

$

Not available

172

Kawasaki 172G1025

BOLT-STUD

$

$

Not available

181

Kawasaki 181G0838

BOLT-UPSET-WP
(Superseded to 184G0835)

$8.49

$

Usually ships in 2-5 days

0

317

Kawasaki 317B1000

NUT-HEX-SMALL
(Superseded to 317AA1000)

$1.49

$

Usually ships in 2-5 days

0

410

Kawasaki 410B1000

W-PLAIN-S
(Superseded to 410AA1000)

$0.99

$

Usually ships in 2-5 days

0

411

Kawasaki 411B0800

WASHER-PLAIN
(Superseded to 411AA0800)

$0.99

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0814

PIN-DOWEL

$

$

Not available

601

Kawasaki 601A6202

BEARING-BALL
(Superseded to 601B6202)

$6.50

$

In Stock, only 1 left!

0

601A

Kawasaki 601A6203

BEARING,BALL
(Superseded to 92045-0119)

$15.99

$

Usually ships in 2-5 days

0

601B

Kawasaki 601A6206

BEARING-BALL
(Superseded to 601B6206)

$

$

Not available

601C

Kawasaki 601A6306

BEARING-BALL

$28.99

$

Usually ships in 2-5 days

0
