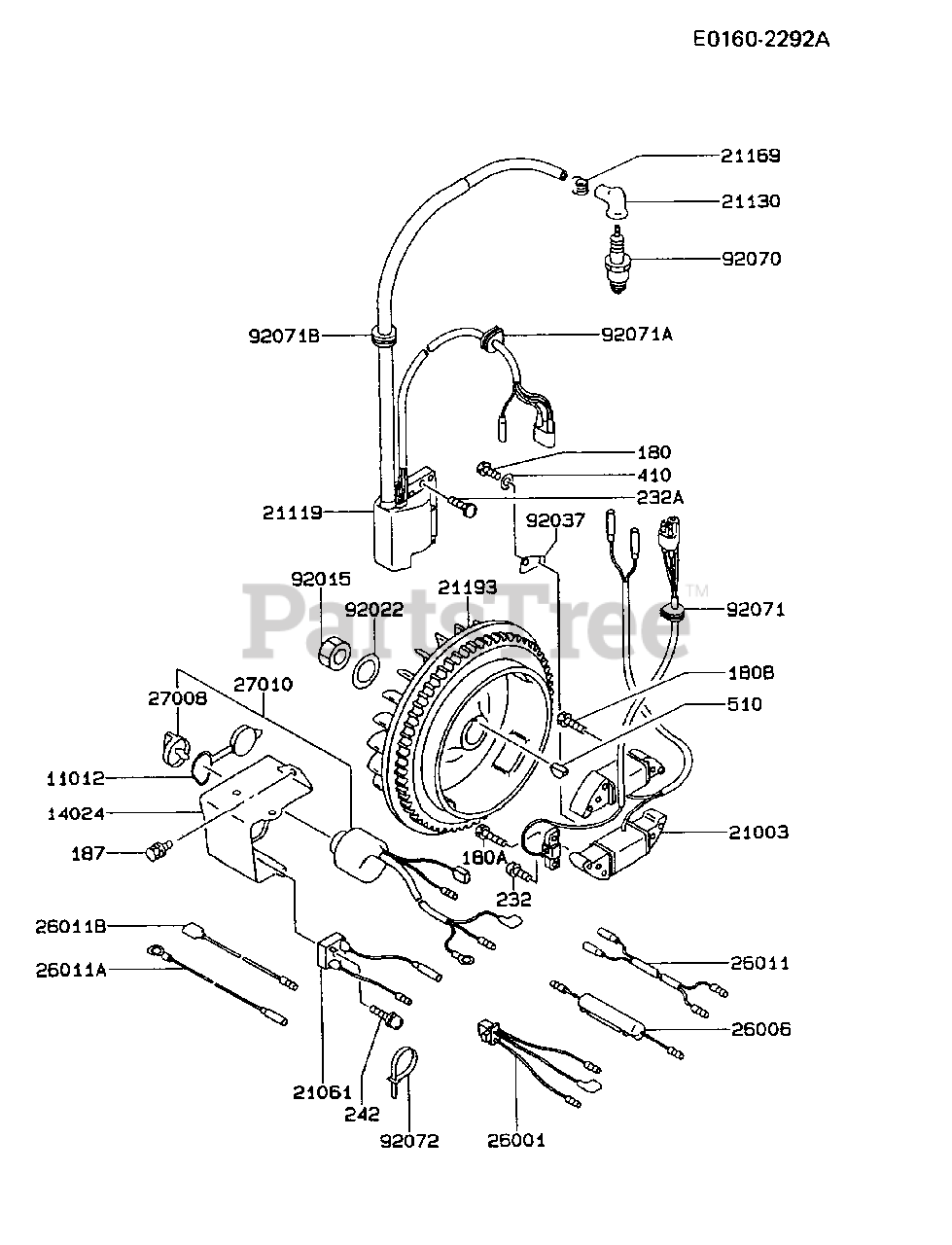

FZ340D-GS00 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

$

$

Not available

$

$

Not available

21003

Kawasaki 21003-2054

STATOR
(Superseded to 316614-8116A)

$190.99

$

In Stock, only 1 left!

0

21061

Kawasaki 21061-2060

RECTIFIER
(Superseded to 21061-2001)

$66.99

$

Usually ships in 2-5 days

0

21119

Kawasaki 21119-2070

IGNITER
(Superseded to 316614-8465B)

$

$

Not available

21130

Kawasaki 21130-2051

CAP-SPARK PLUG
(Superseded to 21130-2066)

$2.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

$

$

Not available

21193

Kawasaki 21193-6011

FLYWHEEL-ASSY

$

$

Not available

26001

$

$

Not available

26006

$

$

Not available

26011

$

$

Not available

26011A

$

$

Not available

26011B

$

$

Not available

27008

Kawasaki 27008-2051

KEY-LOCK
(Superseded to 317241-8321B)

$

$

Not available

27010

Kawasaki 27005-2005

SWITCH
(Superseded to 316462-8320A)

$

$

Not available

$

$

Not available

92022

Kawasaki 92022-2034

WASHER
(Superseded to 92022-2178)

$2.99

$

Usually ships in 2-5 days

0

92037

$

$

Not available

92070

Kawasaki 92070-2053

PLUG-SPARK,B6HS
(Superseded to B6HS)

Note: NGK

$3.49

$

Usually ships in 2-5 days

0

92071

$

$

Not available

92071A

$

$

Not available

92071B

$

$

Not available

92072

Kawasaki 92072-2001

BAND
(Superseded to 92072-2003)

$3.99

$

Usually ships in 2-5 days

0

180

Kawasaki 180B0612

BOLT-UPSET-WS
(Superseded to 180AA0612)

$

$

Not available

180A

Kawasaki 180B0630

BOLT-UPSET-WS
(Superseded to 180AA0630)

$4.99

$

Usually ships in 2-5 days

0

180B

Kawasaki 180B0635

BOLT-UPSET-WS
(Superseded to 180AA0635)

$2.49

$

In Stock, Qty 20+

0

187

Kawasaki 187B0612

BOLT-UPSET-WSP
(Superseded to 187AA0612)

$

$

Not available

232

Kawasaki 232B0414

SCREW-PAN-WS+-
(Superseded to 232AA0410)

$

$

Not available

232A

Kawasaki 232B0620

SCREW-PAN-WS+-

$

$

Not available

242

Kawasaki 242B0420

SCREW-PAN-WSP+-

$

$

Not available

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
