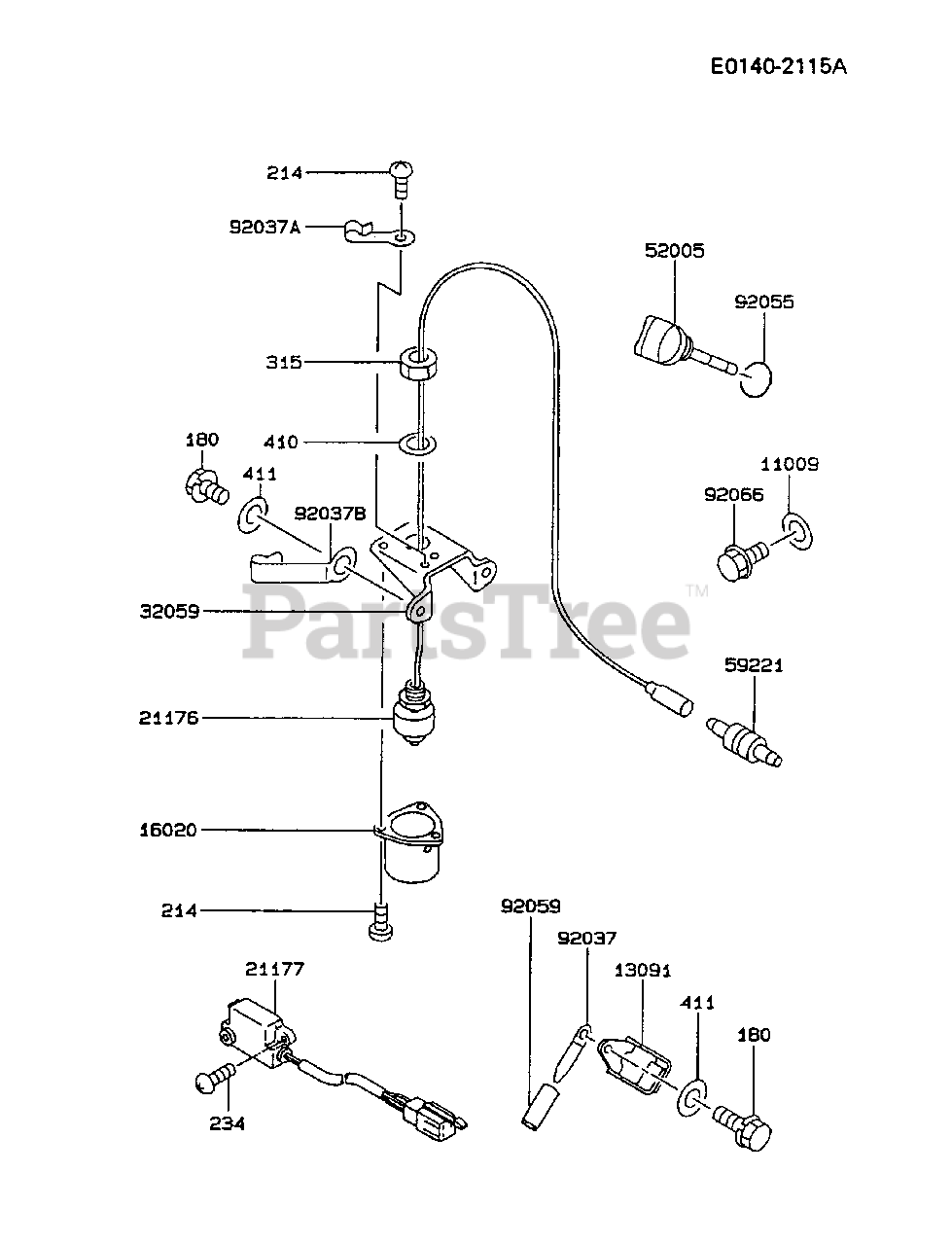

FZ340D-FS02 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2420

GASKET,DRAIN PLUG
(Superseded to 11009-2005)

$1.49

$

In Stock, only 4 left!

0

13091

$

$

Not available

16020

Kawasaki 16020-2093

CHAMBER-FLOAT

$

$

Not available

21176

Kawasaki 21176-2061

SENSOR
(Superseded to 21176-2054)

$64.99

$

Usually ships in 2-5 days

0

21177

Kawasaki 21177-2058

CONTROLLER

$

$

Not available

32059

Kawasaki 32059-2078

BRACKET-SWITCH

$

$

Not available

52005

$

$

Not available

59221

Kawasaki 59221-2009

CONNECTOR-CORD

$

$

Not available

92037

$

$

Not available

92037A

$6.49

$

Usually ships in 2-5 days

0

92037B

$1.99

$

Usually ships in 2-5 days

0

92055

Kawasaki 92055-2064

RING-O
(Superseded to 92055-2185)

$1.49

$

In Stock, only 2 left!

0

92059

Kawasaki 92059-2012

TUBE,5X6X55
(Superseded to 92190-2167)

$1.49

$

Usually ships in 2-5 days

0

92066

Kawasaki 92066-2099

PLUG,DRAIN

$15.99

$

In Stock, only 2 left!

0

180

Kawasaki 180B0614

BOLT-UPSET-WS
(Superseded to 180AA0614)

$5.49

$

Usually ships in 2-5 days

0

214

Kawasaki 214B0306

SCREW-PAN+-
(Superseded to 214AA0306)

$

$

Not available

234

Kawasaki 234B0514

SCREW-PAN-WSP+-
(Superseded to 234AA0514)

$0.99

$

Usually ships in 2-5 days

0

315

Kawasaki 315B1200

NUT-HEX-FINE
(Superseded to 315AA1200)

$1.49

$

Usually ships in 2-5 days

0

410

Kawasaki 410B1200

W-PLAIN-S
(Superseded to 410AA1200)

$0.99

$

Usually ships in 2-5 days

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0
