FZ340D-CS06 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

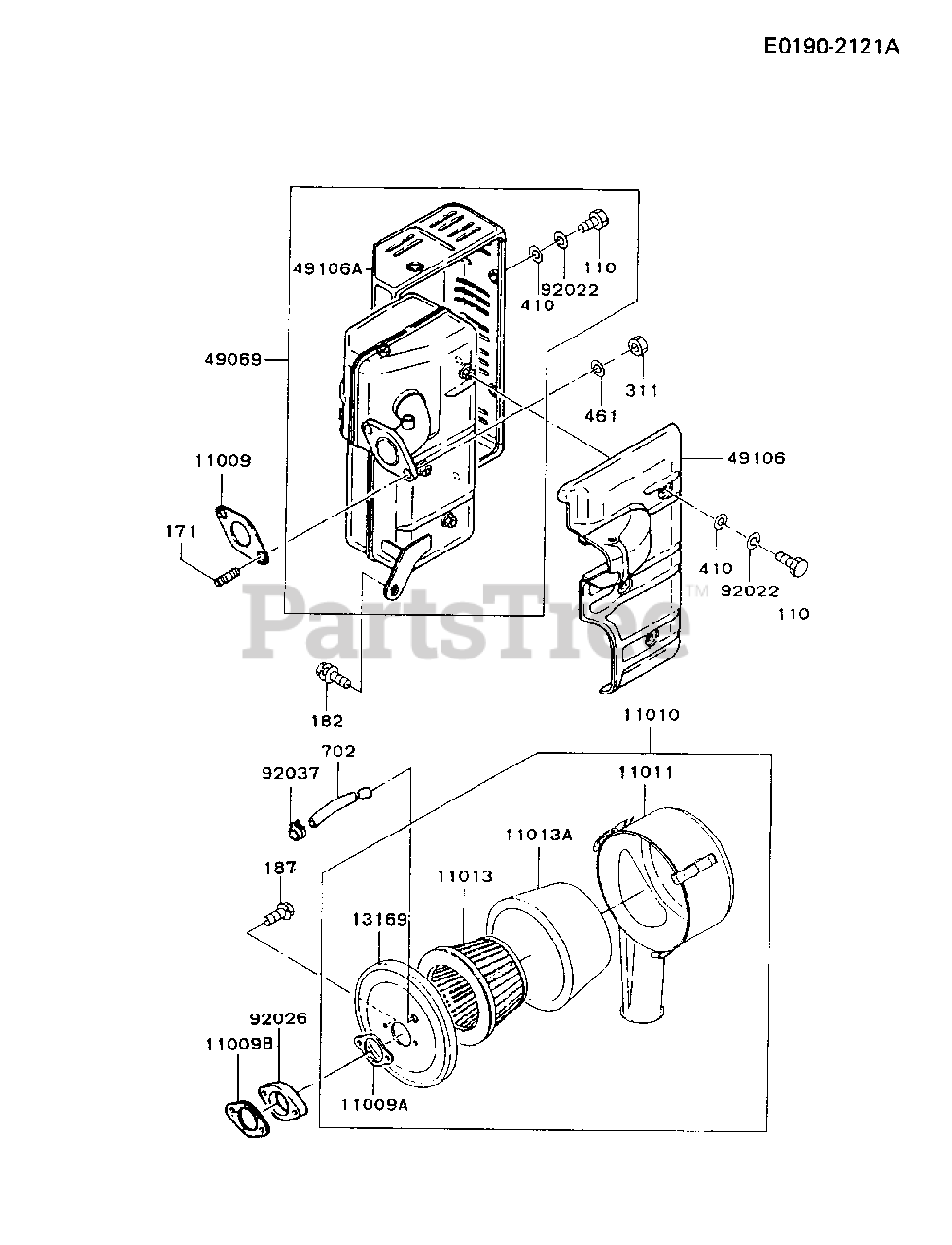

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

Kawasaki 11009-2147

GASKET,MUFFLER
(Superseded to 11009-2168)

$

$

Not available

11009A

$

$

Not available

11009B

$

$

Not available

11010

Kawasaki 11010-2145-9H

FILTER-ASSY-AIR
(Superseded to 11010-2065-9H)

$146.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 11012-2027

CASE-AIR FILTER
(Superseded to 3166YG-1316A)

$

$

Not available

11013

Kawasaki 49064-2006

ELEMENT-AIR FILTER

$

$

Not available

11013A

Kawasaki 49064-2007

ELEMENT-AIR FILTER
(Superseded to 316670-1314-00)

$

$

Not available

$

$

Not available

49069

Kawasaki 49069-6134

MUFFLER-ASSY

$

$

Currently unavailable

49106

Kawasaki 49106-2010-9Y

COVER-MUFFLER

$

$

Not available

49106A

Kawasaki 49106-2174-9Y

COVER-MUFFLER

$

$

Not available

92022

$

$

Not available

92026

$

$

Not available

92037

Kawasaki 92037-2074

CLAMP
(Superseded to 92170-2042)

$1.49

$

In Stock, Qty 15

0

$2.99

$

Usually ships in 2-5 days

0

171

Kawasaki 171G0822

BOLT-STUD
(Superseded to 171BA0822)

$1.99

$

Usually ships in 2-5 days

0

182

Kawasaki 182B0820

BOLT-UPSET-WSP

$

$

Not available

187

Kawasaki 187B0628

BOLT-UPSET-WSP

$

$

Not available

311

$

$

Not available

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

702

Kawasaki 702A071000

TUBE-RUBBER
(Superseded to 92059-1519)

$14.99

$

Usually ships in 2-5 days

0
