FYX 850 E - Electrolux/AYP Tiller HANDLE ASSEMBLY Parts Diagram

Tiller

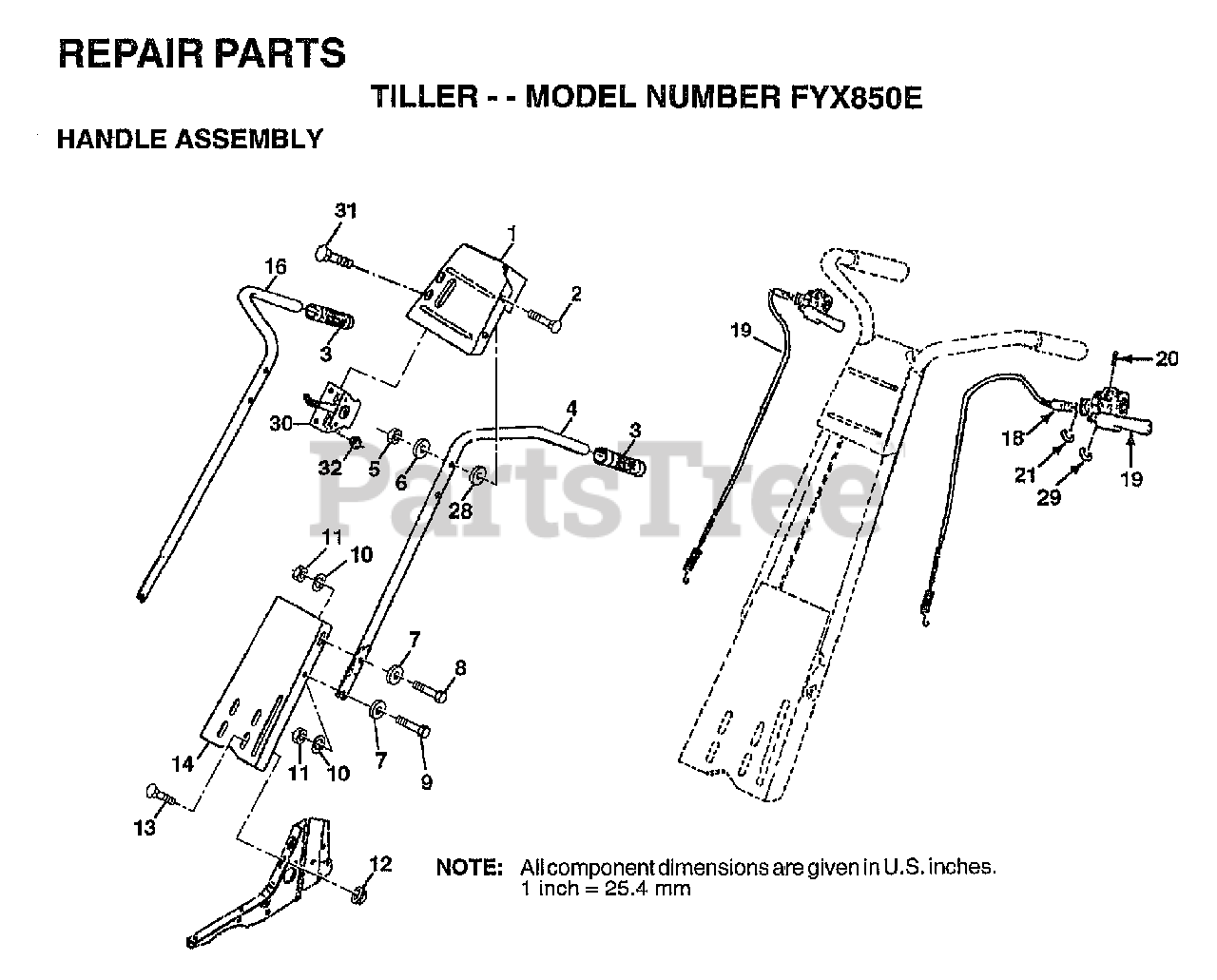

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Electrolux/AYP 127046X505

BRACKET.HANDLE

$7.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140512

BOLT
(Superseded to 582736101)

$

$

Not available

3

Electrolux/AYP 9266R

SUB= 624A78

$

$

Not available

4

Electrolux/AYP 166376

HANDLE.LH
(Superseded to 532446013)

$46.99

$

Usually ships in 3-10 days

0

5

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74760516

SUB= 77394

$

$

Not available

9

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

13

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 2626J505

"PANEL, HANDLE"
(Superseded to 583730701)

$7.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 166381

HANDLE.RH.DOUBLE.BEND

$12.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 166868

CABL.CLUTCH.49.88
(Superseded to 583021801)

$24.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 151229

LEVER CONTRL TINE
(Superseded to 584447601)

$37.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 154805

"PIN PIVOT,GROOVED"
(Superseded to 584448301)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 12000027

E-RING
(Superseded to 812000027)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

29

Electrolux/AYP 12000059

RETAINER RING
(Superseded to 582730101)

$6.49

$

In Stock, only 3 left!

0

30

Electrolux/AYP 157346

CONTROL THROTTLE

$9.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 71191008

SCREW.PNHD.10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 73731000

NUT

$2.49

$

Usually ships in 3-10 days

0
