FYX 850 E - Electrolux/AYP Tiller BELT GUARD AND PULLEY ASSEMBLY Parts Diagram

Tiller

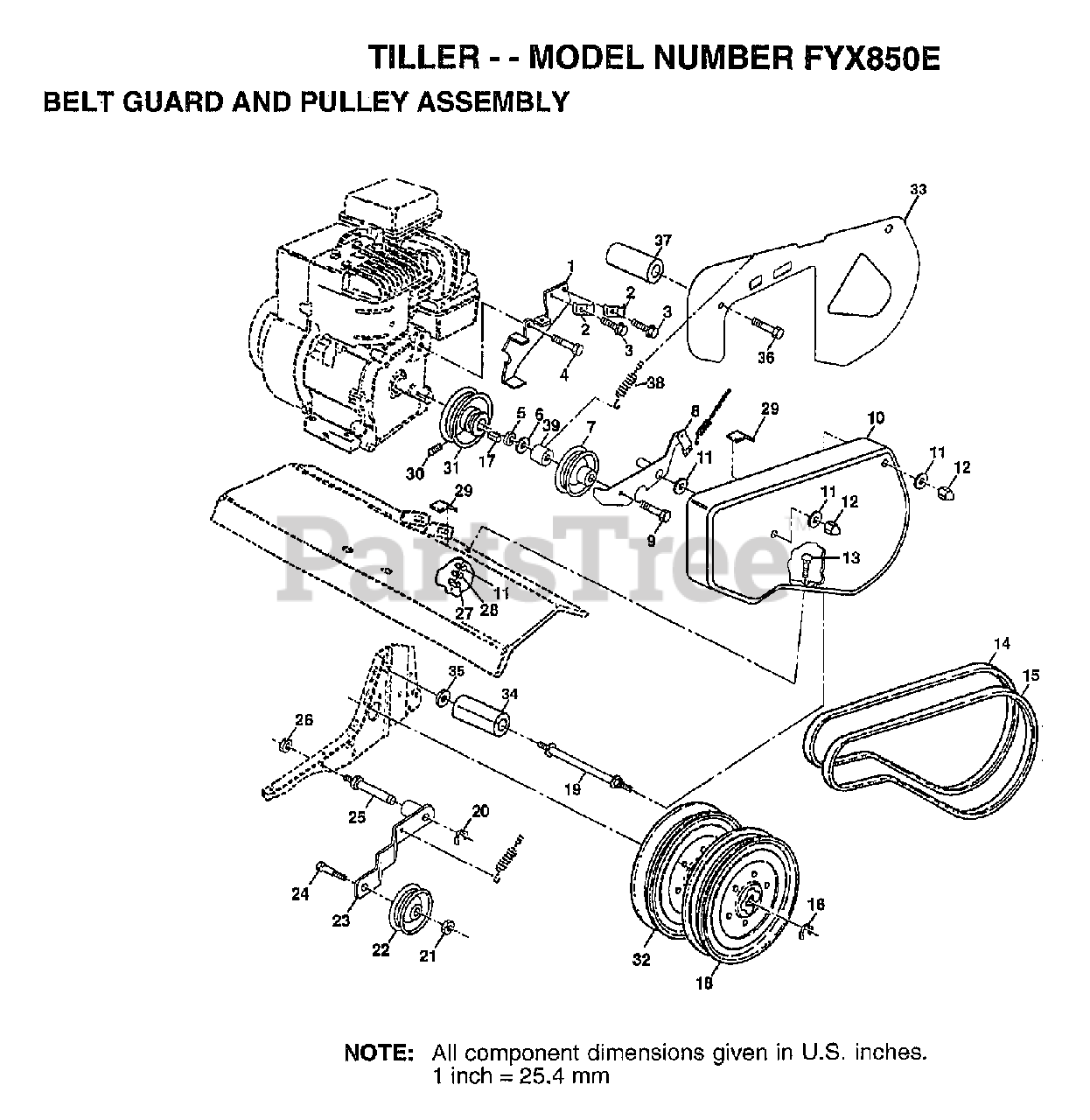

BELT GUARD AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

Electrolux/AYP 166013

ASSY.BRKT.BELT GUARD

$

$

Not available

2

Electrolux/AYP 9484R

CONDIUT CLIP T
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

3

Electrolux/AYP 86777

SUB= 750097
(Superseded to 532086777)

$

$

Not available

4

Electrolux/AYP 74610812

BOLT.HEX.HEAD
(Superseded to 583614001)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 73660600

NUTLOCK 3/8-16
(Superseded to 583612201)

$2.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 2009J

PULLEY W/SPACER
(Superseded to 583728401)

$17.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 159238

ASSY ARM REV.IDLR

$12.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 74760628

BOLT

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 156705X505

"GUARD,BELT"

$13.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 104213X

NUT-CAP TI
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 72140405

BOLT T
(Superseded to 872140405)

$7.49

$

In Stock, Qty 7

0

14

Electrolux/AYP 133035

BELT-V
(Superseded to 532133035)

$42.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 2614J

SUB= TH3H440
(Superseded to 599385301)

$17.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

17

Electrolux/AYP 2649M

KEY T
(Superseded to 532002649)

$6.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 151223

SHEAVE.TRANS
(Superseded to 532151223)

$39.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 110550X

BOLT TI
(Superseded to 583660201)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 12000036

KLIP RING TI
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 161806

"PULLEY,IDLER"
(Superseded to 532161806)

$31.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 162290

"ARM, IDLER"
(Superseded to 583005201)

$5.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 106968X

SHAFT IDLER TI
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73350500

JAM NUT TI
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 23200404

SET SCREW
(Superseded to 583610201)

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 101189L

ENGINE PULLEY TI
(Superseded to 532101189)

$66.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 151236

"SHEAVE,TRANS.""D"""
(Superseded to 532151236)

$34.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 159234

"SHIELD,BELT GUARD"

$14.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 156141

SPACER.SPLIT

$2.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 74330516

BOLT.5/16X24X1
(Superseded to 583612901)

$5.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 156118

SPACER.SPLIT

$2.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 128085

"SPRING,EXT"
(Superseded to 532128085)

$

$

Not available

39

Electrolux/AYP 138909

SPACER.500X384X23
(Superseded to 532138909)

$4.99

$

Usually ships in 3-10 days

0
