FY 850 J - Electrolux/AYP Tiller (2000) Belt Guard And Pulley Assembly Parts Diagram

Tiller

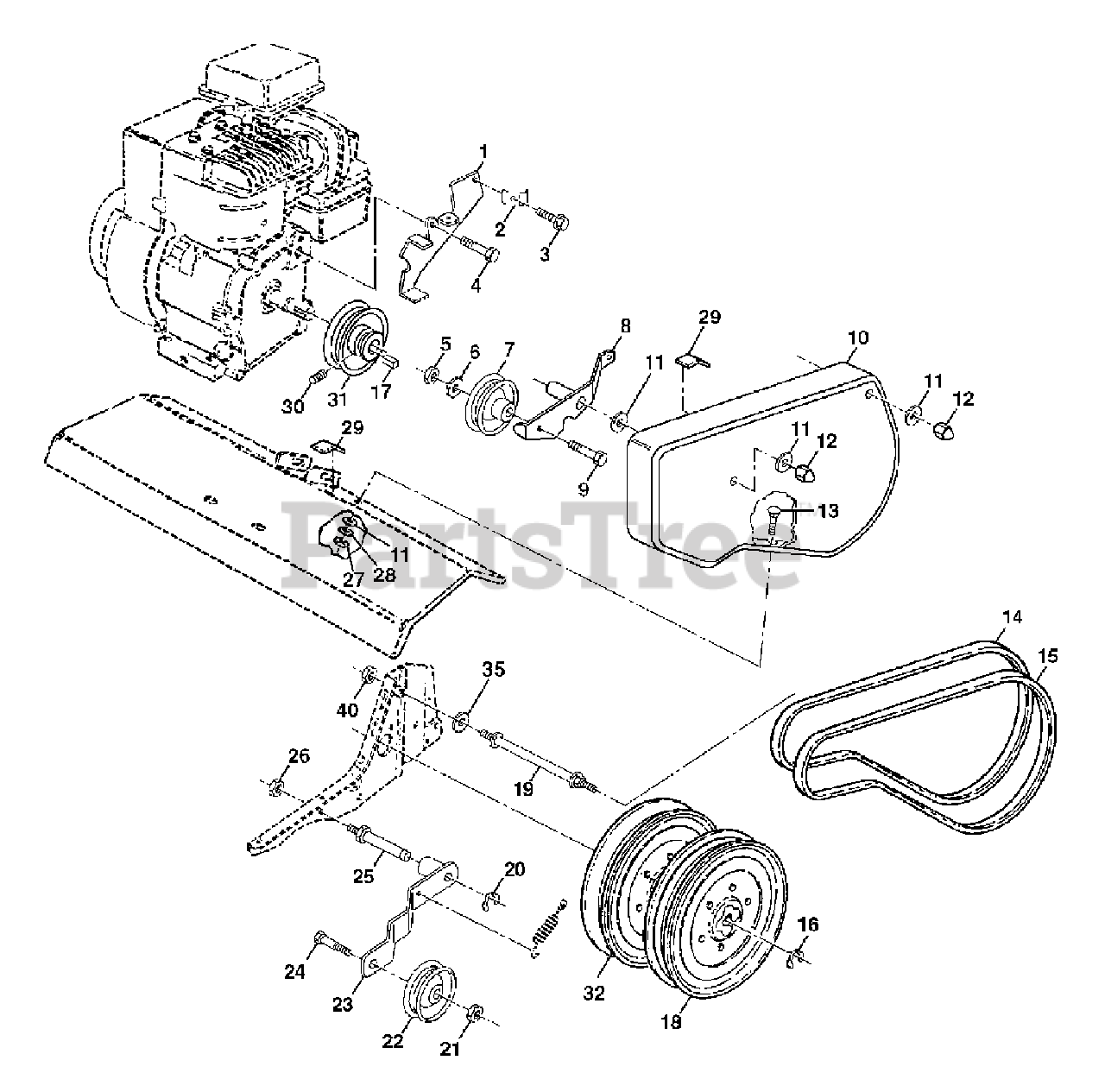

Belt Guard And Pulley Assembly Parts Diagram

  • Title

1

Electrolux/AYP 166013

Assembly, Bracket, Belt Guard

$

$

Not available

2

Electrolux/AYP 9484R

Clip, Cable
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

3

Electrolux/AYP 86777

Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D
(Superseded to 532086777)

$

$

Not available

4

Electrolux/AYP 74610812

Bolt, fin Hex 1/2-20 x 3/4
(Superseded to 583614001)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 73220600

Nut, Hex 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 2009J

Pulley, Idler, Reverse
(Superseded to 583728401)

$17.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 127180X

Assembly, Arm, Reverse Idler
(Superseded to 583673101)

$11.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 74760628

Bolt, Hex 3/8-16 x 1-3/4

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 156705X505

Guard, Belt

$13.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 19091016

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 104213X

Nut, Cap 1/4-20
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 72140406

Bolt, Carriage 1/4-20 x 3/4
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 133035

V-Belt (Forward Motion)
(Superseded to 532133035)

$42.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 2614J

V-Belt (Reverse)
(Superseded to 599385301)

$17.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 12000028

Ring, Retainer
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

17

Electrolux/AYP 2649M

Key, Square
(Superseded to 532002649)

$6.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 151236

Sheave, Transmission, Flat Rev.
(Superseded to 532151236)

$34.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 110550X

Bolt, Belt Guard
(Superseded to 583660201)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 12000036

Ring, Klip
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 73350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 161806

Pulley, Idler
(Superseded to 532161806)

$31.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 162290

Arm, Idler
(Superseded to 583005201)

$5.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 74760620

Bolt, Hex 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 106968X

Shaft, Idler Arm
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73350500

Nut, Hex, Jam 5/16-18
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 73220400

Nut, Fin Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 10040400

Washer Lock Hvy Helical 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 109227X

Pad, Idler
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 23200404

Screw, Set , Socket, Headless C.P. 1/4-20 x 1/4
(Superseded to 583610201)

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 101189L

Sheave, Engine
(Superseded to 532101189)

$66.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 151223

Sheave, Transmission "D"
(Superseded to 532151223)

$39.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

40

Murray 73510400

Nut Keps Hex 1/4-20
(Superseded to 873640400)

$

$

Not available
