FY 850 H - Electrolux/AYP Tiller (1999) WHEEL AND DEPTH STAKE ASSEMBLY Parts Diagram

Tiller

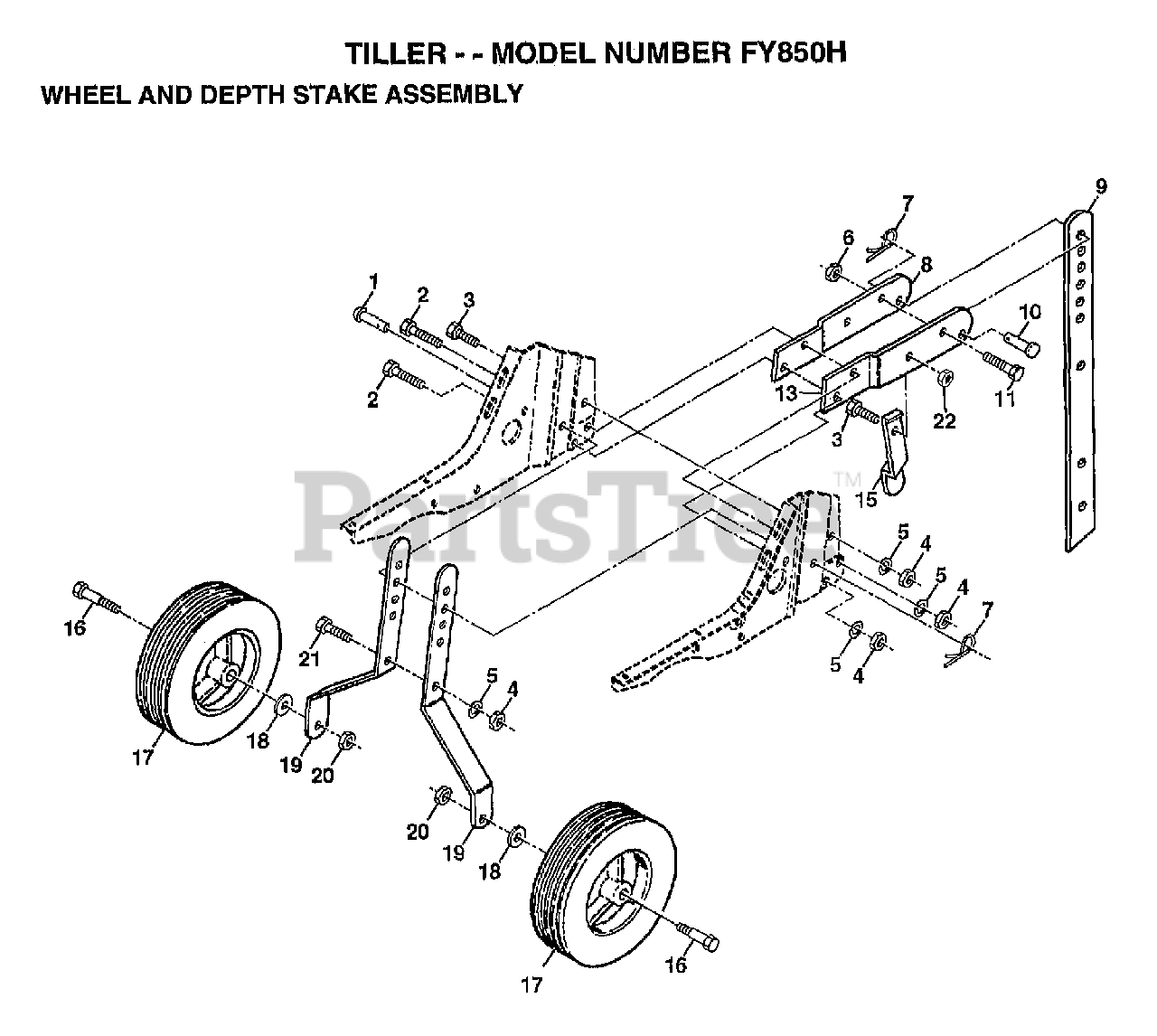

WHEEL AND DEPTH STAKE ASSEMBLY Parts Diagram

  • Title

1

Electrolux/AYP 9194R

DRILLED RIVET RT
(Superseded to 532443676)

$13.99

$

In Stock, Qty 13

0

2

Electrolux/AYP 74760520

BOLT

$2.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 1952J

SUB= 1952J500

$

$

Not available

9

Electrolux/AYP 122233X

SUB= 2582J
(Superseded to 532446066)

$53.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 326J

SUB= 4929H

$

$

Not available

11

Electrolux/AYP 74780628

BOLT
(Superseded to 582740701)

$6.49

$

In Stock, only 2 left!

0

13

Electrolux/AYP 1951J

SUB= 1951J500

$

$

Not available

15

Electrolux/AYP 5388J

STAKE SPRING TI
(Superseded to 532124724)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 121117X

BOLT SHOULDER
(Superseded to 532121117)

$8.99

$

In Stock, Qty 5

0

17

Electrolux/AYP 9188R

SUB= 107644X

$

$

Not available

18

Electrolux/AYP 19131311

WASHER
(Superseded to 582732401)

$6.99

$

In Stock, Qty 12

0

19

Electrolux/AYP 9190R

SUB= 9190R500

$

$

Not available

20

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74760516

SUB= 77394

$

$

Not available

22

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
