FXT00V-HS00 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

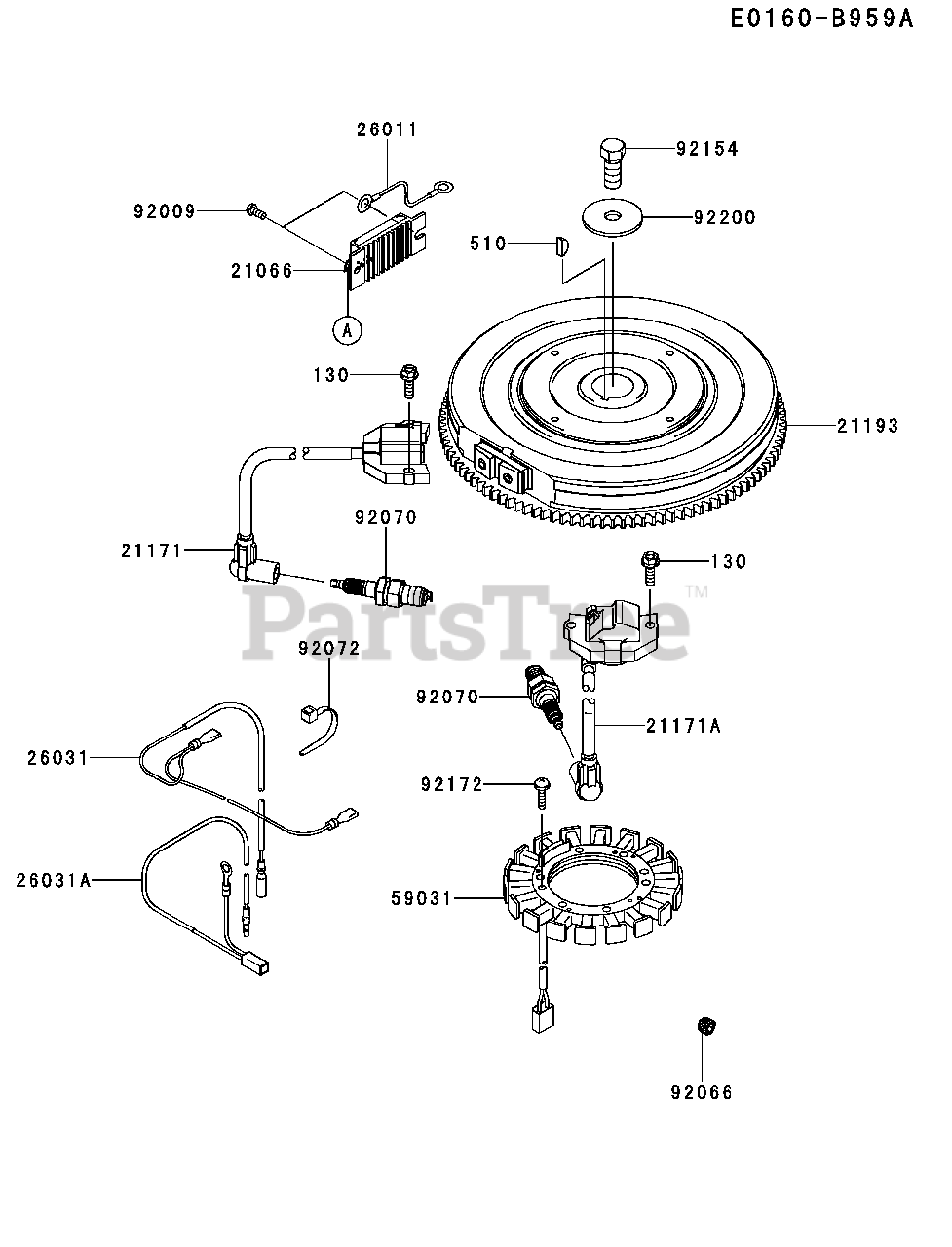

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 210660740

REGULATOR-VOLTAGE

$

$

Not available

21171

Kawasaki 211710743

COIL-ASSY-IGNITION

$77.99

$

In Stock, Qty 20+

0

21171A

Kawasaki 211710744

COIL-ASSY-IGNITION

$77.99

$

Usually ships in 2-5 days

0

21193

Kawasaki 211930018

FLYWHEEL-ASSY
(Superseded to 21193-0707)

$321.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 260112234

WIRE-LEAD

$2.49

$

In Stock, only 3 left!

0

26031

Kawasaki 260317033

HARNESS

$6.99

$

In Stock, Qty 5

0

26031A

Kawasaki 260317034

HARNESS

$8.99

$

In Stock, Qty 9

0

59031

Kawasaki 590317017

COIL-CHARGING

$127.99

$

In Stock, Qty 6

0

92009

Kawasaki 920092308

SCREW

$0.99

$

In Stock, Qty 6

0

92066

Kawasaki 920660881

PLUG

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-2088

PLUG-SPARK,BPR5ES,SOLID
(Superseded to BPR5ES)

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 920727003

BAND

$1.49

$

In Stock, only 3 left!

0

92154

Kawasaki 921547003

BOLT,12X30

$4.99

$

In Stock, only 1 left!

0

92172

Kawasaki 921727018

SCREW,5X20

$0.99

$

In Stock, Qty 9

0

92200

Kawasaki 922007040

WASHER,12.2X46X3

$3.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 11

0
