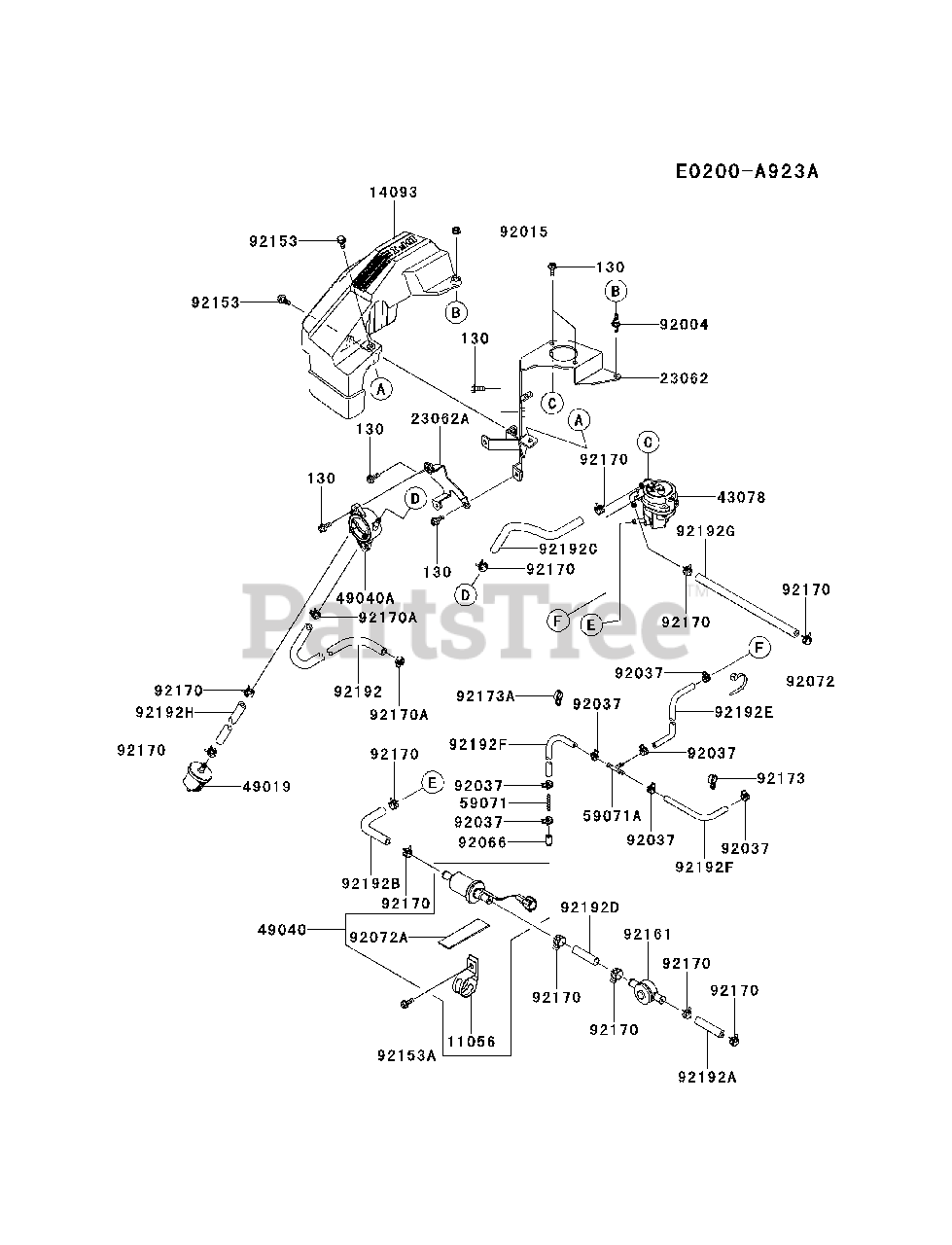

FXT00V-AS17 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title
11056

$5.49

$

Usually ships in 2-5 days

0

14093

$19.99

$

Usually ships in 2-5 days

0

23062

Kawasaki 23062-0772

BRACKET-COMP

$83.99

$

Usually ships in 2-5 days

0

23062A

Kawasaki 23062-7020

BRACKET-COMP

$6.49

$

Usually ships in 2-5 days

0

43078

Kawasaki 43078-0565

RESERVOIR
(Superseded to 43078-0560)

$416.99

$

Usually ships in 2-5 days

0

49019

Kawasaki 49019-7001

FILTER-FUEL
(Superseded to 49019-0027)

$9.99

$

In Stock, Qty 20+

0

49040

$232.99

$

Usually ships in 2-5 days

0

49040A

$

$

Not available

59071

$3.99

$

Usually ships in 2-5 days

0

59071A

$3.49

$

Usually ships in 2-5 days

0

92004

$1.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92037

Kawasaki 92037-1461

CLAMP,TUBE

$4.49

$

Usually ships in 2-5 days

0

92066

$5.49

$

In Stock, Qty 14

0

92072

Kawasaki 92072-0715

BAND,3.5X205

$0.99

$

In Stock, only 1 left!

0

92072A

$2.49

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7007

BOLT,FLANGED,6X16

$4.49

$

In Stock, Qty 20+

0

92153A

$

$

Not available

92161

$13.99

$

Usually ships in 2-5 days

0

92170

$

$

Not available

92170A

$

$

Not available

92173

$1.99

$

Usually ships in 2-5 days

0

92173A

$0.99

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-1183

TUBE,6.4X12.7X395

$3.49

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-1208

TUBE,6.35X12.7X42
(Superseded to 92192-1544)

$0.99

$

Usually ships in 2-5 days

0

92192B

Kawasaki 92192-1222

TUBE,6.35X12.7X112
(Superseded to 92192-1535)

$1.49

$

Usually ships in 2-5 days

0

92192C

Kawasaki 92192-1223

TUBE,6.35X12.7X223
(Superseded to 92192-1536)

$

$

Not available

92192D

Kawasaki 92192-1267

TUBE,6.35X12.7X60.8

$5.99

$

Usually ships in 2-5 days

0

92192E

Kawasaki 92192-1331

TUBE,4.76X8.74X380

$3.49

$

Usually ships in 2-5 days

0

92192F

Kawasaki 92192-1332

TUBE,4.76X8.74X120

$1.49

$

Usually ships in 2-5 days

0

92192G

Kawasaki 92192-7177

TUBE,6.35X12.7X230
(Superseded to 92192-1537)

$

$

Not available

92192H

Kawasaki 92192-7178

TUBE,6.35X12.7X255
(Superseded to 92192-1557)

$

$

Not available

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 2 left!

0
