FXT00V-AS01 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

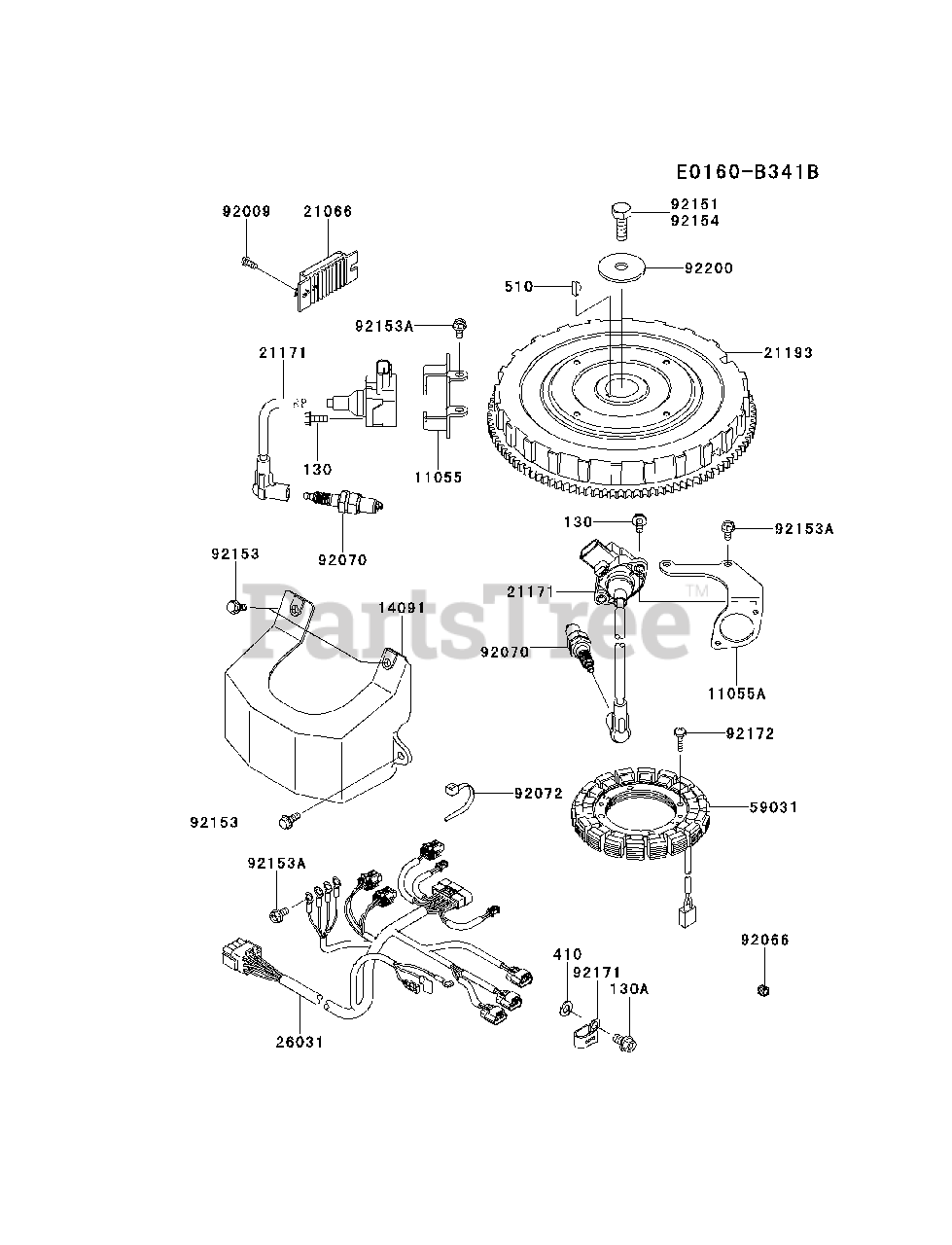

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11055

Kawasaki 11055-7018-9H

BRACKET,#1 IGNITION

$10.99

$

Usually ships in 2-5 days

0

11055A

Kawasaki 11055-7019-9H

BRACKET,#2 IGNITION

$8.99

$

Usually ships in 2-5 days

0

14091

Kawasaki 14091-7065

COVER,CONNECTOR

$12.99

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-7011

REGULATOR-VOLTAGE
(Superseded to 21066-7001)

$77.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-7044

COIL-ASSY-IGNITION
(Superseded to 99999-0476)

$

$

Not available

21193

Kawasaki 21193-7039

FLYWHEEL-ASSY
(Superseded to 99999-7081)

$342.99

$

Usually ships in 2-5 days

0

26031

Kawasaki 26031-7042

HARNESS

$527.99

$

Usually ships in 2-5 days

0

59031

Kawasaki 59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-2088

PLUG-SPARK,BPR5ES,SOLID
(Superseded to BPR5ES)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

BOLT

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92171

Kawasaki 92171-7008

CLAMP

$1.99

$

In Stock, Qty 5

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7040

WASHER,12.2X46X3

$3.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0616

BOLT-FLANGED,6X16
(Superseded to 130B0616)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130AA0814

BOLT-FLANGED,8X14
(Superseded to 130B0814)

$

$

Not available

410

Kawasaki 410AA0800

W-PLAIN-S,8MM
(Superseded to 917148)

$

$

Not available

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
