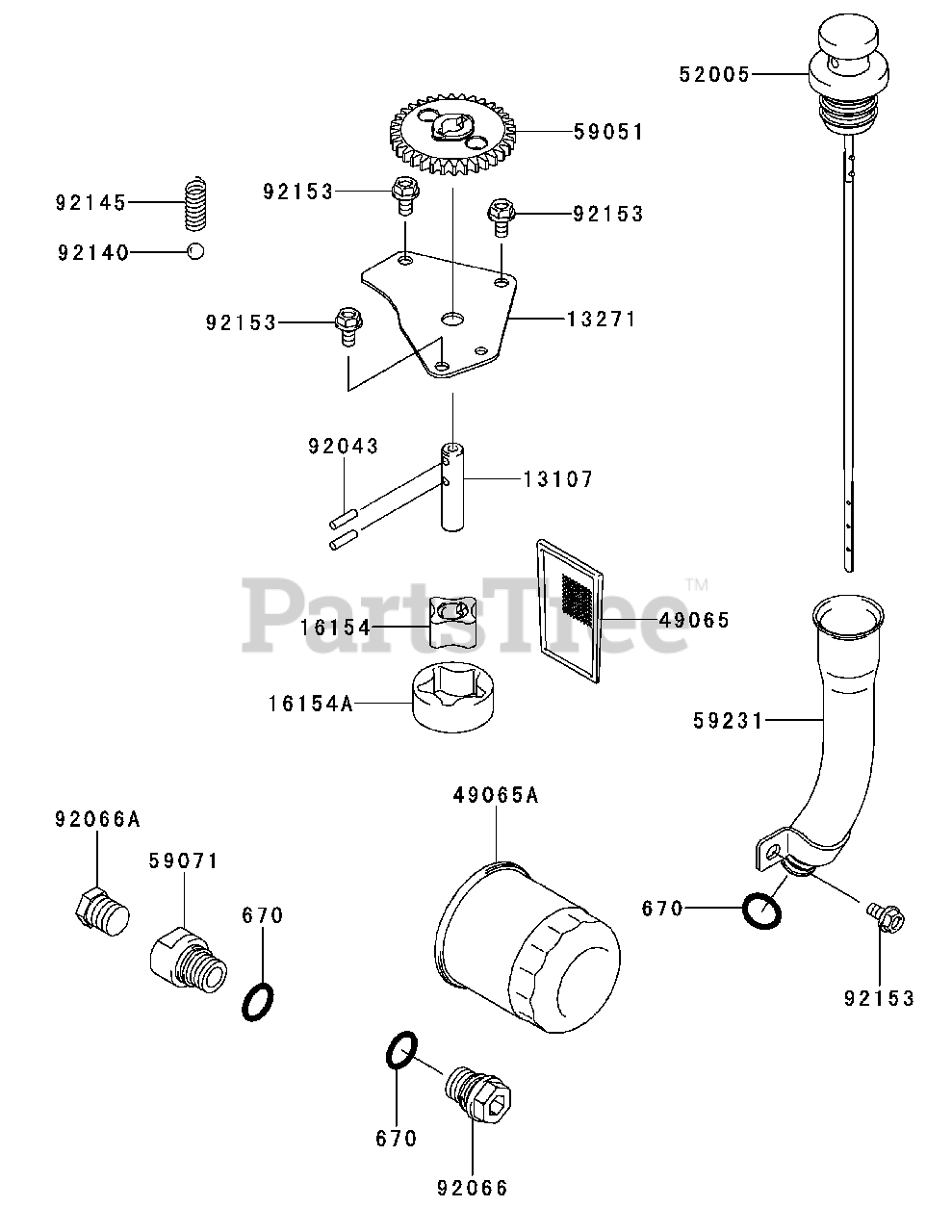

FXT00-S09 - Kawasaki Engine Lubrication Equipment Parts Diagram

Engine

Lubrication Equipment Parts Diagram

  • Title

13107

Cub Cadet KM-13107-7009

Shaft
(Superseded to KM-13107-0858)

$2.49

$

In Stock, only 3 left!

0

13271

Cub Cadet KM-13271-7034

Plate, Rotor-Pump

$3.99

$

Usually ships in 2-5 days

0

16154

Cub Cadet KM-16154-7007

Rotor-Pump, In

$8.49

$

In Stock, Qty 6

0

16154A

Cub Cadet KM-16154-7008

Rotor-Pump, Out

$19.99

$

In Stock, only 3 left!

0

49065

Cub Cadet KM-49065-7004

Filter-Oil
(Superseded to KM-49065-0718)

$4.99

$

In Stock, Qty 20+

0

49065A

Cub Cadet KM-49065-7010

Filter-Oil
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

52005

Cub Cadet KM-52005-7023

Gauge

$42.99

$

Usually ships in 2-5 days

0

59051

Cub Cadet KM-59051-7026

Gear-Spur, Oil-Pump

$60.99

$

Usually ships in 2-5 days

0

59071

Cub Cadet KM-59071-7023

Joint

$8.99

$

In Stock, Qty 11

0

59231

Cub Cadet KM-59231-7012

Filler

$54.99

$

Usually ships in 2-5 days

0

92043

Cub Cadet KM-92043-7003

Pin
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 11

0

92066

Cub Cadet KM-92066-7003

Plug
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 20+

0

92066A

Cub Cadet KM-92066-7006

Plug
(Superseded to KM-92066-0827)

$1.49

$

In Stock, only 3 left!

0

92140

Cub Cadet KM-92140-7003

Ball

$1.49

$

In Stock, Qty 13

0

92145

Cub Cadet KM-92145-7046

Spring

$0.99

$

Usually ships in 2-5 days

0

92153

Cub Cadet KM-92153-7043

Bolt, 6X12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

670

Cub Cadet KM-670D2016

O Ring, 16Mm

$1.99

$

In Stock, Qty 20+

0
