FXT00-S09 - Kawasaki Engine Carburetor Parts Diagram

Engine

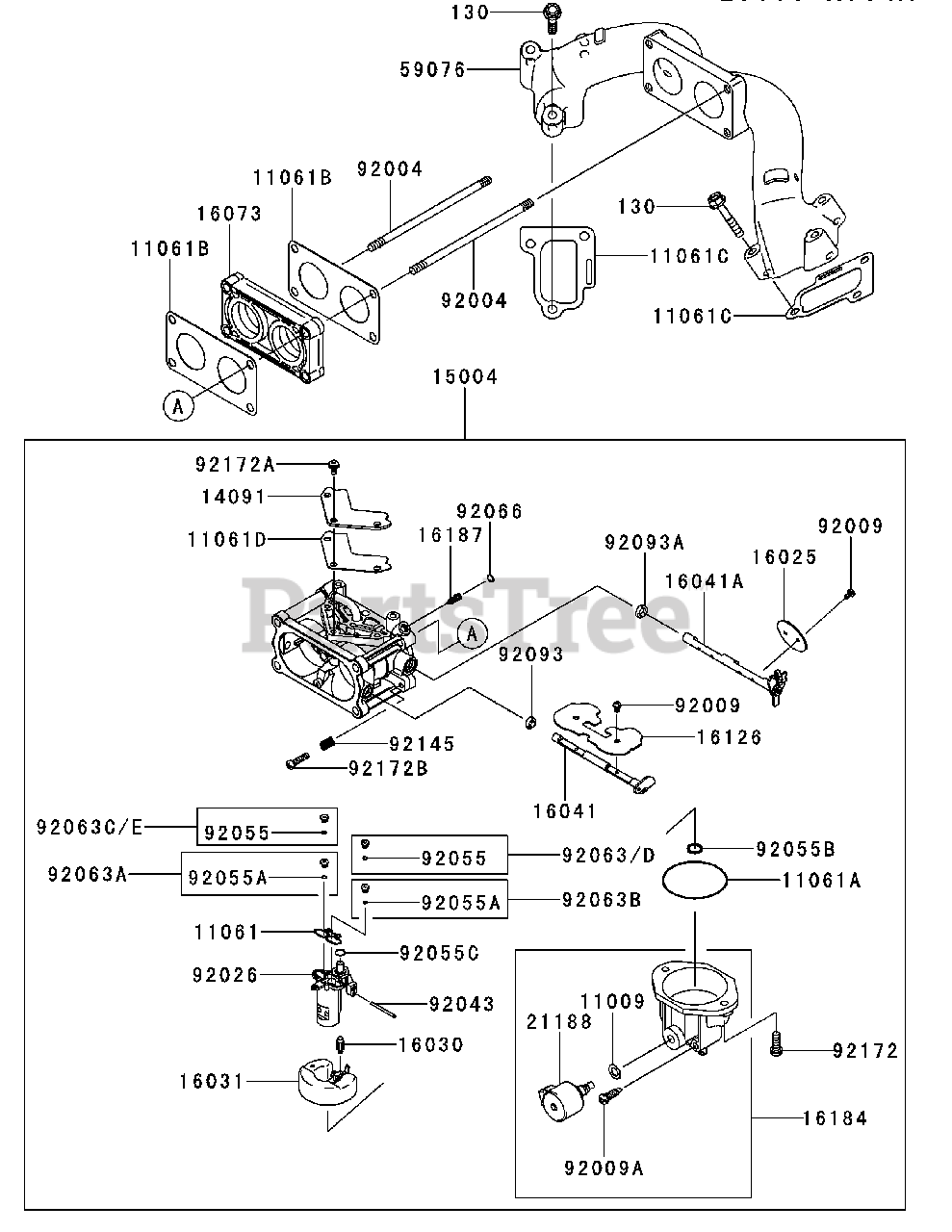

Carburetor Parts Diagram

  • Title

11009

Cub Cadet KM-11009-2056

Gasket

$0.99

$

In Stock, Qty 15

0

11061

Cub Cadet KM-11061-7037

Gasket

$6.99

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7038

Gasket

$2.49

$

In Stock, Qty 20+

0

11061B

Cub Cadet KM-11061-7057

Gasket, Insulator
(Superseded to KM-11061-7057P)

$3.49

$

Usually ships in 3-6 days

0

11061C

Cub Cadet KM-11061-7062

Gasket, Manifold

$12.99

$

In Stock, Qty 20+

0

11061D

Cub Cadet KM-11061-7067

Gasket

$3.99

$

In Stock, Qty 9

0

14091

Cub Cadet KM-14091-7059

Cover

$13.99

$

Usually ships in 2-5 days

0

15004

Cub Cadet KM-15004-7037

Carburetor-Assy
(Superseded to KM-15004-1015)

$250.99

$

Usually ships in 2-5 days

0

16025

Cub Cadet KM-16025-7012

Valve-Throttle

$14.99

$

In Stock, Qty 20+

0

16030

Cub Cadet KM-16030-7004

Valve-Float

$25.99

$

In Stock, Qty 16

0

16031

Cub Cadet KM-16031-7003

Float

$44.99

$

Usually ships in 2-5 days

0

16041

Cub Cadet KM-16041-7035

Shaft-Carburetor, Chock

$48.99

$

Usually ships in 2-5 days

0

16041A

Cub Cadet KM-16041-7036

Shaft-Carburetor, Throttle

$43.99

$

In Stock, Qty 20+

0

16073

Cub Cadet KM-16073-7010

Insulator

$12.99

$

In Stock, only 1 left!

0

16126

Cub Cadet KM-16126-7019

Valve, Chock

$14.99

$

Usually ships in 2-5 days

0

16184

Cub Cadet KM-16184-7023

Chamber-Assy-Float

$222.99

$

In Stock, only 1 left!

0

16187

Cub Cadet KM-16187-7005

Needle-Jet

$12.99

$

In Stock, only 1 left!

0

21188

Cub Cadet KM-21188-7003

Solenoid

$95.99

$

In Stock, Qty 14

0

59076

Cub Cadet KM-59076-7012

Manifold-Intake

$188.99

$

Usually ships in 2-5 days

0

92004

Cub Cadet KM-92004-7028

Stud, 6X120

$3.99

$

In Stock, only 1 left!

0

92009

Cub Cadet KM-92009-7003

Screw

$0.99

$

In Stock, Qty 20+

0

92009A

Cub Cadet KM-92009-7006

Screw, Drain

$1.49

$

In Stock, only 3 left!

0

92026

Cub Cadet KM-92026-7022

Spacer

$7.99

$

Usually ships in 2-5 days

0

92043

Cub Cadet KM-92043-7014

Pin

$6.99

$

Usually ships in 2-5 days

0

92055

Cub Cadet KM-92055-7013

Ring-O

Note: As required

$0.99

$

In Stock, Qty 20+

0

92055A

Cub Cadet KM-92055-7013

Ring-O

$0.99

$

In Stock, Qty 20+

0

92055B

Cub Cadet KM-92055-7016

Ring-O

$2.49

$

In Stock, Qty 10

0

92055C

Cub Cadet KM-92055-7024

Ring-O

$0.99

$

In Stock, Qty 20+

0

92063

Cub Cadet KM-92063-7099

Jet-Main, #134, 6560Ft

Note: As required

$28.99

$

In Stock, only 1 left!

0

92063A

Cub Cadet KM-92063-7099

Jet-Main, #134

$28.99

$

In Stock, only 1 left!

0

92063B

Cub Cadet KM-92063-7100

Jet-Main, #140

$28.99

$

Usually ships in 2-5 days

0

92063C

Cub Cadet KM-92063-7101

Jet-Main, #131, 3280Ft

Note: As required

$30.99

$

Usually ships in 2-5 days

0

92063D

Cub Cadet KM-92063-7102

Jet-Main, #137, 3280Ft

Note: As required

$30.99

$

Usually ships in 2-5 days

0

92063E

Cub Cadet KM-92063-7103

Jet-Main, #128, 6560Ft

Note: As required

$30.99

$

In Stock, only 1 left!

0

92066

Cub Cadet KM-92066-7009

Plug, Expansion

$7.99

$

In Stock, Qty 12

0

92093

Cub Cadet KM-92093-7001

Seal, D=5.9

$2.49

$

In Stock, Qty 12

0

92093A

Cub Cadet KM-92093-7002

Seal, D=6.9

$2.49

$

In Stock, Qty 7

0

92145

Cub Cadet KM-92145-7039

Spring

$2.99

$

In Stock, Qty 20+

0

92172

Cub Cadet KM-92172-7005

Screw, M5

$1.49

$

In Stock, only 2 left!

0

92172A

Cub Cadet KM-92172-7006

Screw, M4

$1.49

$

In Stock, only 4 left!

0

92172B

Cub Cadet KM-92172-7031

Screw, Throttle Adjust

$

$

Not available

130

Cub Cadet KM-130AA0635

Bolt-Flanged, 6X35

$1.99

$

In Stock, Qty 16

0
