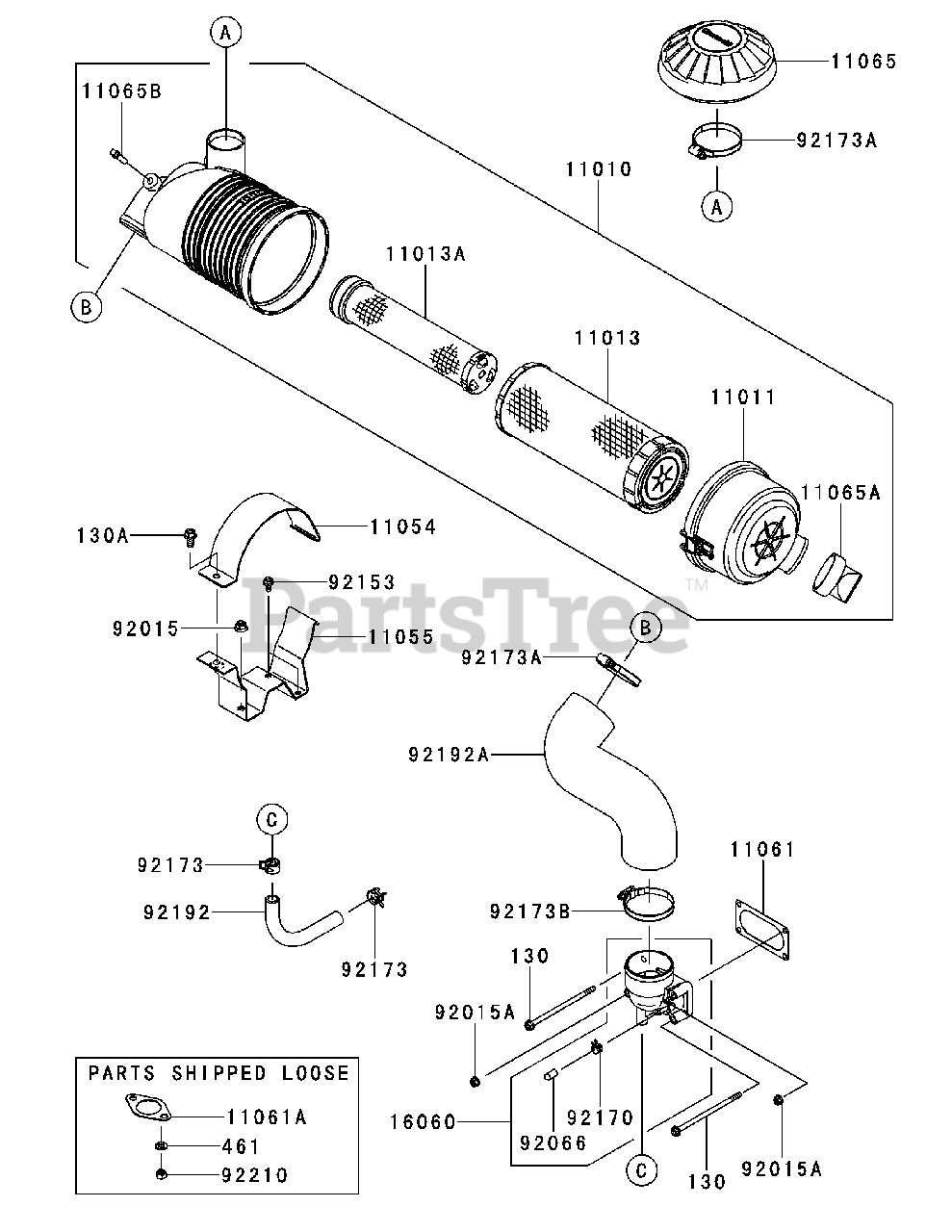

FXT00-S09 - Kawasaki Engine Air Filter & Muffler Parts Diagram

Engine

Air Filter & Muffler Parts Diagram

  • Title

11010

Cub Cadet KM-11010-7028

Filter-Assy-Air

$118.99

$

In Stock, Qty 20+

0

11011

Cub Cadet KM-11011-7056

Case-Air Filter

$46.99

$

In Stock, Qty 20+

0

11013

Cub Cadet KM-11013-7044

Element-Air Filter

$27.99

$

In Stock, Qty 20+

0

11013A

Cub Cadet KM-11013-7045

Element-Air Filter

$27.99

$

In Stock, Qty 20+

0

11054

Cub Cadet KM-11054-70139X

Bracket
(Superseded to KM-11057-4280)

$11.99

$

Usually ships in 3-6 days

0

11055

Cub Cadet KM-11055-70109H

Bracket

$17.99

$

Usually ships in 3-6 days

0

11061

Cub Cadet KM-11061-7056

Gasket, Pipe-Intake

$1.49

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7061

Gasket, Muffler

$2.49

$

In Stock, Qty 20+

0

11065

Cub Cadet KM-11065-7025

Cap
(Superseded to KM-11065-1384)

$41.99

$

In Stock, Qty 20+

0

11065A

Cub Cadet KM-11065-7031

Cap

$13.99

$

In Stock, Qty 20+

0

11065B

Cub Cadet KM-11065-7032

Cap

$4.49

$

In Stock, only 3 left!

0

16060

Cub Cadet KM-16060-0727

Pipe-Intake
(Superseded to KM-16060-6006)

$

$

Not available

92015

Cub Cadet KM-92015-1143

Nut

$0.99

$

In Stock, Qty 10

0

92015A

Cub Cadet KM-92015-1367

Nut

$4.49

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-0095

Plug

$5.49

$

In Stock, Qty 14

0

92153

Cub Cadet KM-92153-7043

Bolt,6X12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

92170

Cub Cadet KM-92170-2042

Clamp

$1.49

$

In Stock, Qty 15

0

92173

Cub Cadet KM-92173-7003

Clamp

$2.49

$

In Stock, Qty 20+

0

92173A

Cub Cadet KM-92173-7010

Clamp
(Superseded to KM-92173-1001)

$3.99

$

In Stock, Qty 20+

0

92173B

Cub Cadet KM-92173-7011

Clamp

$8.49

$

Usually ships in 2-5 days

0

92192

Cub Cadet KM-92192-7075

Tube,12.6X18.6X183

$

$

Not available

92192A

Cub Cadet KM-92192-7166

Tube, Air-Filter
(Superseded to KM-92192-1928)

$61.99

$

In Stock, only 2 left!

0

92210

Cub Cadet KM-92210-7027

Nut, M8

$1.99

$

In Stock, Qty 20+

0

130

Cub Cadet KM-130AA06120

Bolt-Flanged, 6X120

$3.99

$

In Stock, Qty 20+

0

130A

Cub Cadet KM-130AA0816

Bolt-Flanged, 8X16

$0.99

$

In Stock, Qty 20+

0

461

Cub Cadet KM-461DA0800

Washer-Spring, 8Mm

$0.99

$

In Stock, Qty 20+

0
