FX921V-GS04 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

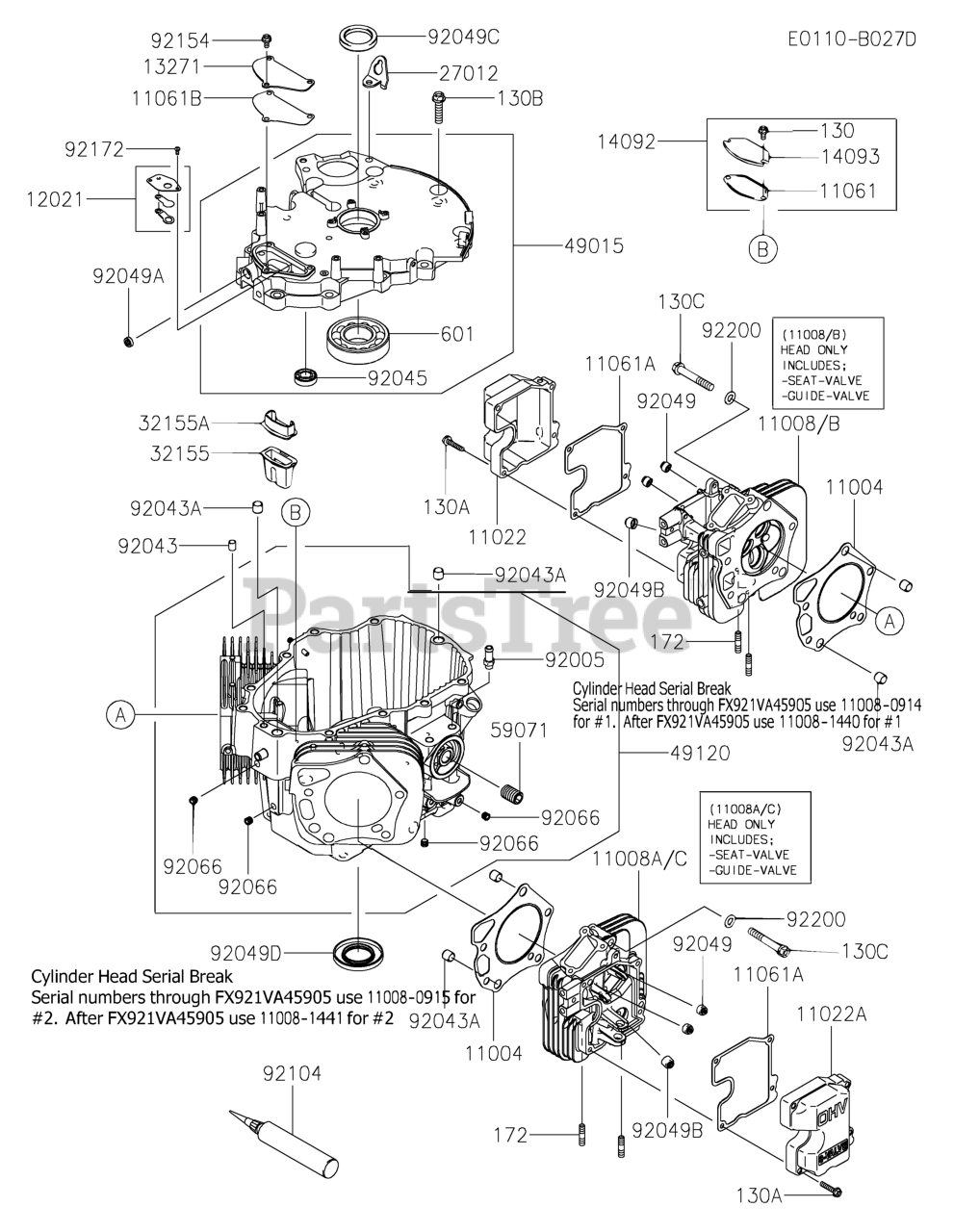

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-7023

GASKET-HEAD

$40.99

$

In Stock, only 2 left!

0

11008

Kawasaki 11008-0914

HEAD-COMP-CYLINDER,#1

$

$

Not available

11008A

Kawasaki 11008-0915

HEAD-COMP-CYLINDER,#2

$

$

Not available

11008B

Kawasaki 11008-1440

HEAD-COMP-CYLINDER,#1

$295.99

$

Usually ships in 2-5 days

0

11008C

Kawasaki 11008-1441

HEAD-COMP-CYLINDER,#2

$295.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 11022-0730

CASE-ROCKER,#1

$19.99

$

Usually ships in 2-5 days

0

11022A

Kawasaki 11022-0731

CASE-ROCKER,#2

$19.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-0816

GASKET,BREATHER

$3.49

$

Usually ships in 2-5 days

0

11061A

Kawasaki 11061-7055

GASKET,CASE-ROCKER

$14.99

$

In Stock, only 4 left!

0

11061B

Kawasaki 11061-7065

GASKET,BREATHER-COVER

$6.99

$

In Stock, only 1 left!

0

12021

Kawasaki 12021-7003

VALVE-ASSY-REED,BREATHER

$6.49

$

Usually ships in 2-5 days

0

13271

Kawasaki 13271-7037

PLATE,BREATHER-COVER

$2.99

$

Usually ships in 2-5 days

0

14092

Kawasaki 14092-6002

COVER
(Superseded to 999990380)

$9.49

$

Usually ships in 2-5 days

0

14093

Kawasaki 14093-1283

COVER,BREATHER

$4.99

$

Usually ships in 2-5 days

0

27012

Kawasaki 27012-7008

HOOK

$1.49

$

Usually ships in 2-5 days

0

32155

Kawasaki 32155-2211

PIPE,BREATHER

$1.99

$

Usually ships in 2-5 days

0

32155A

Kawasaki 32155-2212

PIPE,BREATHER

$2.49

$

In Stock, only 1 left!

0

49015

Kawasaki 49015-7093

COVER-CRANKCASE
(Superseded to 49015-6296)

$205.99

$

In Stock, only 1 left!

0

49120

Kawasaki 49120-0906

CRANKCASE-COMP

$756.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-0743

JOINT,OIL FILTER

$2.99

$

Usually ships in 2-5 days

0

92005

Kawasaki 92005-0881

FITTING

$7.49

$

In Stock, only 2 left!

0

92043

Kawasaki 92043-0858

PIN

$2.49

$

In Stock, Qty 20+

0

92043A

Kawasaki 92043-1266

PIN,11X14X12.3

$1.49

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-7002

BEARING-BALL,A 15X32X9 6002

$9.49

$

Usually ships in 2-5 days

0

92049

Kawasaki 92049-7001

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7019

SEAL-OIL,SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7020

SEAL-OIL,7X15X13

$4.49

$

In Stock, Qty 14

0

92049C

Kawasaki 92049-7024

SEAL-OIL,SD 40X54X9 R HS

$6.49

$

In Stock, Qty 20+

0

92049D

Kawasaki 92049-7025

SEAL-OIL,SD 40X72X8 L VS

$16.99

$

In Stock, only 2 left!

0

92066

Kawasaki 92066-0881

PLUG

$4.49

$

In Stock, Qty 6

0

92104

Kawasaki 92104-0007

GASKET-LIQUID,TB1217H

$51.99

$

In Stock, only 1 left!

0

92154

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92172

Kawasaki 92172-0870

SCREW,4X8

$0.99

$

In Stock, only 2 left!

0

92200

Kawasaki 92200-1864

WASHER,10.5X19.5X1.6

$0.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 2 left!

0

130A

Kawasaki 130BA0630

BOLT-FLANGED,6X30
(Superseded to 130B0630)

$1.99

$

In Stock, only 3 left!

0

130B

Kawasaki 130CA1040

BOLT-FLANGED,10X40

$3.49

$

Usually ships in 2-5 days

0

130C

Kawasaki 130CA1065

BOLT-FLANGED,10X65
(Superseded to 130P1065)

$2.99

$

In Stock, only 4 left!

0

172

Kawasaki 172BA0822

BOLT-STUD,8X22
(Superseded to 172G0822)

$2.49

$

In Stock, Qty 9

0

601

Kawasaki 601A6308

BEARING-BALL
(Superseded to 92045-0712)

$

$

Not available
