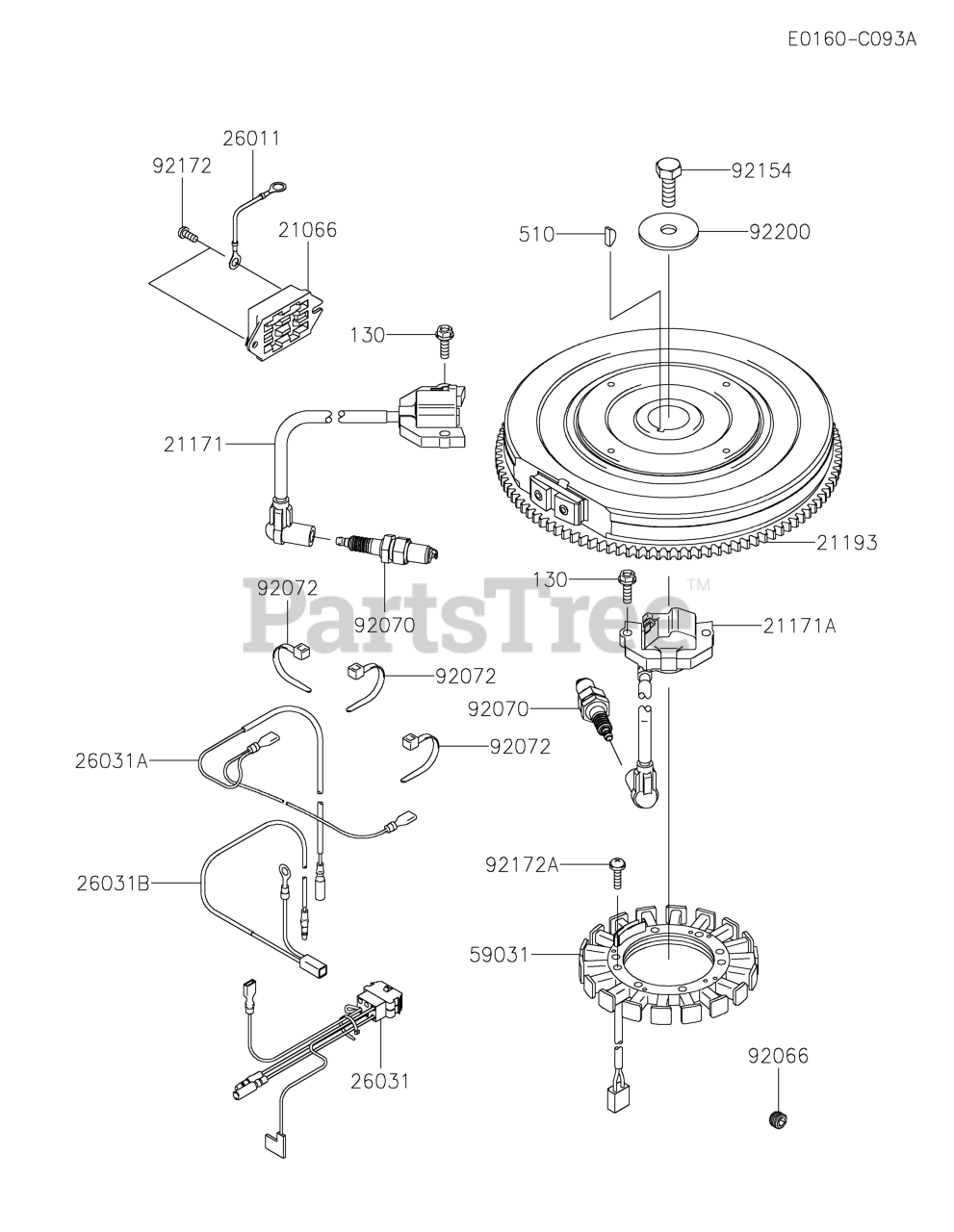

FX921V-CS17 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-0785

REGULATOR-VOLTAGE

$

$

Not available

21171

Kawasaki 21171-0743

COIL-ASSY-IGNITION

$77.99

$

In Stock, Qty 20+

0

21171A

Kawasaki 21171-0744

COIL-ASSY-IGNITION

$77.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-0018

FLYWHEEL-ASSY
(Superseded to 21193-0707)

$321.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2234

WIRE-LEAD

$2.49

$

In Stock, only 3 left!

0

26031

Kawasaki 26031-7008

HARNESS
(Superseded to 26030-7007)

$28.99

$

Usually ships in 2-5 days

0

26031A

Kawasaki 26031-7033

HARNESS

$6.99

$

In Stock, Qty 14

0

26031B

Kawasaki 26031-7034

HARNESS

$8.99

$

In Stock, Qty 8

0

59031

Kawasaki 59031-7010

COIL-CHARGING
(Superseded to 59031-7015)

$108.99

$

In Stock, Qty 5

0

92066

Kawasaki 92066-0881

PLUG

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-2088

PLUG-SPARK,BPR5ES
(Superseded to BPR5ES)

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, only 3 left!

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92172

Kawasaki 92172-1091

SCREW,5X12

$0.99

$

Usually ships in 2-5 days

0

92172A

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7040

WASHER,12.2X46X3

$3.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
