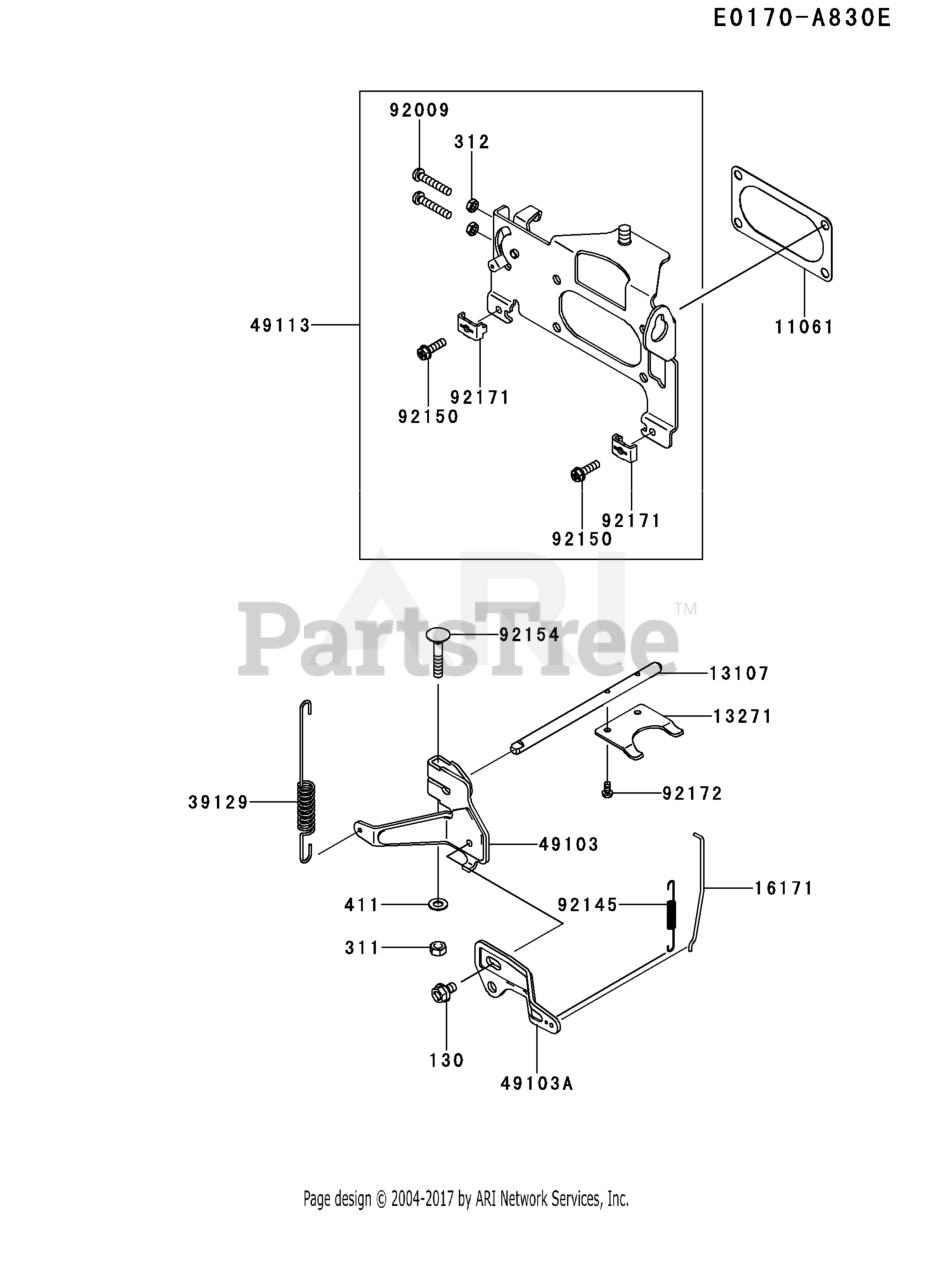

FX921V-CS13 - Kawasaki Engine FX921V-BS13 CONTROL EQUIPMENT Parts Diagram

Engine

FX921V-BS13 CONTROL EQUIPMENT Parts Diagram

  • Title

11061

Cub Cadet KM-11061-7056

GASKET-AIR INTAKE

$1.49

$

In Stock, Qty 20+

0

13107

Cub Cadet KM-13107-7050

GOVERNOR SHAFT

$11.99

$

Usually ships in 2-5 days

0

13271

Cub Cadet KM-13271-7038

PLATE-GOV SHAFT

$3.49

$

In Stock, Qty 11

0

16171

Cub Cadet KM-16171-0038

LINK

$0.99

$

In Stock, only 4 left!

0

39129

Cub Cadet KM-39129-0045

GOVERNOR SPRING

$4.99

$

In Stock, Qty 20+

0

49103

Cub Cadet KM-49103-7009

ARM-GOVERNOR SHAFT

$4.49

$

In Stock, only 1 left!

0

49103A

Cub Cadet KM-49103-7010

ARM-GOVERNOR LINK

$3.49

$

Usually ships in 2-5 days

0

49113

Cub Cadet KM-49113-0008

CONTROL PANEL COMPLETE

$28.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-2381

SCREW-CONTROL PANE

$0.99

$

In Stock, Qty 5

0

92145

Cub Cadet KM-92145-7050

GOV LINK SPRING

$1.49

$

In Stock, only 2 left!

0

92150

Cub Cadet KM-92150-2182

BOLT-CLAMP

$0.99

$

In Stock, Qty 20+

0

92154

Cub Cadet KM-92154-2697

BOLT-6X35

$0.99

$

In Stock, Qty 9

0

92171

Cub Cadet KM-92171-7018

CLAMP-CABLE HOLD DWN

$2.99

$

In Stock, Qty 12

0

92172

Cub Cadet KM-92172-0870

SCREW 4 x 8

$0.99

$

In Stock, only 4 left!

0

130

Cub Cadet KM-130BA0610

FLANGED BOLT 6X10

$1.49

$

In Stock, only 4 left!

0

311

Cub Cadet KM-311AA0600

HEX NUT 6MM

$0.99

$

In Stock, Qty 20+

0

312

Cub Cadet KM-312AA0500

HEX NUT 5MM

$0.99

$

In Stock, Qty 6

0

411

Cub Cadet KM-411AA0600

WASHER-PLAIN 6MM

$4.49

$

In Stock, Qty 12

0
