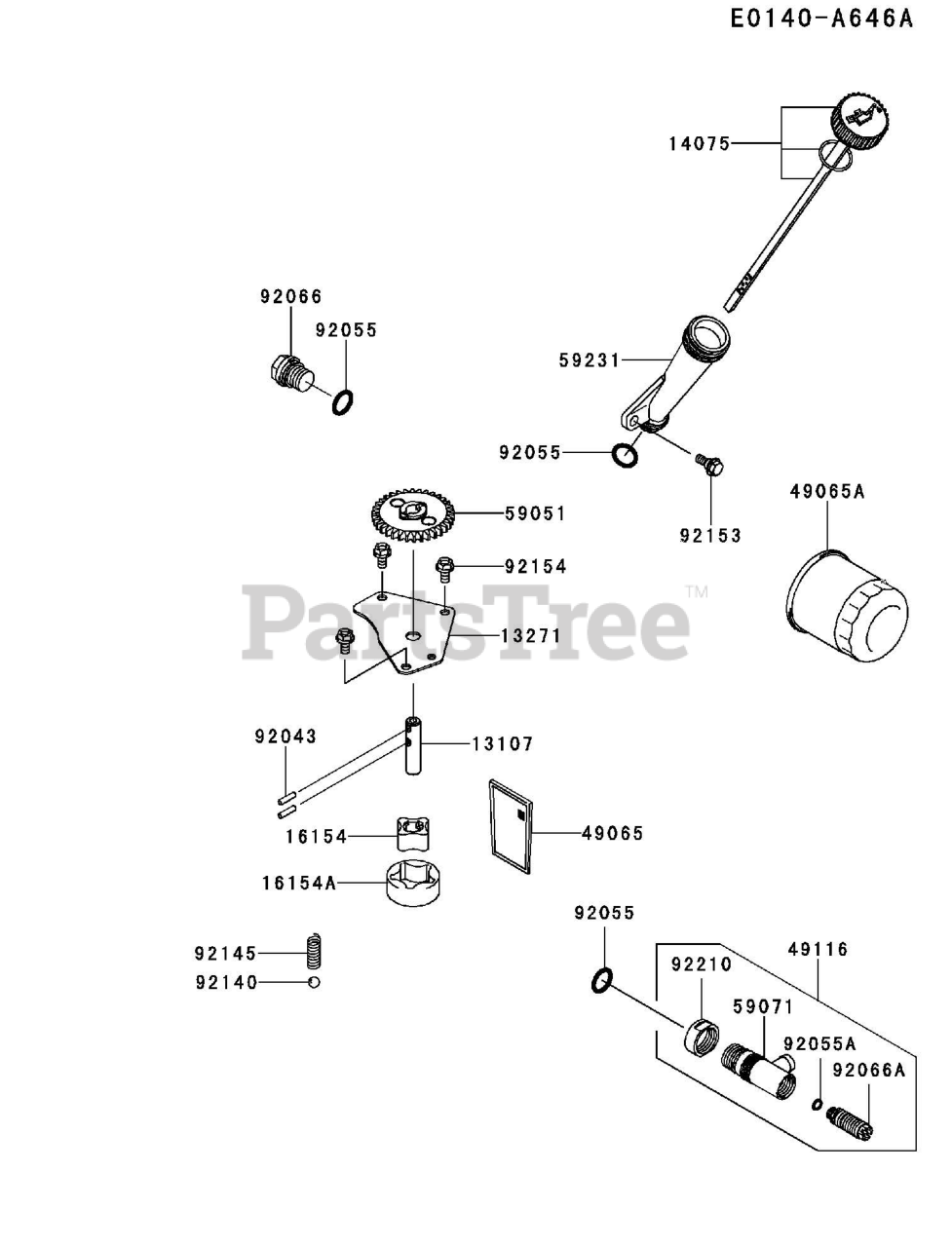

FX921V-AS18 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

13107

Kawasaki 13107-0858

SHAFT,OIL PUMP

$2.49

$

In Stock, only 4 left!

0

13271

Kawasaki 13271-7034

PLATE,ROTOR-PUMP

$3.99

$

Usually ships in 2-5 days

0

14075

Kawasaki 14075-0050

CAP-ASSY

$12.99

$

Usually ships in 2-5 days

0

16154

Kawasaki 16154-7007

ROTOR-PUMP,IN

$8.49

$

In Stock, Qty 6

0

16154A

Kawasaki 16154-7008

ROTOR-PUMP,OUT

$19.99

$

In Stock, only 3 left!

0

49065

Kawasaki 49065-0718

FILTER-OIL

$4.99

$

In Stock, Qty 20+

0

49065A

Kawasaki 49065-7010

FILTER-OIL
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

49116

Kawasaki 49116-0045

VALVE-ASSY
(Superseded to 49116-0714)

$8.49

$

In Stock, Qty 20+

0

59051

Kawasaki 59051-7026

GEAR-SPUR,OIL-PUMP

$60.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-0763

JOINT

$14.99

$

In Stock, Qty 6

0

59231

Kawasaki 59231-0748

FILLER

$

$

Not available

92043

Kawasaki 92043-7003

PIN

$

$

Not available

92055

Kawasaki 92055-0892

RING-O,15.8X2.4

$0.99

$

In Stock, Qty 20+

0

92055A

Kawasaki 92055-7002

RING-O,6MM

$4.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-0774

PLUG

$5.49

$

In Stock, Qty 20+

0

92066A

Kawasaki 92066-0935

PLUG

$

$

Not available

92140

Kawasaki 92140-7003

BALL,STEEL,13/32

$1.49

$

In Stock, Qty 13

0

92145

Kawasaki 92145-7046

SPRING

$0.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7007

BOLT,FLANGED,6X16

$4.49

$

In Stock, Qty 20+

0

92154

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92210

Kawasaki 92210-1724

NUT,M22

$2.99

$

Usually ships in 2-5 days

0
