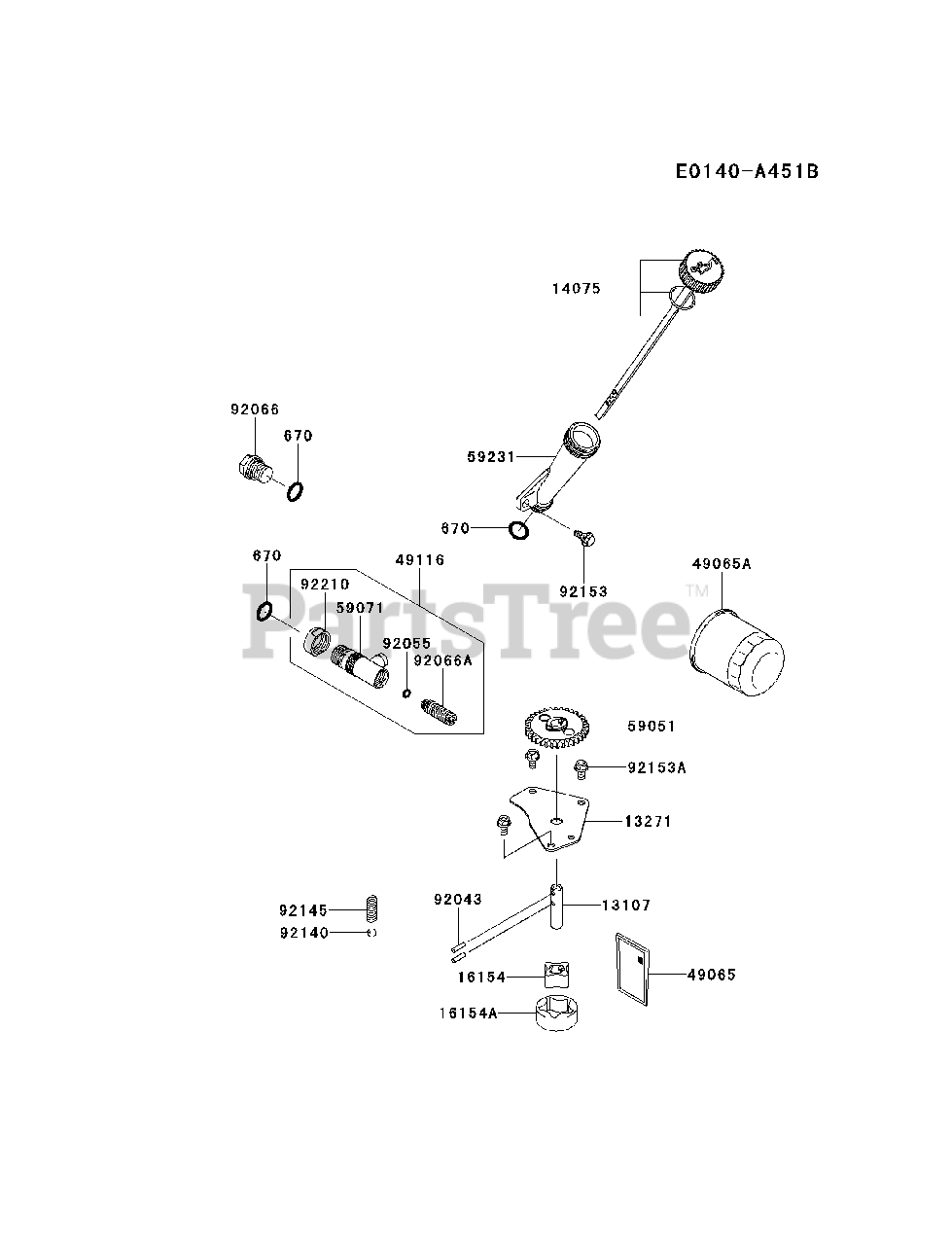

FX921V-AS12 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title
13107

Kawasaki 13107-0749

SHAFT
(Superseded to 13107-7009)

$2.49

$

In Stock, only 3 left!

0

13271

Kawasaki 13271-7034

PLATE,ROTOR-PUMP

$3.99

$

Usually ships in 2-5 days

0

14075

Kawasaki 14075-0036

CAP-ASSY
(Superseded to 14075-7011)

$

$

Not available

16154

Kawasaki 16154-7007

ROTOR-PUMP,IN

$8.49

$

In Stock, Qty 6

0

16154A

Kawasaki 16154-7008

ROTOR-PUMP,OUT

$19.99

$

In Stock, only 3 left!

0

49065

Kawasaki 49065-7004

FILTER-OIL

$

$

Not available

49065A

Kawasaki 49065-7010

FILTER-OIL
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

49116

Kawasaki 49116-7001

VALVE-ASSY
(Superseded to 49116-7003)

$

$

Not available

59051

Kawasaki 59051-7026

GEAR-SPUR,OIL-PUMP

$60.99

$

Usually ships in 2-5 days

0

59071

$

$

Not available

59231

$

$

Not available

$

$

Not available

92055

Kawasaki 92055-7002

RING-O,6MM

$4.99

$

In Stock, Qty 19

0

92066

$5.49

$

In Stock, Qty 20+

0

92066A

$4.49

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7003

BALL,STEEL,13/32

$1.49

$

In Stock, Qty 13

0

92145

$0.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7007

BOLT,FLANGED,6X16

$4.49

$

In Stock, Qty 20+

0

92153A

$

$

Not available

92210

$2.99

$

In Stock, only 2 left!

0

670

Kawasaki 670D2016

O RING,16MM
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
