FX921V-AS06 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

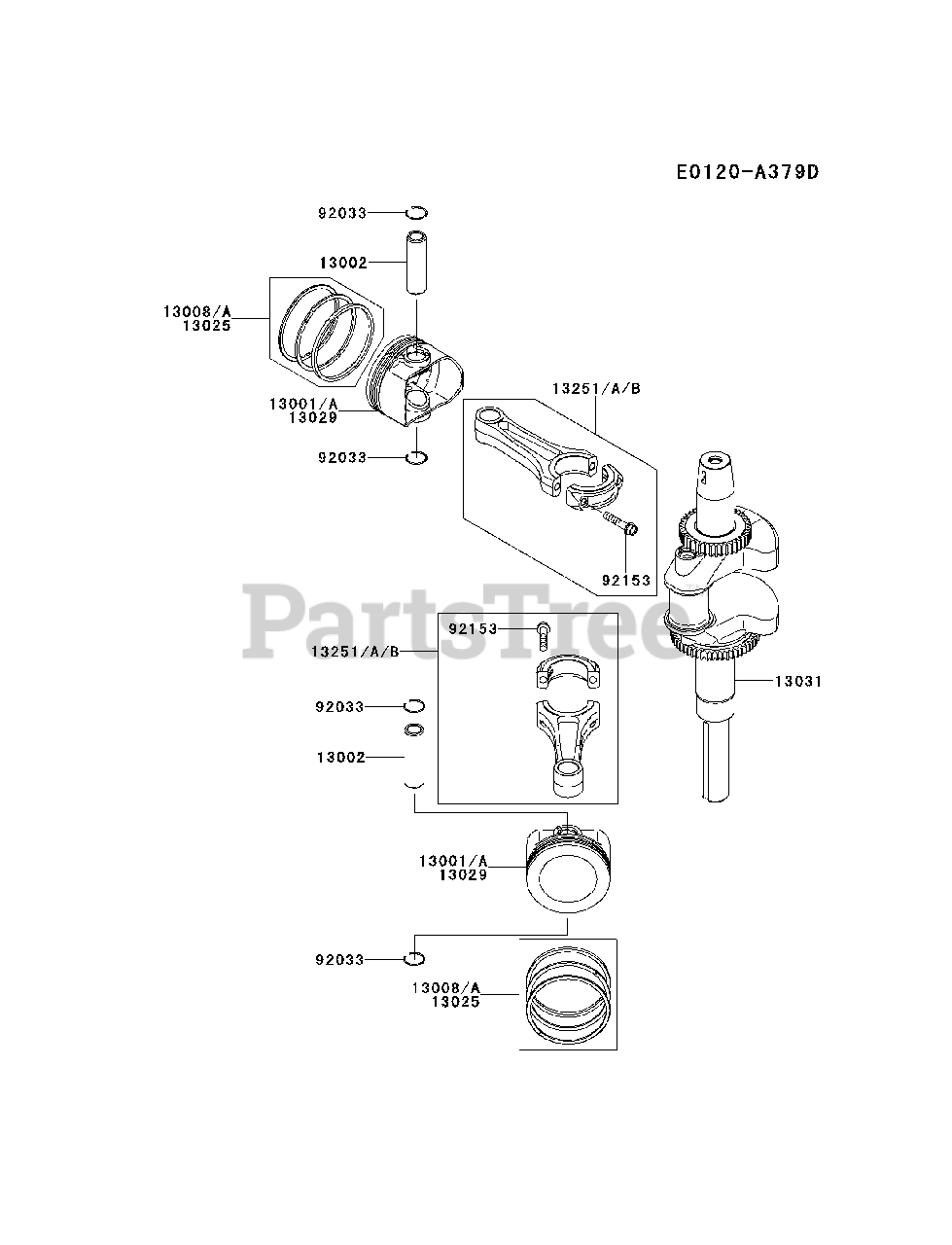

PISTON/CRANKSHAFT Parts Diagram

  • Title
13001

Kawasaki 13001-7021

PISTON-ENGINE
(Superseded to 99999-0310)

$128.99

$

In Stock, only 2 left!

0

13002

Kawasaki 13002-7004

PIN-PISTON

$21.99

$

Usually ships in 2-5 days

0

13008

Kawasaki 13008-7004

RING-SET-PISTON
(Superseded to 99999-0310)

$128.99

$

In Stock, only 2 left!

0

13025

Kawasaki 13025-7008

RING-SET-PISTON L,0.5
(Superseded to 99996-6103)

$135.99

$

In Stock, only 2 left!

0

13029

Kawasaki 13029-7009

PISTON-ENGINE L,0.5
(Superseded to 99996-6103)

$135.99

$

In Stock, only 2 left!

0

13031

Kawasaki 13031-7080

CRANKSHAFT-COMP
(Superseded to 13031-0856)

$361.99

$

In Stock, only 1 left!

0

13251

Kawasaki 13251-7018

ROD-ASSY-CONNECTING
(Superseded to 13251-7030)

$

$

Not available

13251B

Kawasaki 13251-7030

ROD-ASSY-CONNECTING
(Superseded to 13251-0044)

$

$

Not available

92033

Kawasaki 92033-2176

RING-SNAP
(Superseded to 92033-0726)

$

$

Not available

92153

Kawasaki 92153-2054

BOLT,7X35.2

$1.99

$

In Stock, Qty 20+

0
