FX850V-DS42 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

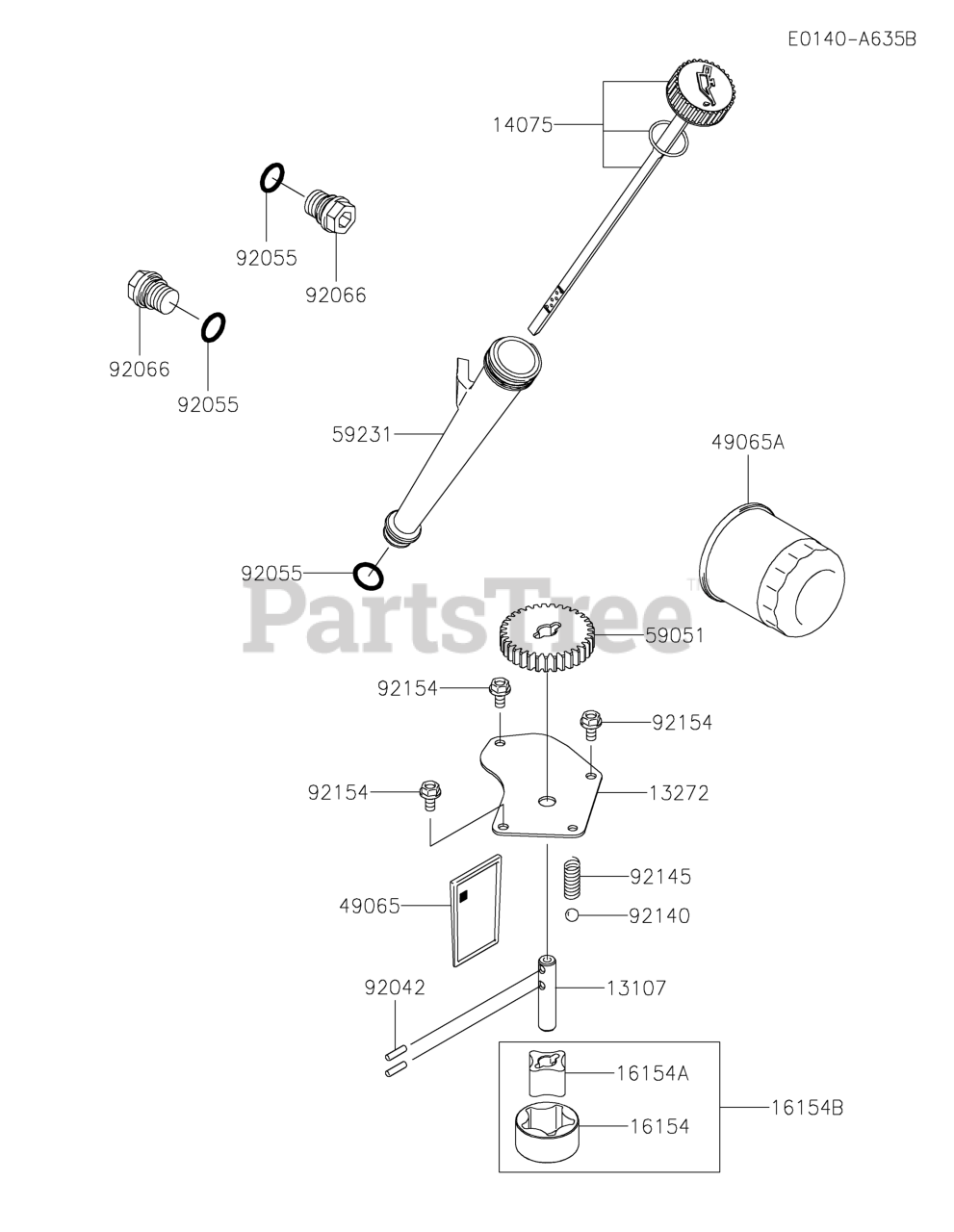

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

13107

Kawasaki 13107-0846

SHAFT,OIL PUMP

$3.99

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-3883

PLATE,OIL PUMP

$6.49

$

Usually ships in 2-5 days

0

14075

Kawasaki 14075-0049

CAP-ASSY

$10.99

$

In Stock, Qty 20+

0

16154

Kawasaki 16154-1075

ROTOR-PUMP,OUTER

$22.99

$

Usually ships in 2-5 days

0

16154A

Kawasaki 16154-1076

ROTOR-PUMP,INNER

$22.99

$

Usually ships in 2-5 days

0

16154B

Kawasaki 16154-1079

ROTOR-PUMP

$29.99

$

In Stock, only 2 left!

0

49065

Kawasaki 49065-0718

FILTER-OIL

$4.99

$

In Stock, Qty 20+

0

49065A

Kawasaki 49065-0724

FILTER-OIL
(Superseded to 49065-0724BK)

$18.99

$

Usually ships in 2-5 days

0

59051

Kawasaki 59051-0859

GEAR-SPUR

$

$

Not available

59231

Kawasaki 59231-7014

FILLER

$9.99

$

In Stock, Qty 13

0

92042

Kawasaki 92042-014

PIN,DOWEL,4X15.8

$0.99

$

In Stock, Qty 11

0

92055

Kawasaki 92055-0892

RING-O,15.8X2.4

$0.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-0774

PLUG

$5.49

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7003

BALL,STEEL,13/32

$1.49

$

In Stock, Qty 13

0

92145

Kawasaki 92145-1809

SPRING,OIL RELIEF

$0.99

$

In Stock, Qty 8

0

92154

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0
