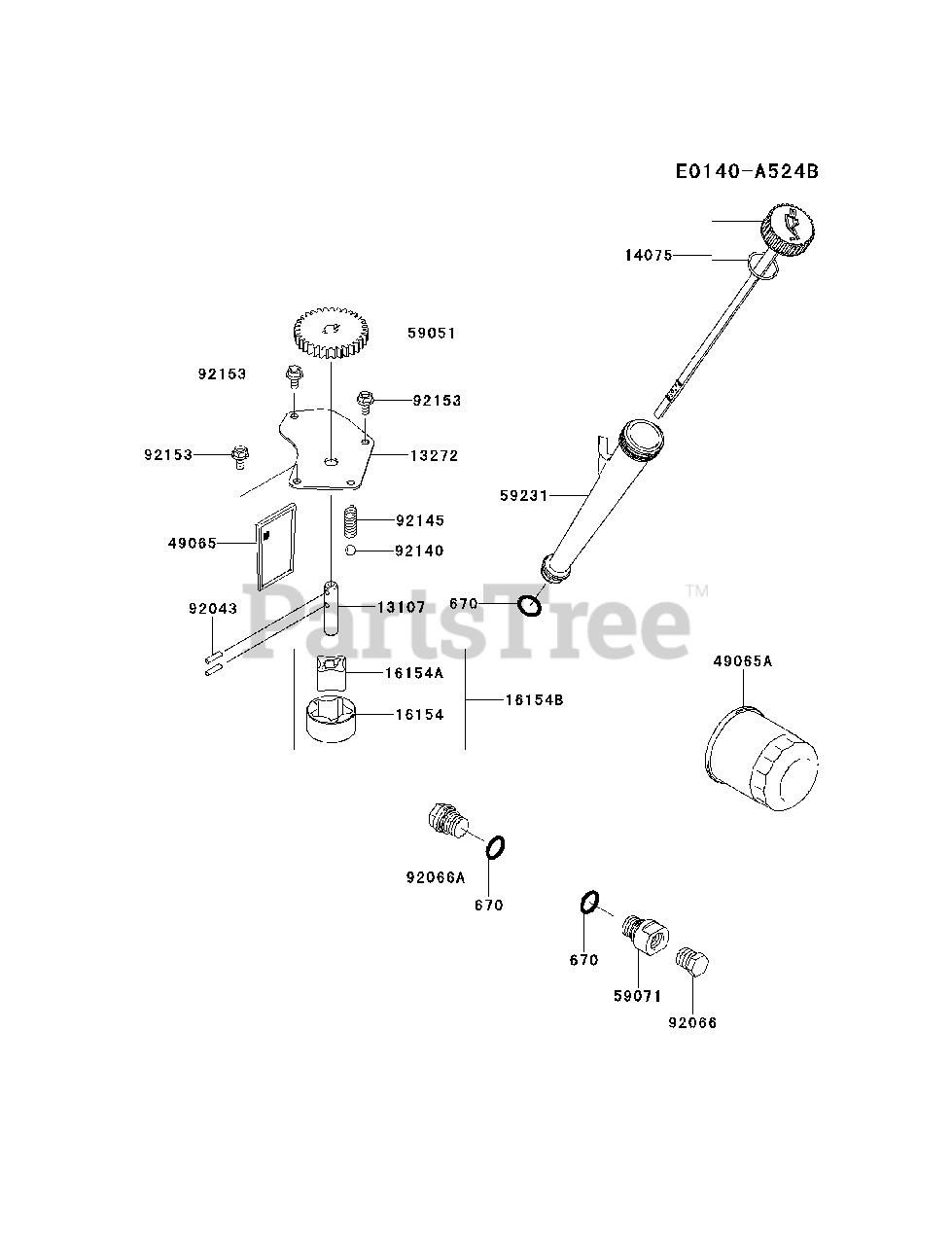

FX850V-DS11 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title
13107

Kawasaki 13107-7009

SHAFT
(Superseded to 13107-0749)

$2.49

$

In Stock, only 3 left!

0

13272

Kawasaki 13272-7005

PLATE
(Superseded to 13272-2287)

$

$

Not available

14075

Kawasaki 14075-0033

CAP-ASSY
(Superseded to 14075-7012)

$

$

Not available

16154

Kawasaki 16154-1075

ROTOR-PUMP,OUTER

$22.99

$

Usually ships in 2-5 days

0

16154A

Kawasaki 16154-1076

ROTOR-PUMP,INNER

$22.99

$

Usually ships in 2-5 days

0

16154B

Kawasaki 16154-1079

ROTOR-PUMP

$29.99

$

In Stock, only 2 left!

0

49065

Kawasaki 49065-7004

FILTER-OIL

$

$

Not available

49065A

Kawasaki 49065-7010

FILTER-OIL
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

59051

$65.99

$

In Stock, only 1 left!

0

59071

Kawasaki 59071-7023

JOINT
(Superseded to 59071-7004)

$8.99

$

In Stock, Qty 11

0

59231

$9.99

$

In Stock, Qty 13

0

$

$

Not available

92066

Kawasaki 92066-0763

PLUG
(Superseded to 92066-0827)

$1.49

$

In Stock, only 3 left!

0

92066A

$5.49

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7003

BALL,STEEL,13/32

$1.49

$

In Stock, Qty 13

0

92145

$

$

Not available

92153

$

$

Not available

670

Kawasaki 670D2016

O RING,16MM
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
