FX850V-DR31 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

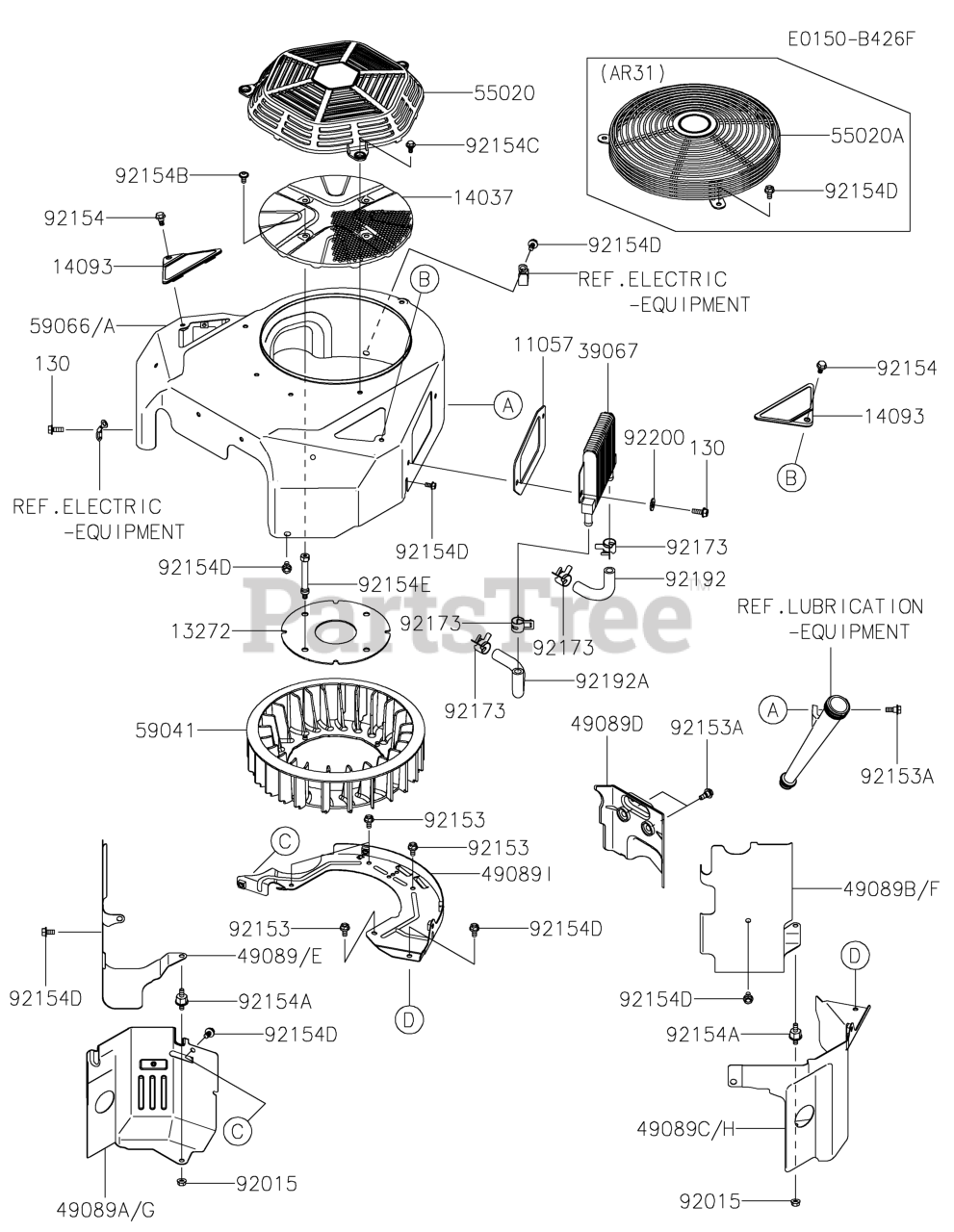

COOLING-EQUIPMENT Parts Diagram

  • Title

11057

Kawasaki 11057-0683

BRACKET,OIL COOLER

$9.99

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-7037

PLATE,FAN

$

$

Currently unavailable

14037

Kawasaki 14037-0804

SCREEN

$36.99

$

In Stock, only 1 left!

0

14093

Kawasaki 14093-0235

COVER

$2.99

$

Usually ships in 2-5 days

0

39067

Kawasaki 39067-0024

COOLER-OIL

$144.99

$

In Stock, Qty 7

0

49089D

Kawasaki 49089-0997

SHROUD-ENGINE,BAFFLE

$4.49

$

Usually ships in 2-5 days

0

49089E

Kawasaki 49089-1174

SHROUD-ENGINE,V-BANK #1

$

$

Currently unavailable

49089F

Kawasaki 49089-1175

SHROUD-ENGINE,V-BANK #2

$

$

Currently unavailable

49089G

Kawasaki 49089-1193

SHROUD-ENGINE,#1 SIDE

$

$

Currently unavailable

49089H

Kawasaki 49089-1196

SHROUD-ENGINE,#2 SIDE

$

$

Currently unavailable

49089I

Kawasaki 49089-1204

SHROUD-ENGINE,BACK

$

$

Currently unavailable

55020

Kawasaki 55020-2353

GUARD,FAN

$39.99

$

In Stock, only 1 left!

0

59041

Kawasaki 59041-0016

FAN

$21.99

$

Usually ships in 2-5 days

0

59066A

Kawasaki 59066-0858

HOUSING-FAN

$

$

Currently unavailable

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-0010

BOLT,FLANGED,6X12

$2.99

$

Usually ships in 2-5 days

0

92153A

Kawasaki 92153-7007

BOLT,FLANGED,6X16

$4.49

$

In Stock, Qty 20+

0

92154

Kawasaki 92154-1119

BOLT

$2.49

$

In Stock, only 3 left!

0

92154A

Kawasaki 92154-2676

BOLT

$3.49

$

Usually ships in 2-5 days

0

92154B

Kawasaki 92154-2687

BOLT,6X12

$1.49

$

In Stock, Qty 20+

0

92154C

Kawasaki 92154-2815

BOLT

$1.49

$

Usually ships in 2-5 days

0

92154D

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92154E

Kawasaki 92154-4098

BOLT,SCREEN

$12.99

$

Usually ships in 2-5 days

0

92173

Kawasaki 92173-1619

CLAMP

$3.99

$

In Stock, Qty 20+

0

92192

Kawasaki 92192-1649

TUBE,INLET OIL COOLER

$8.49

$

In Stock, Qty 10

0

92192A

Kawasaki 92192-1650

TUBE,OUTLET OIL COOLER

$9.99

$

In Stock, Qty 6

0

92200

Kawasaki 92200-2035

WASHER,6.5X18X2.0

$0.99

$

In Stock, Qty 5

0

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 3 left!

0
