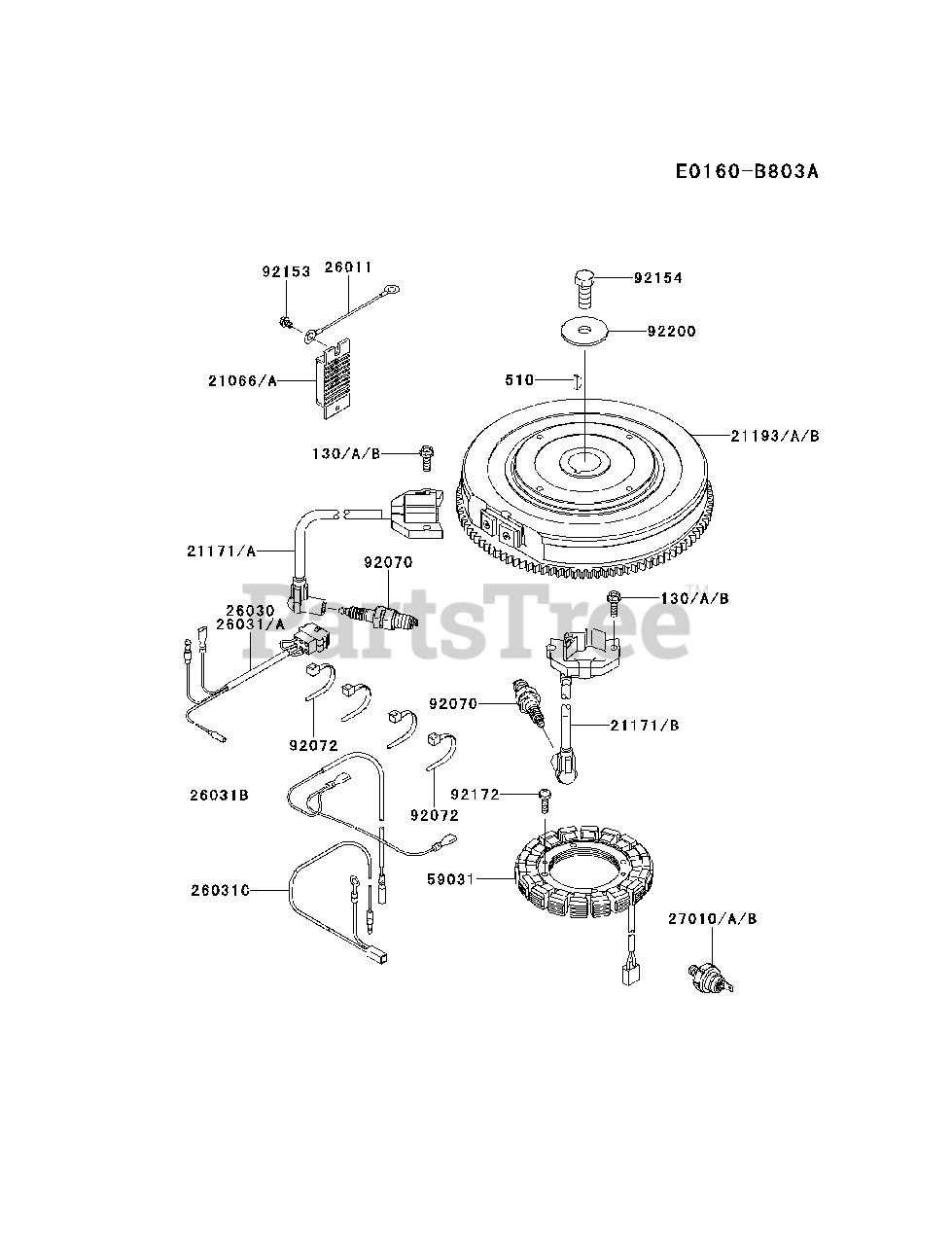

FX850V-BS15 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-0740

REGULATOR-VOLTAGE

$

$

Not available

21171A

Kawasaki 21171-0738

COIL-ASSY-IGNITION,#1 CYL
(Superseded to 211710743)

$77.99

$

In Stock, Qty 20+

0

21171B

Kawasaki 21171-0739

COIL-ASSY-IGNITION,#2 CYL
(Superseded to 21171-0744)

$77.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-0015

FLYWHEEL-ASSY
(Superseded to 21193-0706)

$303.99

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-2234

WIRE-LEAD

$2.49

$

In Stock, only 3 left!

0

26031

Kawasaki 26031-1624

HARNESS
(Superseded to 26030-7008)

$22.99

$

In Stock, Qty 13

0

26031B

Kawasaki 26031-7033

HARNESS

$6.99

$

In Stock, Qty 14

0

26031C

Kawasaki 26031-7034

HARNESS

$8.99

$

In Stock, Qty 8

0

27010

Kawasaki 27010-0818

SWITCH
(Superseded to 27010-7002)

$23.99

$

In Stock, Qty 6

0

59031

Kawasaki 59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 20+

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, only 3 left!

0

92153

Kawasaki 92153-7029

BOLT

$1.49

$

In Stock, Qty 12

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7040

WASHER,12.2X46X3

$3.49

$

Usually ships in 2-5 days

0

130A

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
