FX850V-AS21 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

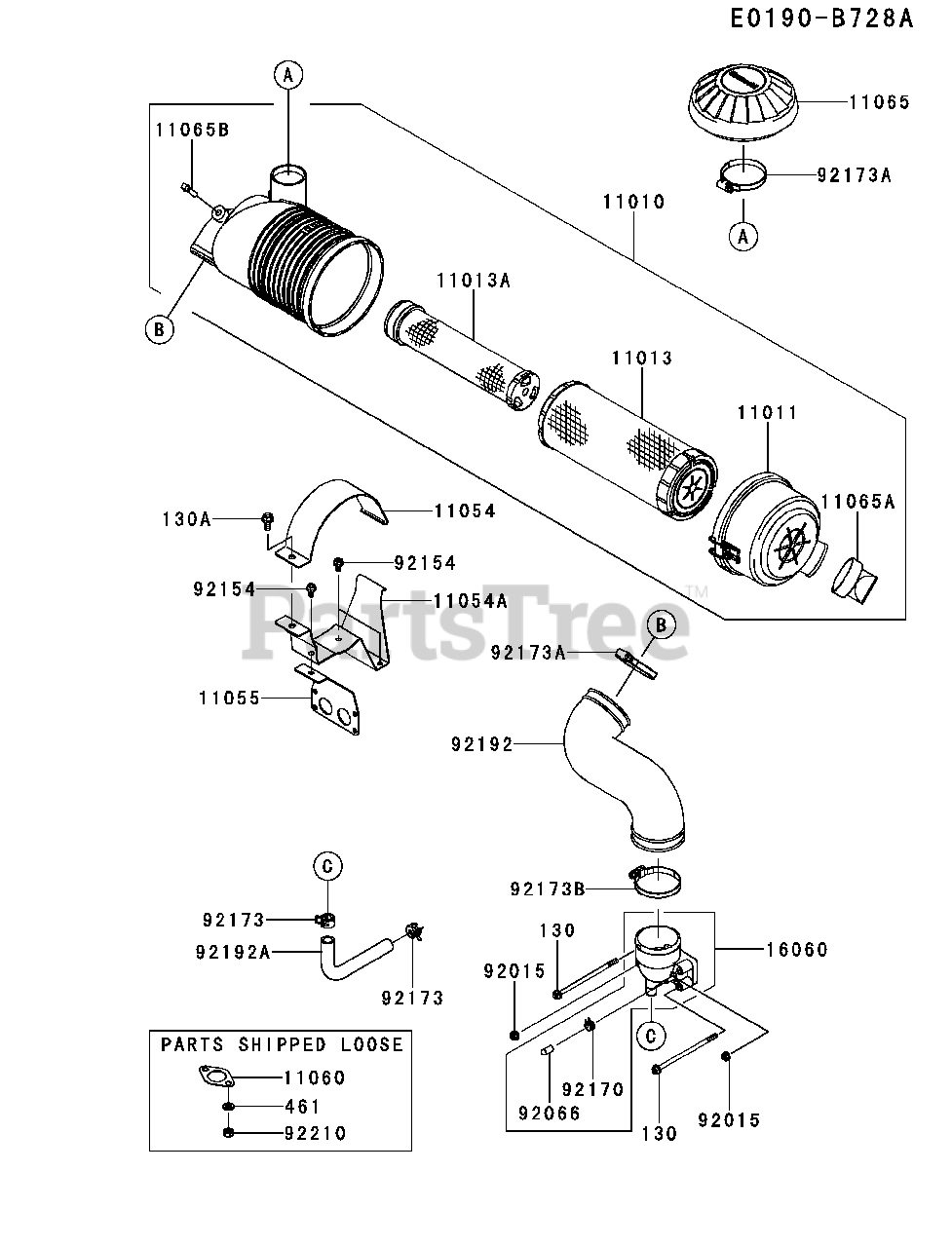

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 110107028

FILTER-ASSY-AIR

$118.99

$

In Stock, Qty 20+

0

11011

Kawasaki 110117056

CASE-AIR FILTER

$46.99

$

In Stock, Qty 20+

0

11013

Kawasaki 110137044

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 110137045

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11054

Kawasaki 1105470139X

BRACKET

$

$

Currently unavailable

11054A

Kawasaki 1105470169X

BRACKET

$

$

Currently unavailable

11055

Kawasaki 1105570079X

BRACKET
(Superseded to 11054-7017-9X)

$

$

Currently unavailable

11060

Kawasaki 110607016

GASKET

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 110657025

CAP
(Superseded to 11065-7006)

$

$

Not available

11065A

Kawasaki 110657031

CAP

$13.99

$

In Stock, Qty 20+

0

11065B

Kawasaki 110657032

CAP

$4.49

$

In Stock, only 3 left!

0

16060

Kawasaki 160600771

PIPE-INTAKE

$47.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 920151367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92066

Kawasaki 920660095

PLUG

$5.49

$

In Stock, Qty 14

0

92154

Kawasaki 921542938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92170

Kawasaki 921702042

CLAMP

$1.49

$

In Stock, Qty 15

0

92173

Kawasaki 921737003

CLAMP

$2.49

$

In Stock, Qty 20+

0

92173A

Kawasaki 921737010

CLAMP

$8.49

$

In Stock, Qty 14

0

92173B

Kawasaki 921737011

CLAMP

$8.49

$

Usually ships in 2-5 days

0

92192

Kawasaki 921921911

TUBE,AIR-FILTER

$76.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 921927086

TUBE

$6.49

$

In Stock, Qty 10

0

92210

Kawasaki 922107027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

130

Kawasaki 130AA06120

BOLT-FLANGED,6X120

$3.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
