FX850V-AS02 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

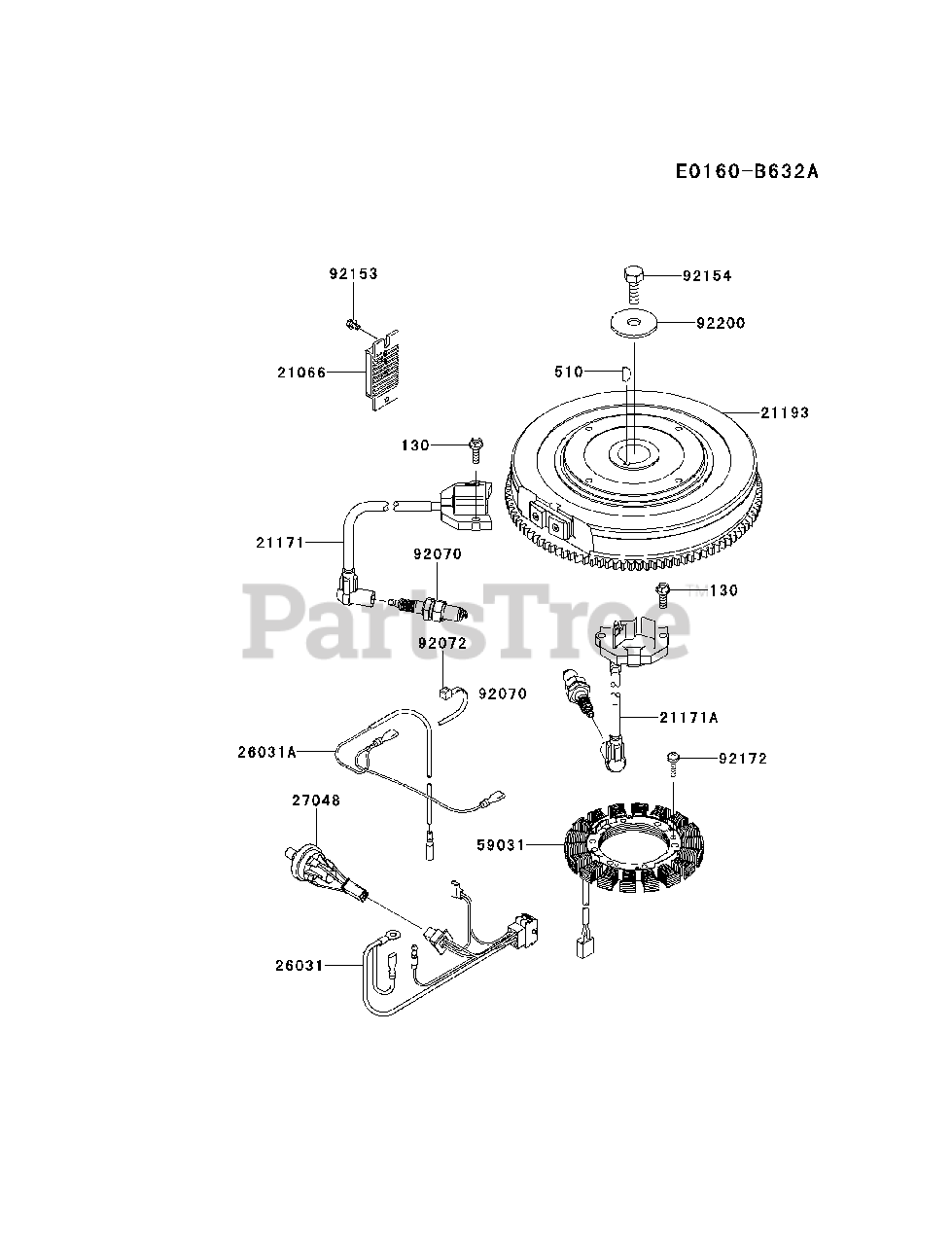

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7011

REGULATOR-VOLTAGE
(Superseded to 21066-7001)

$77.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-0718

COIL-ASSY-IGNITION
(Superseded to 21171-0738)

$77.99

$

In Stock, Qty 20+

0

21171A

Kawasaki 21171-0722

COIL-ASSY-IGNITION
(Superseded to 21171-0739)

$77.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-0706

FLYWHEEL-ASSY
(Superseded to 21193-0015)

$303.99

$

Usually ships in 2-5 days

0

26031

Kawasaki 26031-1486

HARNESS

$

$

Not available

26031A

Kawasaki 26031-7033

HARNESS

$6.99

$

In Stock, Qty 13

0

27048

Kawasaki 27048-0005

SWITCH-ASSY
(Superseded to 27045-0558)

$

$

Not available

59031

Kawasaki 59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 20+

0

92070

Kawasaki 92070-0707

PLUG-SPARK,BPR8ES-6

Note: NGK

$

$

Not available

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, Qty 5

0

92153

Kawasaki 92153-7029

BOLT

$1.49

$

In Stock, Qty 12

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 19

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7040

WASHER,12.2X46X3

$3.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
