FX850V-AS02 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

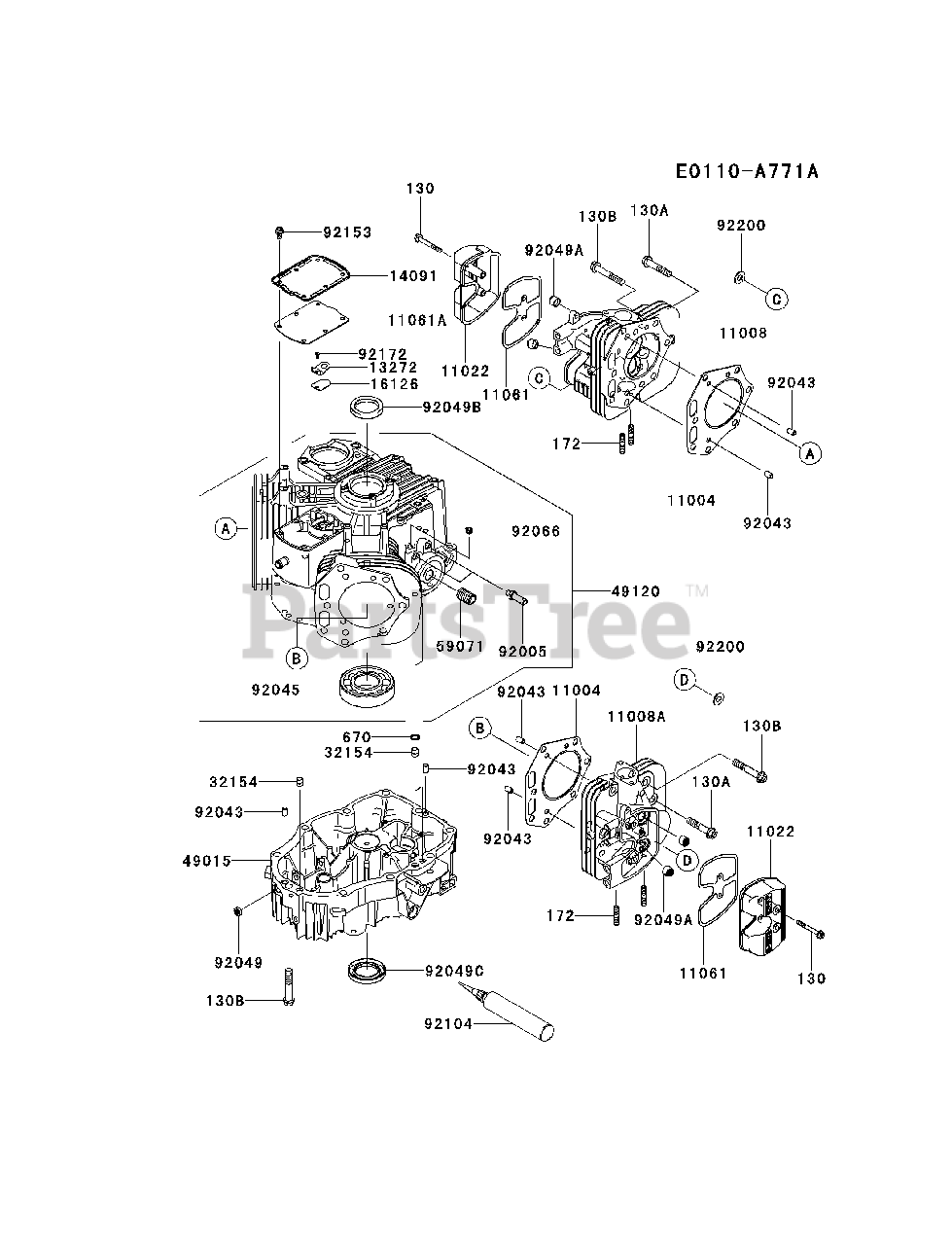

CYLINDER/CRANKCASE Parts Diagram

  • Title
11004

Kawasaki 11004-7025

GASKET-HEAD

$50.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-0813

HEAD-COMP-CYLINDER,#1
(Superseded to 11008-0730)

$

$

Not available

11008A

Kawasaki 11008-0814

HEAD-COMP-CYLINDER,#2
(Superseded to 11008-0731)

$

$

Not available

11022

Kawasaki 11022-7025

CASE-ROCKER
(Superseded to 99996-6122)

$47.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-0899

GASKET,CASE-ROCKER
(Superseded to 11061-7080)

$5.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7081

GASKET,BREATHER

$2.99

$

In Stock, Qty 20+

0

13272

Kawasaki 13272-1374

PLATE
(Superseded to 13272-7004)

$1.99

$

In Stock, Qty 7

0

14091

Kawasaki 14091-7060

COVER,BREATHER

$2.99

$

In Stock, only 1 left!

0

16126

Kawasaki 16126-7020

VALVE,BREATHER

$4.99

$

In Stock, Qty 20+

0

32154

Kawasaki 32154-7019

PIPE
(Superseded to 920430858)

$2.49

$

In Stock, Qty 20+

0

49015

Kawasaki 49015-7088

COVER-CRANKCASE
(Superseded to 49015-0046)

$

$

Not available

49120

Kawasaki 49120-0843

CRANKCASE-COMP

$634.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-7025

JOINT
(Superseded to 59071-0733)

$

$

Not available

92005

Kawasaki 92005-0750

FITTING
(Superseded to 92005-0771)

$7.49

$

In Stock, Qty 11

0

$0.99

$

In Stock, Qty 20+

0

92045

Kawasaki 92045-0712

BEARING-BALL,6308

$

$

Not available

92049

Kawasaki 92049-7019

SEAL-OIL,SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-7020

SEAL-OIL,7X15X13

$4.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7024

SEAL-OIL,SD 40X54X9 R HS

$6.49

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7026

SEAL-OIL,SD 40X62X8 L VS

$8.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-0762

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92104

Kawasaki 92104-7001

GASKET-LIQUID,TB1217H
(Superseded to 921040007)

$51.99

$

In Stock, Qty 15

0

92153

$

$

Not available

92172

$0.99

$

In Stock, only 4 left!

0

92200

Kawasaki 92200-0895

WASHER,10.5X22X1.6

$

$

Not available

130

Kawasaki 130BA0650

BOLT-FLANGED,6X50
(Superseded to 92003-179)

$1.49

$

In Stock, only 4 left!

0

130A

Kawasaki 130CA1050

BOLT-FLANGED,10X50

$4.49

$

In Stock, Qty 8

0

130B

Kawasaki 130CA1060

BOLT-FLANGED,10X60

$4.49

$

In Stock, only 1 left!

0

172

Kawasaki 172BA0822

BOLT-STUD,8X22
(Superseded to 172G0822)

$2.49

$

In Stock, Qty 20+

0

670

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, Qty 20+

0
