FX850V-AS00 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

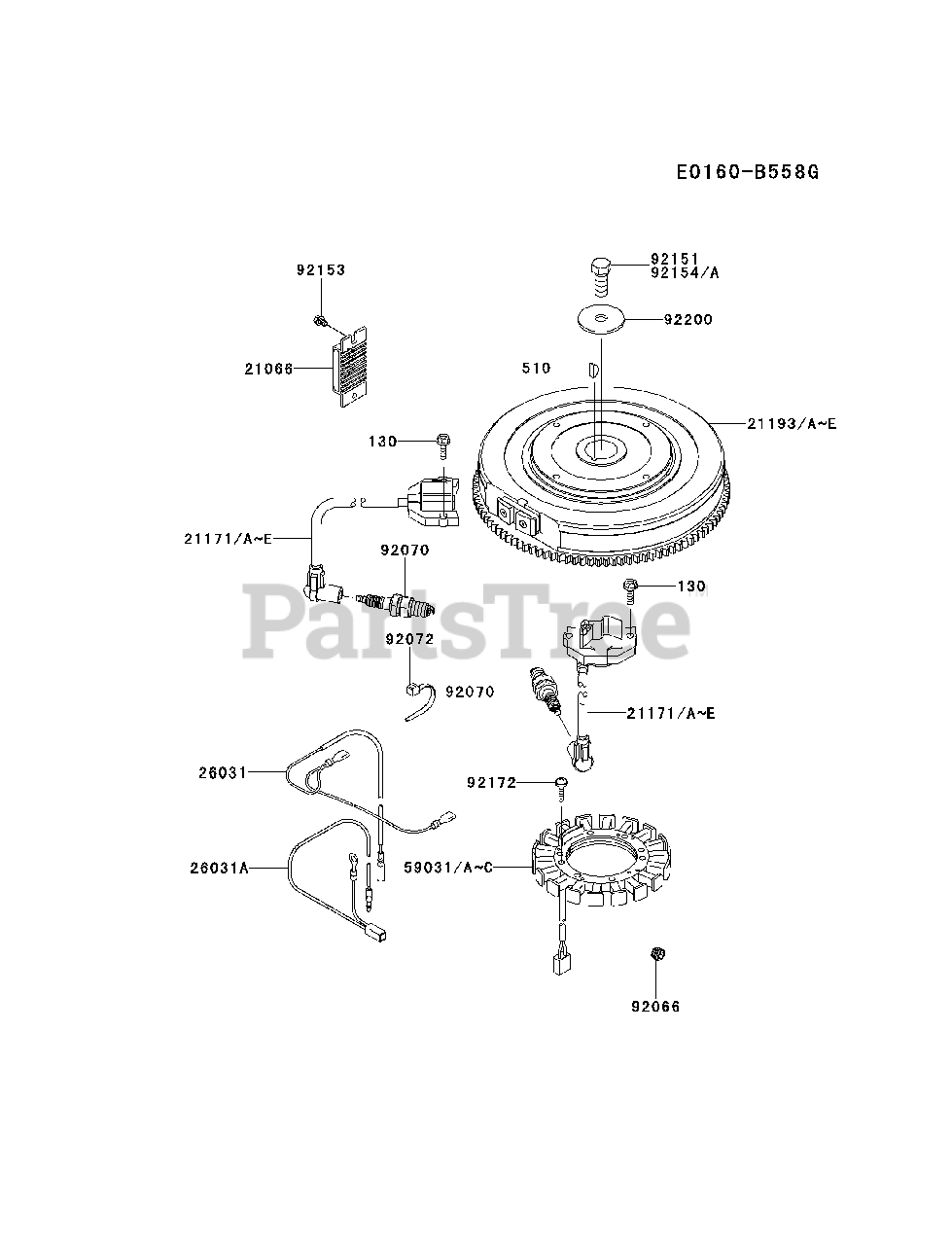

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7011

REGULATOR-VOLTAGE
(Superseded to 21066-7001)

$77.99

$

In Stock, Qty 8

0

21171B

Kawasaki 21171-7036

COIL-ASSY-IGNITION
(Superseded to 21171-0711)

Note: Substitute part, supplied until the stock is exhausted.

$77.99

$

In Stock, Qty 20+

0

21171E

Kawasaki 21171-7047

COIL-ASSY-IGNITION
(Superseded to 21171-0711)

$77.99

$

In Stock, Qty 20+

0

21193B

Kawasaki 21193-7035

FLYWHEEL-ASSY
(Superseded to 21193-0015)

Note: Substitute part, supplied until the stock is exhausted.

$303.99

$

Usually ships in 2-5 days

0

21193E

Kawasaki 21193-7049

FLYWHEEL-ASSY
(Superseded to 21193-0706)

$303.99

$

Usually ships in 2-5 days

0

26031

Kawasaki 26031-7033

HARNESS

$6.99

$

In Stock, Qty 5

0

26031A

Kawasaki 26031-7034

HARNESS

$8.99

$

In Stock, Qty 9

0

59031

Kawasaki 59031-7009

COIL-CHARGING
(Superseded to 59031-7001)

Note: Substitute part, supplied until the stock is exhausted.

$128.99

$

Usually ships in 2-5 days

0

59031A

Kawasaki 59031-7014

COIL-CHARGING
(Superseded to 59031-7009)

Note: Substitute part, supplied until the stock is exhausted.

$128.99

$

Usually ships in 2-5 days

0

59031C

Kawasaki 59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 6

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

Note: Substitute part, supplied until the stock is exhausted.

$4.99

$

In Stock, only 1 left!

0

92153

Kawasaki 92153-7029

BOLT

$1.49

$

In Stock, only 2 left!

0

92154A

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, only 1 left!

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 9

0

92200

Kawasaki 92200-7040

WASHER,12.2X46X3

$3.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 11

0
