FX850-S11 - Kawasaki Engine Valve & Camshaft Parts Diagram

Engine

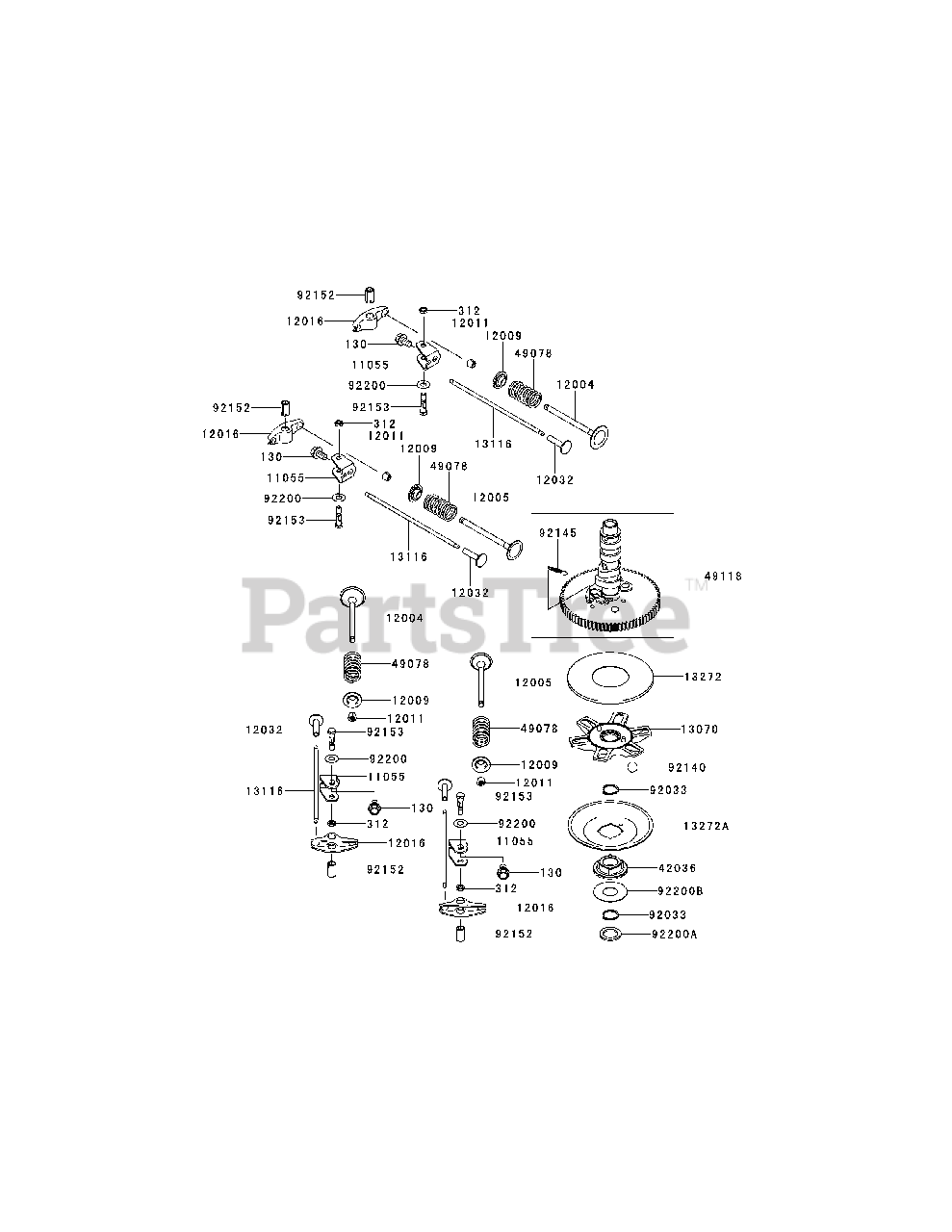

Valve & Camshaft Parts Diagram

  • Title

11055

KM-11054-7009

Bracket

$

$

Not available

12004

Cub Cadet KM-12004-7010

Vavle-Intake
(Superseded to KM-12004-0746)

$21.99

$

In Stock, only 4 left!

0

12005

Cub Cadet KM-12005-0711

Valve-Exhaust
(Superseded to KM-12005-0795)

$34.99

$

In Stock, Qty 6

0

12009

Cub Cadet KM-12009-7004

Retainer-Valve Spring

$3.49

$

In Stock, only 2 left!

0

12011

Cub Cadet KM-12011-2052

Collet

$2.99

$

In Stock, Qty 5

0

12016

Cub Cadet KM-12016-7016

Arm-Rocker
(Superseded to KM-12016-0048)

$16.99

$

In Stock, only 2 left!

0

12032

Cub Cadet KM-12032-7001

Tappet

$8.99

$

In Stock, only 3 left!

0

13070

Cub Cadet KM-13070-7016

Guide
(Superseded to KM-13070-0758)

$5.49

$

In Stock, Qty 10

0

13116

Cub Cadet KM-13116-7006

Rod-Push

$16.99

$

In Stock, only 1 left!

0

13272

Cub Cadet KM-13272-7002

Plate

$7.49

$

Usually ships in 2-5 days

0

13272A

Cub Cadet KM-13272-7003

Plate,Governor

$5.49

$

Usually ships in 2-5 days

0

42036

Cub Cadet KM-42036-7019

Sleeve

$5.49

$

Usually ships in 2-5 days

0

49078

Cub Cadet KM-49078-7008

Spring-Engine Valve

$4.49

$

In Stock, only 3 left!

0

49118

Cub Cadet KM-49118-7026

Camshaft-Comp

$

$

Not available

92033

Cub Cadet KM-92033-7012

Ring-Snap
(Superseded to KM-92033-0782)

$1.49

$

Usually ships in 2-5 days

0

92140

Cub Cadet KM-92140-7005

Ball
(Superseded to KM-92140-0026)

$2.49

$

Usually ships in 3-6 days

0

92145

Cub Cadet KM-92145-7001

Spring
(Superseded to KM-92145-1653)

$1.49

$

In Stock, only 4 left!

0

92152

Cub Cadet KM-92152-7020

Collar
(Superseded to KM-92152-1689)

$5.49

$

In Stock, Qty 9

0

92153

Cub Cadet KM-92153-7100

Bolt, 6x29.5

$3.49

$

In Stock, Qty 7

0

92200

Cub Cadet KM-92200-2151

Washer, 8.1x18x0.5

$1.49

$

In Stock, Qty 8

0

92200A

Cub Cadet KM-92200-7044

Washer, 20.3x29x2.28

$3.49

$

In Stock, only 3 left!

0

92200B

Cub Cadet KM-92200-7045

Washer, 20x46x0.91

$2.99

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130AA0814

Bolt-Flanged, 8x14

$0.99

$

In Stock, Qty 20+

0

312

Cub Cadet KM-312AA0600

Nut-Hex, 6MM

$0.99

$

In Stock, Qty 20+

0
