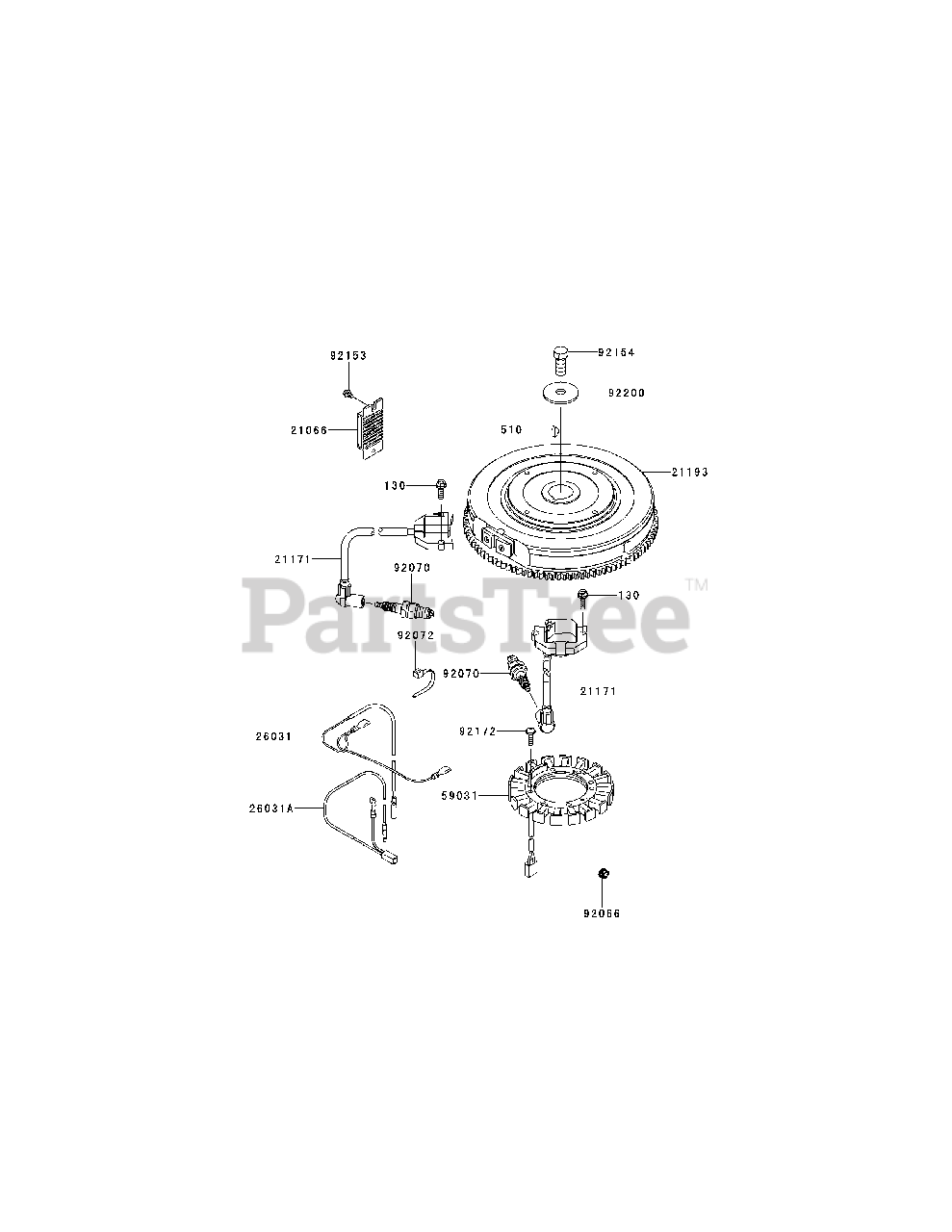

FX850-S11 - Kawasaki Engine Electric Equipment Parts Diagram

Engine

Electric Equipment Parts Diagram

  • Title

21066

Cub Cadet KM-21066-7011

Regulator-Voltage

$77.99

$

In Stock, Qty 8

0

21171

Cub Cadet KM-21171-7047

Coil-Assy-Ignition
(Superseded to KM-21171-0743)

$77.99

$

In Stock, Qty 20+

0

21193

Cub Cadet KM-21193-7049

Flywheel-Assy
(Superseded to KM-21193-0015)

$303.99

$

Usually ships in 2-5 days

0

26031

Cub Cadet KM-26031-7033

Harness

$6.99

$

In Stock, Qty 5

0

26031A

Cub Cadet KM-26031-7034

Harness

$8.99

$

In Stock, Qty 9

0

59031

Cub Cadet KM-59031-7015

Coil-Charging
(Superseded to KM-59031-7010)

$108.99

$

In Stock, only 1 left!

0

92066

Cub Cadet KM-92066-7026

Plug
(Superseded to KM-92066-0881)

$4.49

$

In Stock, Qty 6

0

92070

Cub Cadet KM-BPR4ES

Plug-Spark,RCJ8Y,Solid

$3.49

$

In Stock, Qty 20+

0

92072

Cub Cadet KM-92072-7003

Band

$1.49

$

In Stock, only 3 left!

0

92153

Cub Cadet KM-92153-7029

Bolt

$1.49

$

In Stock, only 2 left!

0

92154

Cub Cadet KM-92154-7003

Bolt, 12x30

$4.99

$

Usually ships in 2-5 days

0

92172

Cub Cadet KM-92172-7018

Screw, 5x20

$0.99

$

In Stock, Qty 9

0

92200

Cub Cadet KM-92200-7040

Washer, 12.2x46x3

$3.49

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130AA0620

Bolt-Flanged, 6x20

$3.49

$

In Stock, Qty 20+

0

510

Cub Cadet KM-510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 11

0
