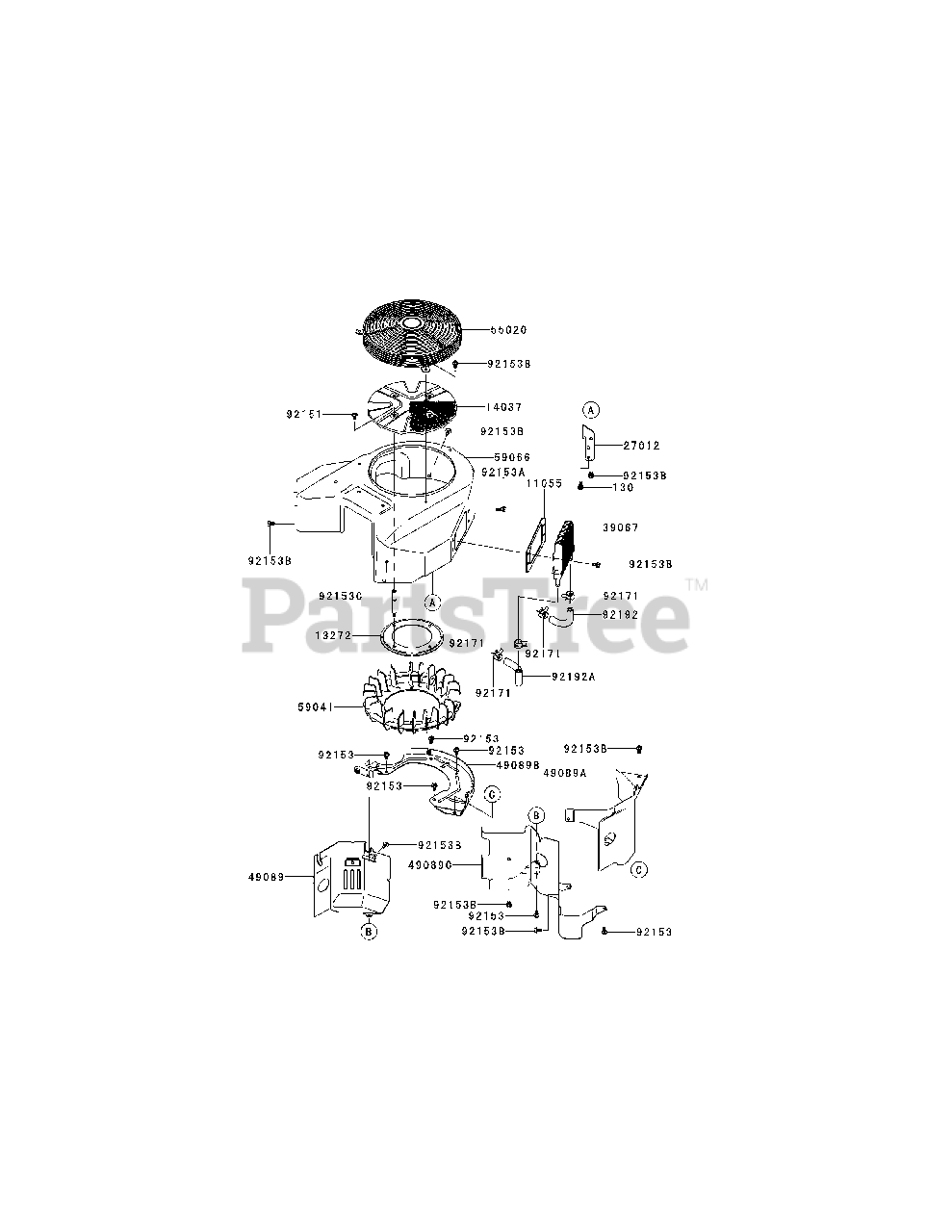

FX850-S11 - Kawasaki Engine Cooling Equipment Parts Diagram

Engine

Cooling Equipment Parts Diagram

  • Title

11055

Cub Cadet KM-11055-7005

Bracket
(Superseded to KM-11056-7280)

$9.49

$

Usually ships in 2-5 days

0

13272

Cub Cadet KM-13272-7006

Plate, Fan
(Superseded to KM-13272-1488)

$10.99

$

Usually ships in 2-5 days

0

14037

Cub Cadet KM-14037-70299H

Screen
(Superseded to KM-14037-0804)

$36.99

$

In Stock, only 1 left!

0

27012

Cub Cadet KM-27012-7009

Hook, Lift

$1.99

$

In Stock, only 1 left!

0

39067

Cub Cadet KM-39067-7007

Cooler-Oil
(Superseded to KM-39067-0024)

$168.99

$

Usually ships in 3-6 days

0

49089

Cub Cadet KM-490897064753

Shroud-Engine

$27.99

$

Usually ships in 3-6 days

0

49089A

Cub Cadet KM-490897065753

Shroud-Engine

$27.99

$

Usually ships in 3-6 days

0

49089B

Cub Cadet KM-49089-7066

Shroud-Engine, Rear
(Superseded to KM-49089-0866)

$31.99

$

Usually ships in 2-5 days

0

49089C

Cub Cadet KM-490897067753

Shroud-Engine, V-Bank

$28.99

$

Usually ships in 3-6 days

0

55020

Cub Cadet KM-55020-70169H

Guard

$49.99

$

Usually ships in 3-6 days

0

59041

Cub Cadet KM-59041-7019

Fan

$19.99

$

In Stock, Qty 6

0

59066

Cub Cadet KM-590667042753

Housing-Fan

$

$

Not available

92151

Cub Cadet KM-92151-7012

Bolt, 6x12
(Superseded to KM-92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Cub Cadet KM-92153-0010

Bolt

$2.99

$

Usually ships in 2-5 days

0

92153A

Cub Cadet KM-92153-7007

Bolt

$4.49

$

In Stock, Qty 20+

0

92153B

Cub Cadet KM-92153-7043

Bolt, 6x12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

92153C

Cub Cadet KM-92153-7101

Bolt
(Superseded to KM-92154-1151)

$3.99

$

Usually ships in 2-5 days

0

92171

Cub Cadet KM-92171-7015

Clamp
(Superseded to KM-92173-1619)

$3.99

$

In Stock, Qty 20+

0

92192

Cub Cadet KM-92192-7089

Tube

$4.49

$

In Stock, Qty 20+

0

92192A

Cub Cadet KM-92192-7090

Tube

$5.99

$

In Stock, Qty 20+

0

130

Cub Cadet KM-130AA0620

Bolt-Flanged, 6x20

$3.49

$

In Stock, Qty 20+

0
