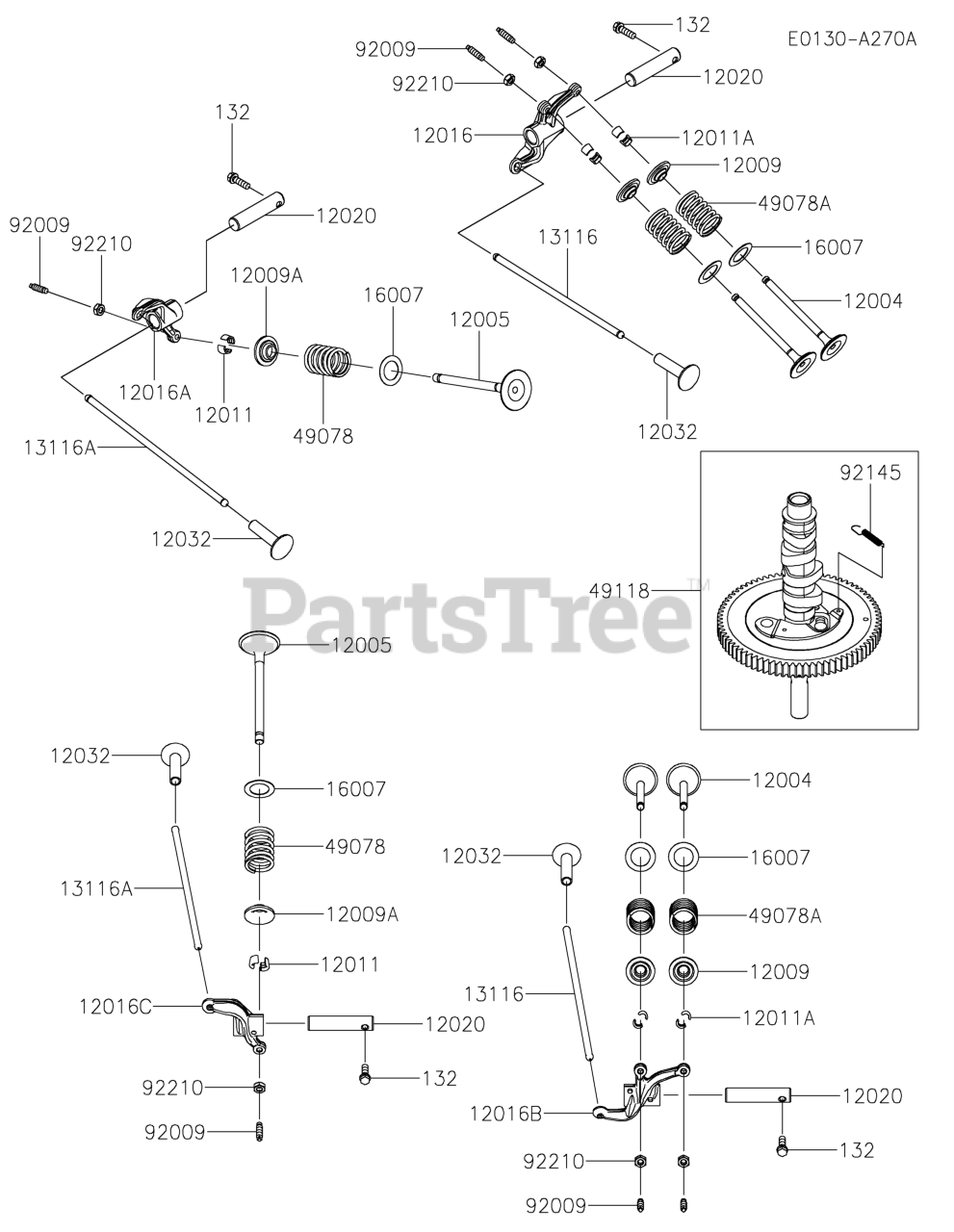

FX820A-AS05 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

VALVE/CAMSHAFT Parts Diagram

  • Title

12004

Kawasaki 12004-0773

VALVE-INTAKE

$15.99

$

Usually ships in 2-5 days

0

12005

Kawasaki 12005-0799

VALVE-EXHAUST

$27.99

$

Usually ships in 2-5 days

0

12009

Kawasaki 12009-2067

RETAINER-VALVE SPRING

$4.49

$

In Stock, only 3 left!

0

12009A

Kawasaki 12009-7004

RETAINER-VALVE SPRING
(Superseded to 12009-7002)

$3.49

$

In Stock, only 2 left!

0

12011

Kawasaki 12011-2052

COLLET

$2.99

$

In Stock, Qty 5

0

12011A

Kawasaki 12011-2056

COLLET

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-0735

ARM-ROCKER,#1,IN

$46.99

$

Usually ships in 2-5 days

0

12016A

Kawasaki 12016-0737

ARM-ROCKER,#1,EX

$34.99

$

Usually ships in 2-5 days

0

12016B

Kawasaki 12016-0739

ARM-ROCKER,#2,IN

$46.99

$

Usually ships in 2-5 days

0

12016C

Kawasaki 12016-0741

ARM-ROCKER,#2,EX

$34.99

$

Usually ships in 2-5 days

0

12020

Kawasaki 12020-0032

SHAFT-ROCKER

$3.49

$

Usually ships in 2-5 days

0

12032

Kawasaki 12032-0036

TAPPET

$9.49

$

Usually ships in 2-5 days

0

13116

Kawasaki 13116-0751

ROD-PUSH

$16.99

$

Usually ships in 2-5 days

0

13116A

Kawasaki 13116-0752

ROD-PUSH

$17.99

$

Usually ships in 2-5 days

0

16007

Kawasaki 16007-0709

SEAT-SPRING
(Superseded to 16007-0715)

$1.49

$

In Stock, only 1 left!

0

49078

Kawasaki 49078-0794

SPRING-ENGINE VALVE

$4.49

$

Usually ships in 2-5 days

0

49078A

Kawasaki 49078-7008

SPRING-ENGINE VALVE
(Superseded to 49078-7005)

$4.49

$

In Stock, only 3 left!

0

49118

Kawasaki 49118-1268

CAMSHAFT-COMP

$

$

Not available

92009

Kawasaki 92009-1109

SCREW,VALVE ADJUST

$2.49

$

In Stock, only 2 left!

0

92145

Kawasaki 92145-1653

SPRING

$1.49

$

In Stock, only 4 left!

0

92210

Kawasaki 92210-1491

NUT,VALVE ADJUST LOCK

$1.49

$

In Stock, only 2 left!

0

132

Kawasaki 132BA0516

BOLT-FLANGED-SMALL,5X16

$

$

Currently unavailable
