FX820A-AS05 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

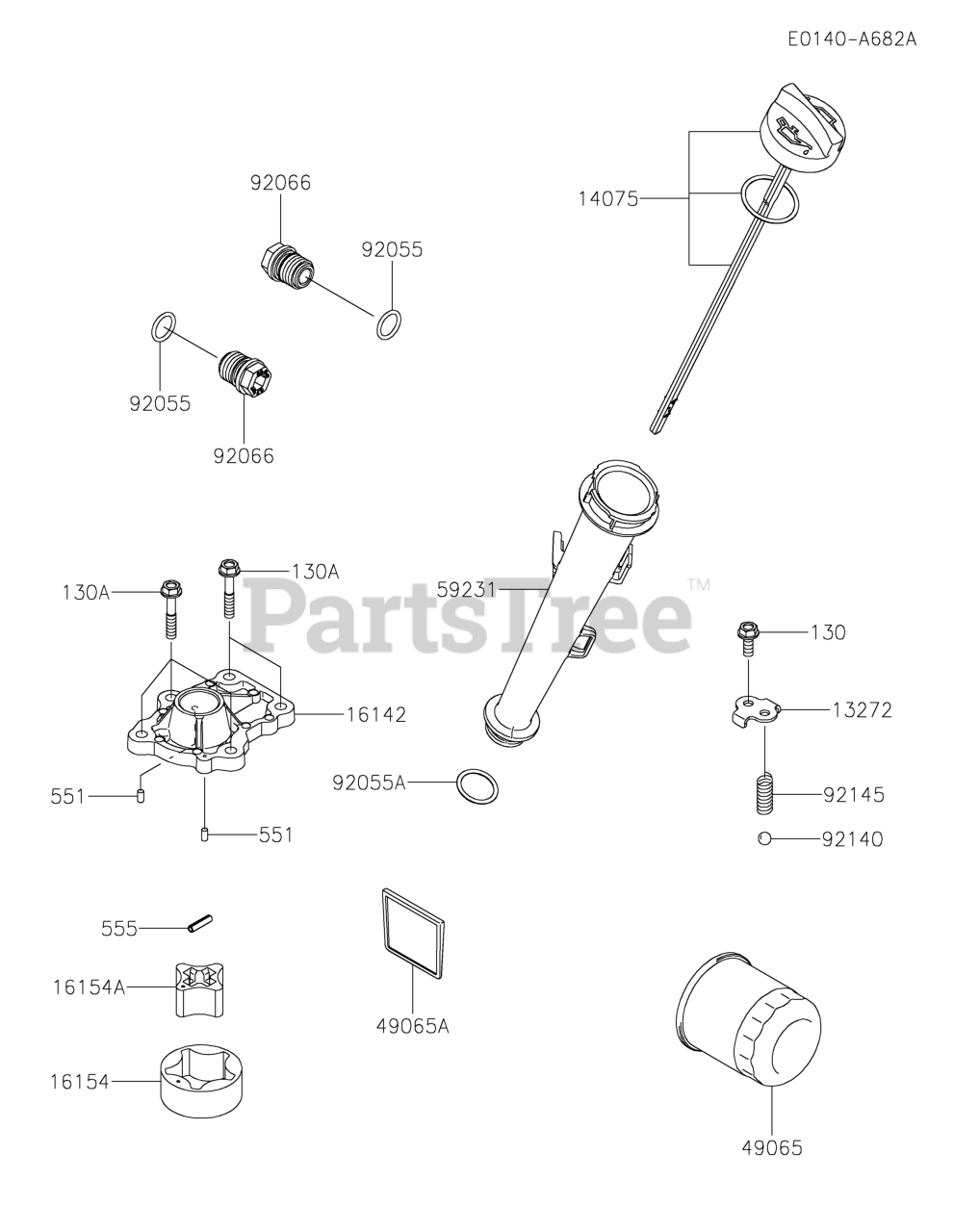

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

13272

Kawasaki 13272-4013

PLATE,RELIEF VALVE

$

$

Not available

14075

Kawasaki 14075-0717

CAP-ASSY

$11.99

$

Usually ships in 2-5 days

0

16142

Kawasaki 16142-0765

COVER-PUMP

$16.99

$

Usually ships in 2-5 days

0

16154

Kawasaki 16154-0772

ROTOR-PUMP,OUTER

$

$

Not available

16154A

Kawasaki 16154-0773

ROTOR-PUMP,INNER

$10.99

$

Usually ships in 2-5 days

0

49065

Kawasaki 49065-0724

FILTER-OIL
(Superseded to 49065-0724BK)

$18.99

$

Usually ships in 2-5 days

0

49065A

Kawasaki 49065-0727

FILTER-OIL

$4.99

$

Usually ships in 2-5 days

0

59231

Kawasaki 59231-0753

FILLER

$9.99

$

Usually ships in 2-5 days

0

92055

Kawasaki 92055-0892

RING-O,15.8X2.4

$0.99

$

In Stock, Qty 20+

0

92055A

Kawasaki 92055-1000

RING-O,22.4X2.65

$0.99

$

Usually ships in 2-5 days

0

92066

Kawasaki 92066-0774

PLUG

$5.49

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7003

BALL,STEEL,13/32

$1.49

$

In Stock, Qty 12

0

92145

Kawasaki 92145-1809

SPRING,OIL RELIEF

$0.99

$

In Stock, Qty 8

0

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, Qty 5

0

130A

Kawasaki 130BA0635

BOLT-FLANGED,6X35
(Superseded to 130B0635)

$1.99

$

In Stock, Qty 8

0

551

Kawasaki 551A0408

PIN-DOWEL,4X8

$0.99

$

Usually ships in 2-5 days

0

555

Kawasaki 555A0418

PIN-SPRING

$

$

Currently unavailable
