FX801V-DS13 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

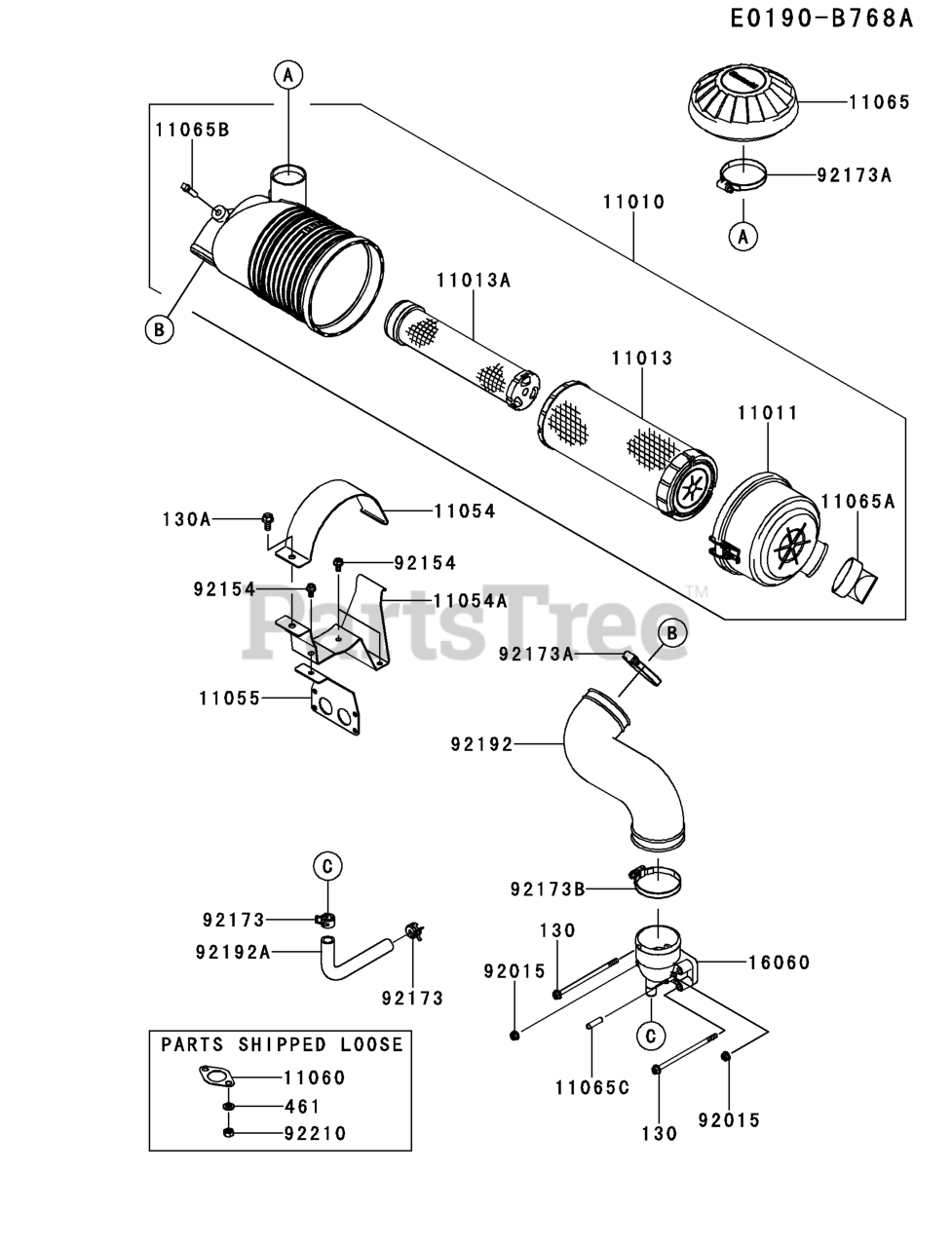

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7028

FILTER-ASSY-AIR

$118.99

$

In Stock, only 2 left!

0

11011

Kawasaki 11011-7056

CASE-AIR FILTER

$46.99

$

In Stock, Qty 13

0

11013

Kawasaki 11013-7044

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7045

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11054

Kawasaki 11054-7013-9X

BRACKET

$

$

Not available

11054A

Kawasaki 11054-7016-9X

BRACKET

$24.99

$

In Stock, only 2 left!

0

11055

Kawasaki 11055-7007-9X

BRACKET
(Superseded to 11054-7017-9X)

$8.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7025

CAP
(Superseded to 11065-1384)

$41.99

$

In Stock, only 3 left!

0

11065A

Kawasaki 11065-7031

CAP

$13.99

$

In Stock, Qty 13

0

11065B

Kawasaki 11065-7032

CAP

$4.49

$

In Stock, only 3 left!

0

11065C

Kawasaki 11065-7037

CAP
(Superseded to 11065-7023)

$0.99

$

In Stock, Qty 5

0

16060

Kawasaki 16060-0720

PIPE-INTAKE

$40.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, only 2 left!

0

92154

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92173

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 15

0

92173A

Kawasaki 92173-7010

CLAMP

$8.49

$

In Stock, Qty 14

0

92173B

Kawasaki 92173-7011

CLAMP

$8.49

$

In Stock, only 1 left!

0

92192

Kawasaki 92192-1911

TUBE,AIR-FILTER

$76.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-7086

TUBE,12.6X18.6X124.6

$6.49

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, Qty 6

0

130

Kawasaki 130AA06120

BOLT-FLANGED,6X120

$3.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA-0816

BOLT-FLANGED,8X16

$1.49

$

Usually ships in 2-5 days

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
