FX801V-DS04 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

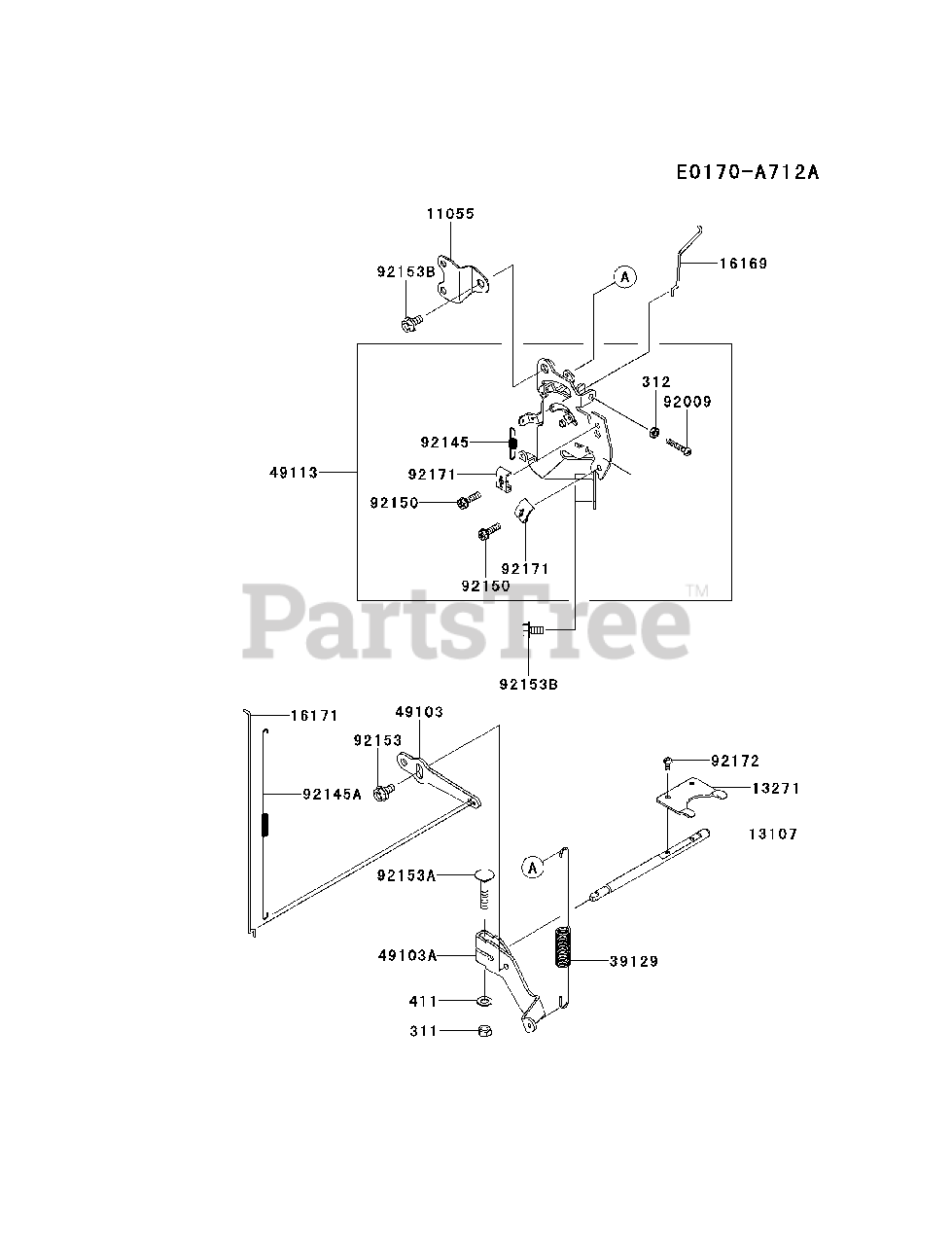

CONTROL-EQUIPMENT Parts Diagram

  • Title

11055

Kawasaki 11055-7001

BRACKET

$3.49

$

In Stock, only 1 left!

0

13107

Kawasaki 13107-7047

SHAFT,GOVERNOR
(Superseded to 13107-7044)

$11.99

$

In Stock, Qty 12

0

13271

Kawasaki 13271-7038

PLATE

$3.49

$

In Stock, Qty 11

0

16169

Kawasaki 16169-7020

LINK-CHOKE
(Superseded to 16169-0007)

$0.99

$

In Stock, Qty 20+

0

16171

Kawasaki 16171-7020

LINK
(Superseded to 16171-0032)

$1.99

$

In Stock, Qty 20+

0

39129

Kawasaki 39129-7020

SPRING-GOVERNOR
(Superseded to 49113-6015)

$34.99

$

In Stock, Qty 7

0

49103

Kawasaki 49103-7012

ARM-GOVERNOR

$3.49

$

In Stock, Qty 13

0

49103A

Kawasaki 49103-7018

ARM-GOVERNOR
(Superseded to 49103-7013)

$3.99

$

In Stock, Qty 12

0

49113

Kawasaki 49113-7060

PANEL-COMP-CONTROL
(Superseded to 49113-6015)

$34.99

$

In Stock, Qty 7

0

92009

Kawasaki 92009-2381

SCREW,5X30

$0.99

$

In Stock, Qty 5

0

92145

Kawasaki 92145-7044

SPRING

$1.99

$

In Stock, Qty 17

0

92145A

Kawasaki 92145-7055

SPRING
(Superseded to 92145-1647)

$

$

Not available

92150

Kawasaki 92150-2182

BOLT,5X18

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-0009

BOLT,6X12

$1.99

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7033

BOLT,6X35

$

$

Not available

92153B

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92171

Kawasaki 92171-7018

CLAMP

$2.99

$

In Stock, Qty 12

0

92172

Kawasaki 92172-7033

SCREW,4X8

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 20+

0

312

Kawasaki 312AA0500

NUT-HEX,5MM

$0.99

$

In Stock, Qty 6

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, Qty 12

0
