FX801V-BS04 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

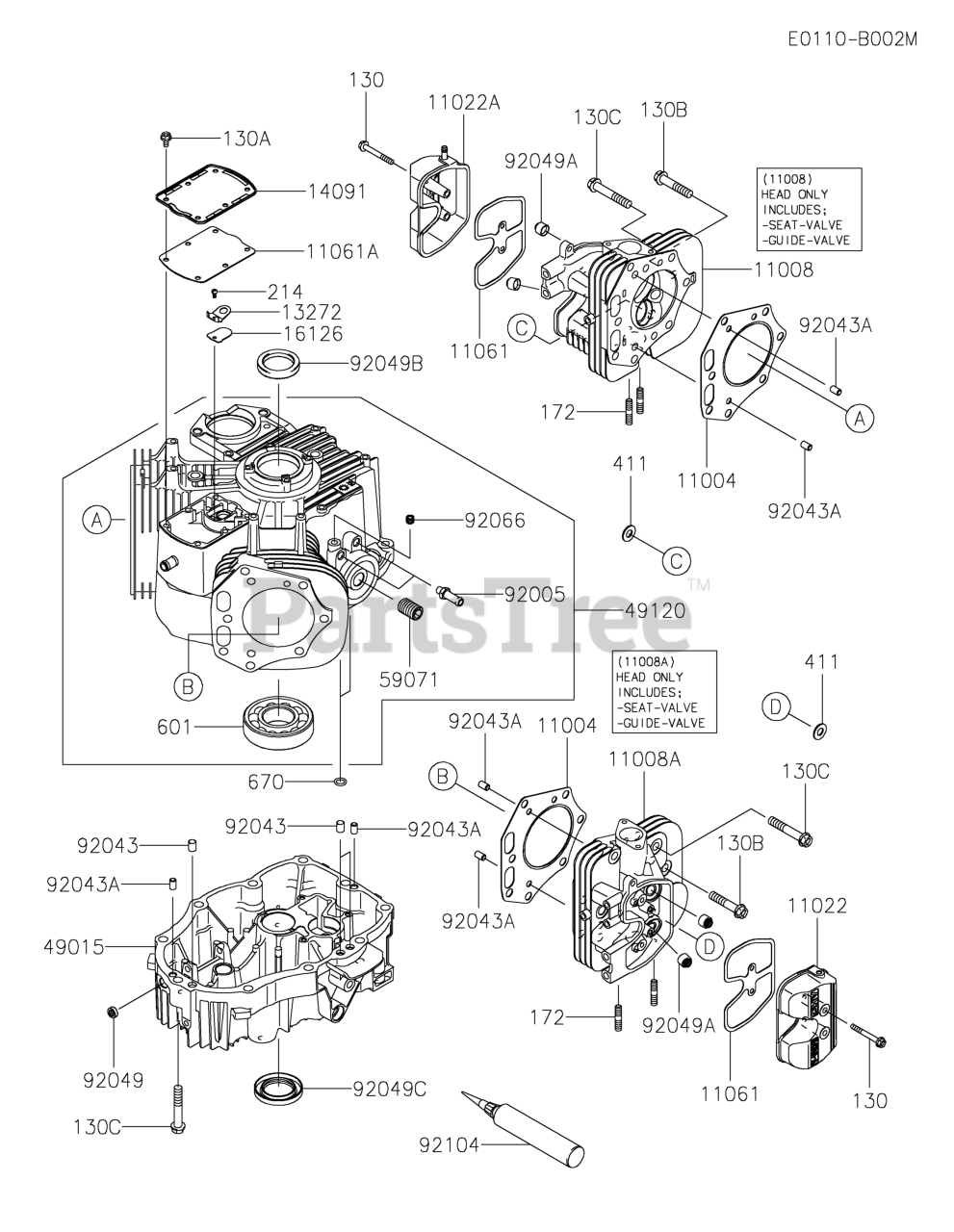

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-7025

GASKET-HEAD

$50.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-1489

HEAD-COMP-CYLINDER,#1

$224.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 11008-1490

HEAD-COMP-CYLINDER,#2

$248.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 11022-0042

CASE-ROCKER,#2
(Superseded to 11022-0034)

$

$

Not available

11022A

Kawasaki 11022-6012

CASE-ROCKER,#1
(Superseded to 11022-6011)

$

$

Not available

11061

Kawasaki 11061-0899

GASKET,CASE-ROCKER
(Superseded to 11061-7080)

$5.99

$

In Stock, Qty 11

0

11061A

Kawasaki 11061-7081

GASKET,BREATHER

$2.99

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-1374

PLATE
(Superseded to 13272-7004)

$1.99

$

In Stock, Qty 7

0

14091

Kawasaki 14091-7060

COVER,BREATHER

$2.99

$

In Stock, only 1 left!

0

16126

Kawasaki 16126-7020

VALVE,BREATHER

$4.99

$

In Stock, Qty 5

0

49015

Kawasaki 49015-0730

COVER-CRANKCASE

$243.99

$

In Stock, only 1 left!

0

49120

Kawasaki 49120-0843

CRANKCASE-COMP

$634.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-0743

JOINT,OIL FILTER

$2.99

$

Usually ships in 2-5 days

0

92005

Kawasaki 92005-0771

FITTING

$7.49

$

In Stock, only 2 left!

0

92043

Kawasaki 92043-0858

PIN

$2.49

$

In Stock, Qty 20+

0

92043A

Kawasaki 92043-1263

PIN,6.2X8X14

$0.99

$

In Stock, Qty 5

0

92049

Kawasaki 92049-7019

SEAL-OIL,SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-7020

SEAL-OIL,7X15X13

$4.49

$

In Stock, Qty 14

0

92049B

Kawasaki 92049-7024

SEAL-OIL,SD 40X54X9 R HS

$6.49

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7026

SEAL-OIL,SD 40X62X8 L VS

$8.99

$

In Stock, only 4 left!

0

92066

Kawasaki 92066-0881

PLUG

$4.49

$

In Stock, Qty 6

0

92104

Kawasaki 92104-0007

GASKET-LIQUID,TB1217H

$51.99

$

In Stock, only 1 left!

0

130

Kawasaki 130BA0650

BOLT-FLANGED,6X50
(Superseded to 92003-179)

$1.49

$

In Stock, Qty 6

0

130A

Kawasaki 130CA-0612

BOLT-FLANGED,6X12

$4.49

$

Usually ships in 2-5 days

0

130B

Kawasaki 130CA1050

BOLT-FLANGED,10X50

$4.49

$

In Stock, Qty 5

0

130C

Kawasaki 130CA1060

BOLT-FLANGED,10X60

$4.49

$

In Stock, only 1 left!

0

172

Kawasaki 172BA0818

BOLT-STUD,8X18

$1.99

$

In Stock, only 3 left!

0

214

Kawasaki 214AA0408

SCREW-PAN+-,4X8
(Superseded to 214B0408)

$3.99

$

In Stock, Qty 5

0

411

Kawasaki 411AA1000

WASHER-PLAIN,10MM
(Superseded to 92200-1095)

$0.99

$

In Stock, only 4 left!

0

601

Kawasaki 601A6308

BEARING-BALL
(Superseded to 92045-0712)

$

$

Not available

670

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, Qty 20+

0
