FX801V-AS19 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

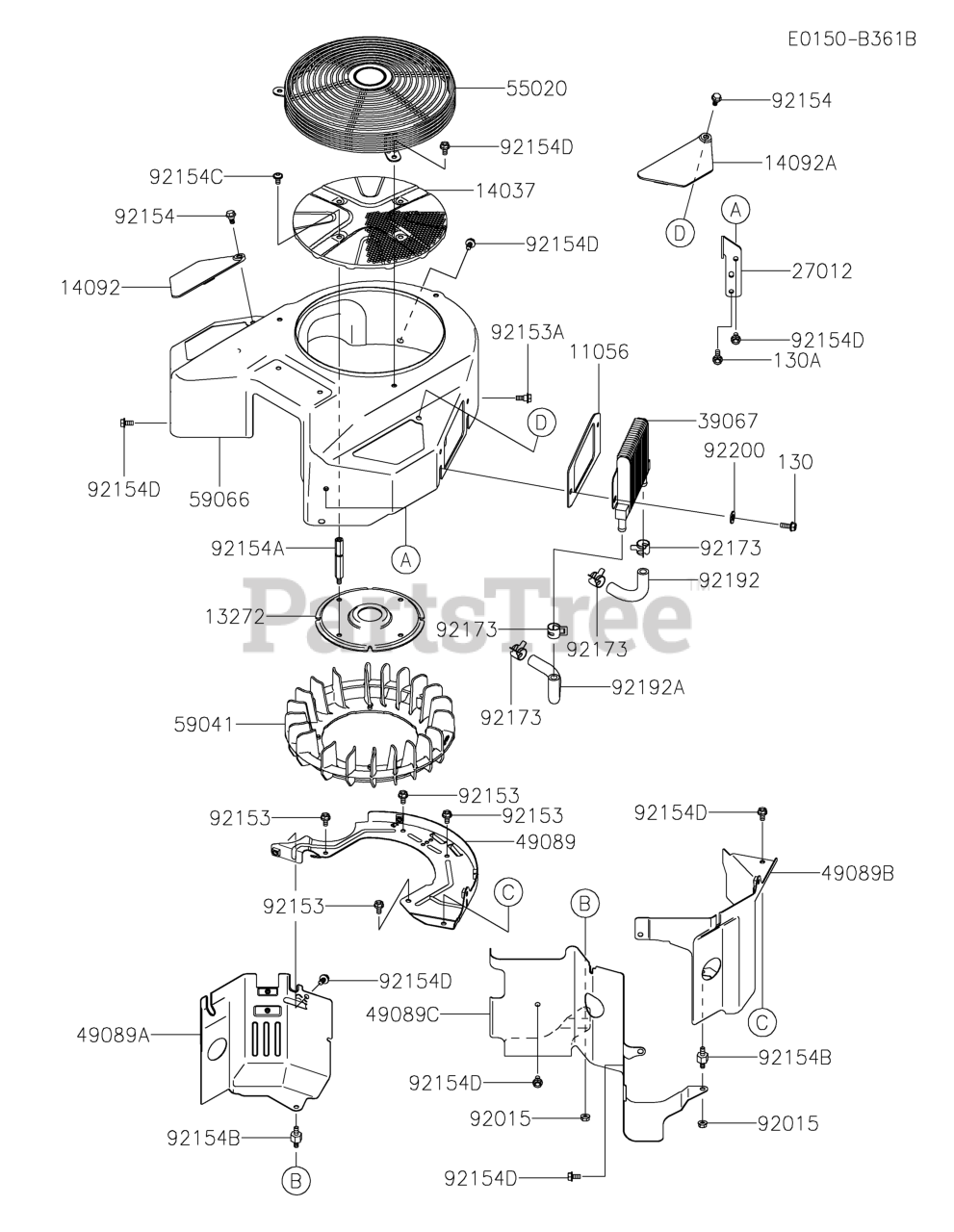

COOLING-EQUIPMENT Parts Diagram

  • Title

11056

Kawasaki 11056-7280

BRACKET
(Superseded to 11055-7005)

$9.49

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-1486

PLATE,FAN

$9.99

$

In Stock, only 1 left!

0

14037

Kawasaki 14037-0804

SCREEN

$36.99

$

In Stock, only 1 left!

0

14092

Kawasaki 14092-1039

COVER

$1.99

$

In Stock, Qty 12

0

14092A

Kawasaki 14092-1040

COVER

$1.99

$

In Stock, Qty 12

0

27012

Kawasaki 27012-7009

HOOK,LIFT

$1.99

$

In Stock, only 1 left!

0

39067

Kawasaki 39067-0018

COOLER-OIL
(Superseded to 39067-7007)

$

$

Not available

49089

Kawasaki 49089-0866

SHROUD-ENGINE,BACK
(Superseded to 49089-0834)

$31.99

$

Usually ships in 2-5 days

0

49089A

Kawasaki 49089-0873

SHROUD-ENGINE,#1
(Superseded to 490890929)

$

$

Not available

49089B

Kawasaki 49089-0899

SHROUD-ENGINE,#2
(Superseded to 49089-0874)

$34.99

$

Usually ships in 2-5 days

0

49089C

Kawasaki 49089-7067-753

SHROUD-ENGINE,V-BANK

$29.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-7016-9H

GUARD

$51.99

$

In Stock, only 1 left!

0

59041

Kawasaki 59041-7019

FAN
(Superseded to 59041-7013)

$19.99

$

In Stock, Qty 6

0

59066

Kawasaki 59066-0740

HOUSING-FAN

$

$

Not available

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-0010

BOLT,FLANGED,6X12

$2.99

$

Usually ships in 2-5 days

0

92153A

Kawasaki 92153-7007

BOLT,FLANGED,6X16

$4.49

$

In Stock, Qty 20+

0

92154

Kawasaki 92154-1119

BOLT

$2.49

$

In Stock, only 3 left!

0

92154A

Kawasaki 92154-1151

BOLT
(Superseded to 92154-2646)

$3.99

$

Usually ships in 2-5 days

0

92154B

Kawasaki 92154-1662

BOLT

$8.99

$

Usually ships in 2-5 days

0

92154C

Kawasaki 92154-2687

BOLT,6X12

$1.49

$

In Stock, Qty 20+

0

92154D

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92173

Kawasaki 92173-1619

CLAMP

$3.99

$

In Stock, Qty 20+

0

92192

Kawasaki 92192-1448

TUBE

$11.99

$

In Stock, Qty 20+

0

92192A

Kawasaki 92192-1449

TUBE

$10.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-2035

WASHER,6.5X18X2.0

$0.99

$

In Stock, Qty 8

0

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 2 left!

0

130A

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0
