FX801V-AS13 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

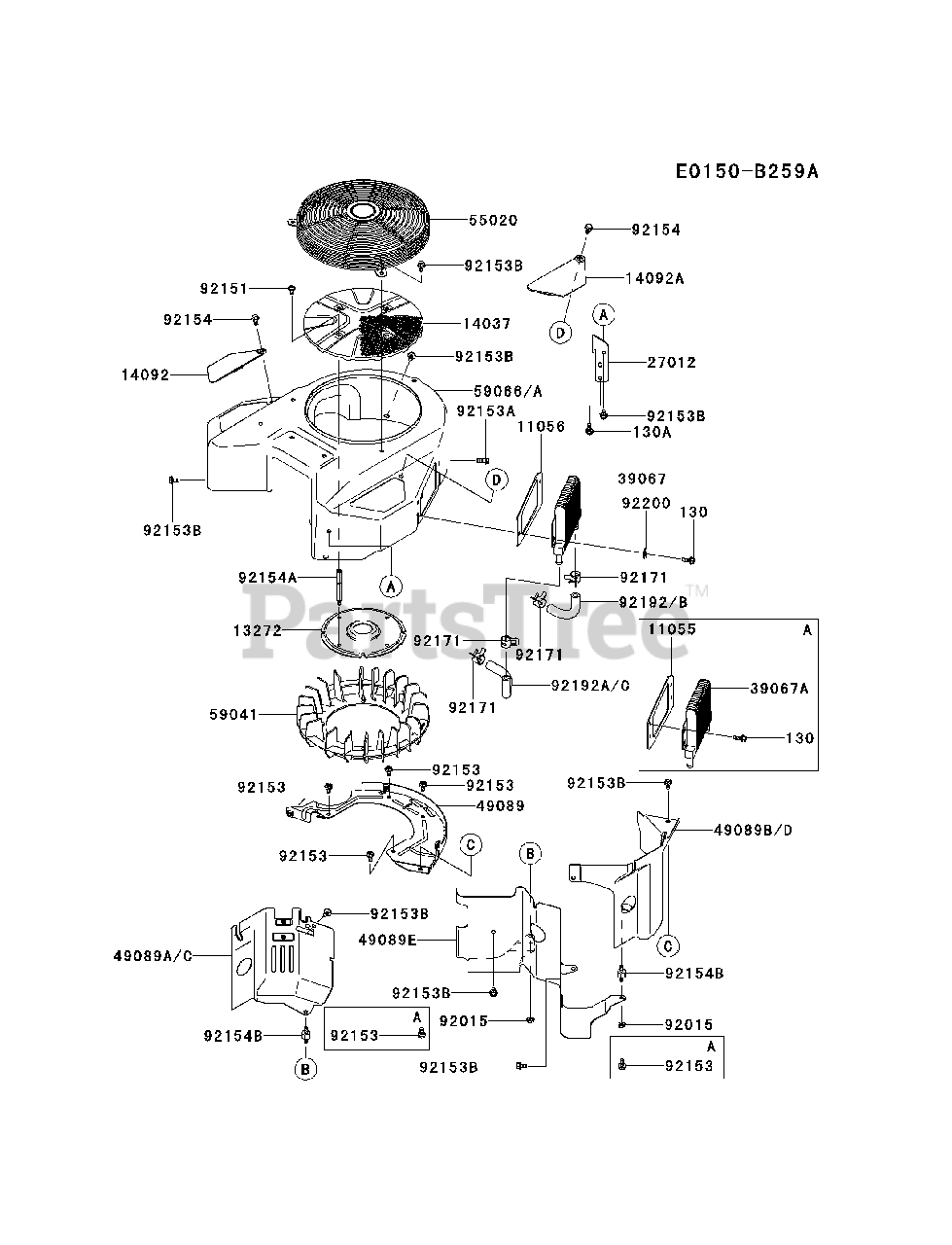

COOLING-EQUIPMENT Parts Diagram

  • Title

11055

Kawasaki 11055-7005

BRACKET
(Superseded to 11056-7280)

$9.49

$

Usually ships in 2-5 days

0

13272

Kawasaki 13272-1486

PLATE,FAN

$9.99

$

Usually ships in 2-5 days

0

14037

Kawasaki 14037-7029-9H

SCREEN

$

$

Not available

14092

Kawasaki 14092-1039

COVER

$1.99

$

In Stock, only 2 left!

0

14092A

Kawasaki 14092-1040

COVER

$1.99

$

In Stock, only 2 left!

0

27012

Kawasaki 27012-7009

HOOK,LIFT

$1.99

$

In Stock, only 1 left!

0

39067A

Kawasaki 39067-7007

COOLER-OIL
(Superseded to 39067-0018)

$

$

Not available

49089

Kawasaki 49089-0866

SHROUD-ENGINE,BACK
(Superseded to 49089-0834)

$31.99

$

Usually ships in 2-5 days

0

49089C

Kawasaki 49089-7064-753

SHROUD-ENGINE,#1

$30.99

$

Usually ships in 2-5 days

0

49089D

Kawasaki 49089-7065-753

SHROUD-ENGINE,#2
(Superseded to 49089-0904)

$34.99

$

Usually ships in 2-5 days

0

49089E

Kawasaki 49089-7067-753

SHROUD-ENGINE,V-BANK

$29.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-7016-9H

GUARD

$51.99

$

In Stock, only 1 left!

0

59041

Kawasaki 59041-7019

FAN
(Superseded to 59041-7013)

$19.99

$

In Stock, Qty 7

0

59066

Kawasaki 59066-0038-753

HOUSING-FAN

$

$

Not available

92151

Kawasaki 92151-7012

BOLT,6X12
(Superseded to 92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-0010

BOLT,FLANGED,6X12

$2.99

$

Usually ships in 2-5 days

0

92153A

Kawasaki 92153-7007

BOLT,FLANGED,6X16

$4.49

$

In Stock, Qty 18

0

92153B

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92154

Kawasaki 92154-1119

BOLT

$2.49

$

In Stock, only 3 left!

0

92154A

Kawasaki 92154-1151

BOLT
(Superseded to 92154-2646)

$3.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-7015

CLAMP
(Superseded to 92173-1619)

$3.99

$

In Stock, Qty 6

0

92192B

Kawasaki 92192-7089

TUBE

$4.49

$

In Stock, Qty 20+

0

92192C

Kawasaki 92192-7090

TUBE

$5.99

$

In Stock, only 2 left!

0

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 2 left!

0

130A

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0
