FX730V-ES27 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

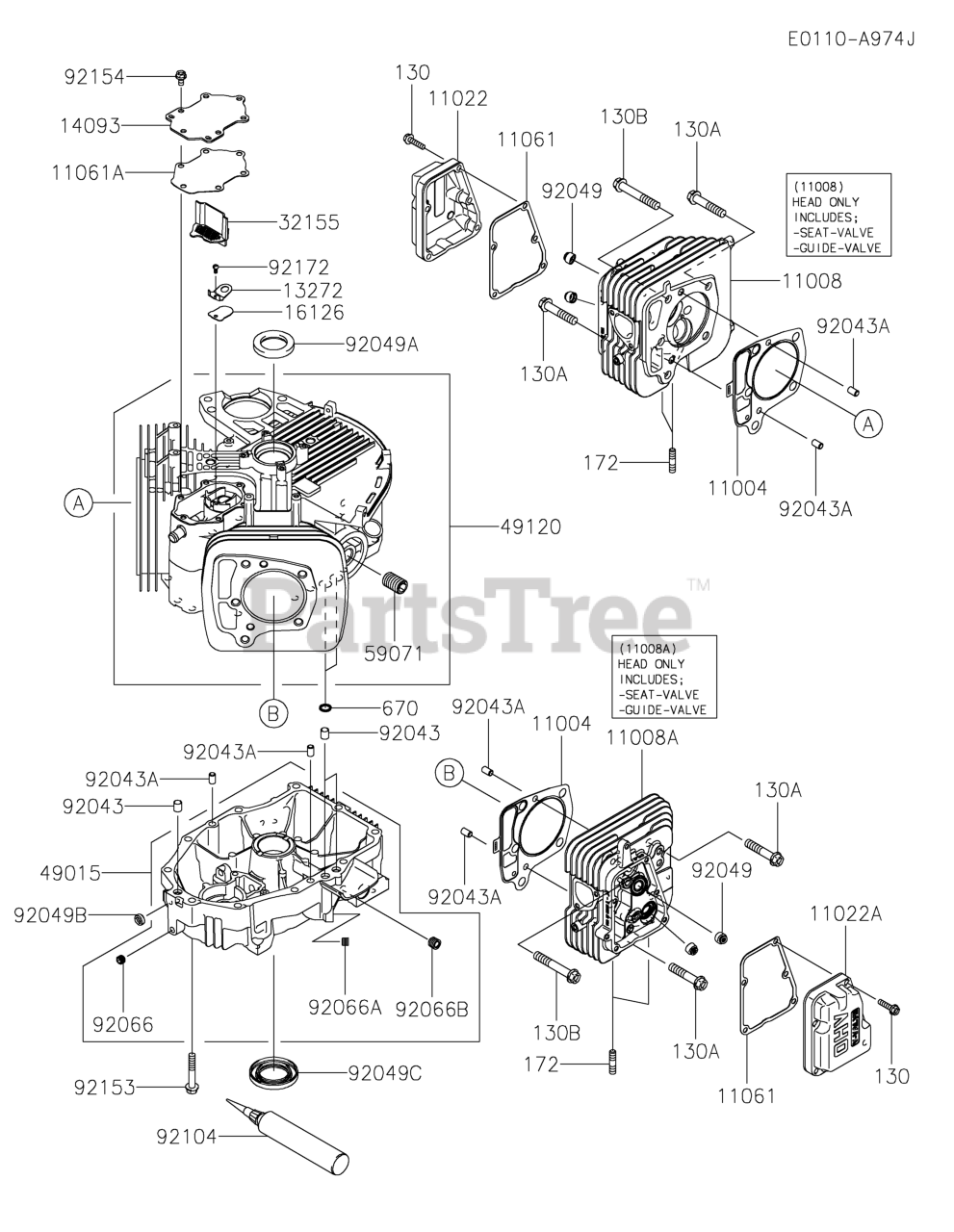

CYLINDER/CRANKCASE Parts Diagram

  • Title
11004

Kawasaki 11004-0762

GASKET-HEAD

$27.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-0986

HEAD-COMP-CYLINDER,#1

$235.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 11008-0987

HEAD-COMP-CYLINDER,#2

$237.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 11022-0046

CASE-ROCKER,#1CYL
(Superseded to 11022-0710)

$17.99

$

In Stock, Qty 5

0

11022A

Kawasaki 11022-0047

CASE-ROCKER,#2CYL
(Superseded to 11022-0038)

$17.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-1285

GASKET,CASE-ROCKER

$4.49

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7094

GASKET,BREATHER
(Superseded to 11061-7084)

$8.99

$

In Stock, Qty 20+

0

13272

Kawasaki 13272-1374

PLATE
(Superseded to 13272-7004)

$1.99

$

In Stock, Qty 8

0

14093

Kawasaki 14093-0455

COVER,BREATHER

$2.99

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-7020

VALVE,BREATHER

$4.99

$

In Stock, Qty 20+

0

32155

Kawasaki 32155-2214

PIPE,BREATHER
(Superseded to 32155-7003)

$2.99

$

In Stock, Qty 12

0

49015

Kawasaki 49015-0023

COVER-CRANKCASE
(Superseded to 49015-7106)

$204.99

$

In Stock, only 4 left!

0

49120

Kawasaki 49120-0858

CRANKCASE-COMP
(Superseded to 49120-0733)

$609.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-0743

JOINT,OIL FILTER

$2.99

$

Usually ships in 2-5 days

0

$2.49

$

In Stock, Qty 20+

0

92043A

Kawasaki 92043-1263

PIN,6.2X8X14

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-7001

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7010

SEAL-OIL,SD 35X48X8 R HS

$3.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7019

SEAL-OIL,SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7028

SEAL-OIL,38X62X8MTCLV

$14.99

$

In Stock, Qty 20+

0

92066

$3.99

$

Usually ships in 2-5 days

0

92066A

$4.49

$

In Stock, Qty 6

0

92066B

$1.99

$

Usually ships in 2-5 days

0

92104

Kawasaki 92104-0007

GASKET-LIQUID,TB1217H

$51.99

$

In Stock, Qty 16

0

92153

$2.99

$

In Stock, Qty 20+

0

92154

$0.99

$

In Stock, Qty 20+

0

92172

$0.99

$

In Stock, only 3 left!

0

130

Kawasaki 130BA0625

BOLT-FLANGED,6X25
(Superseded to 92003-177)

$1.49

$

In Stock, Qty 20+

0

130A

Kawasaki 130CA1050

BOLT-FLANGED,10X50

$4.49

$

In Stock, Qty 20+

0

130B

Kawasaki 130CA1065

BOLT-FLANGED,10X65
(Superseded to 130P1065)

$2.99

$

In Stock, Qty 20+

0

172

Kawasaki 172BA0822

BOLT-STUD,8X22
(Superseded to 172G0822)

$2.49

$

In Stock, Qty 20+

0

670

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, Qty 20+

0
