FX730V-AS42 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

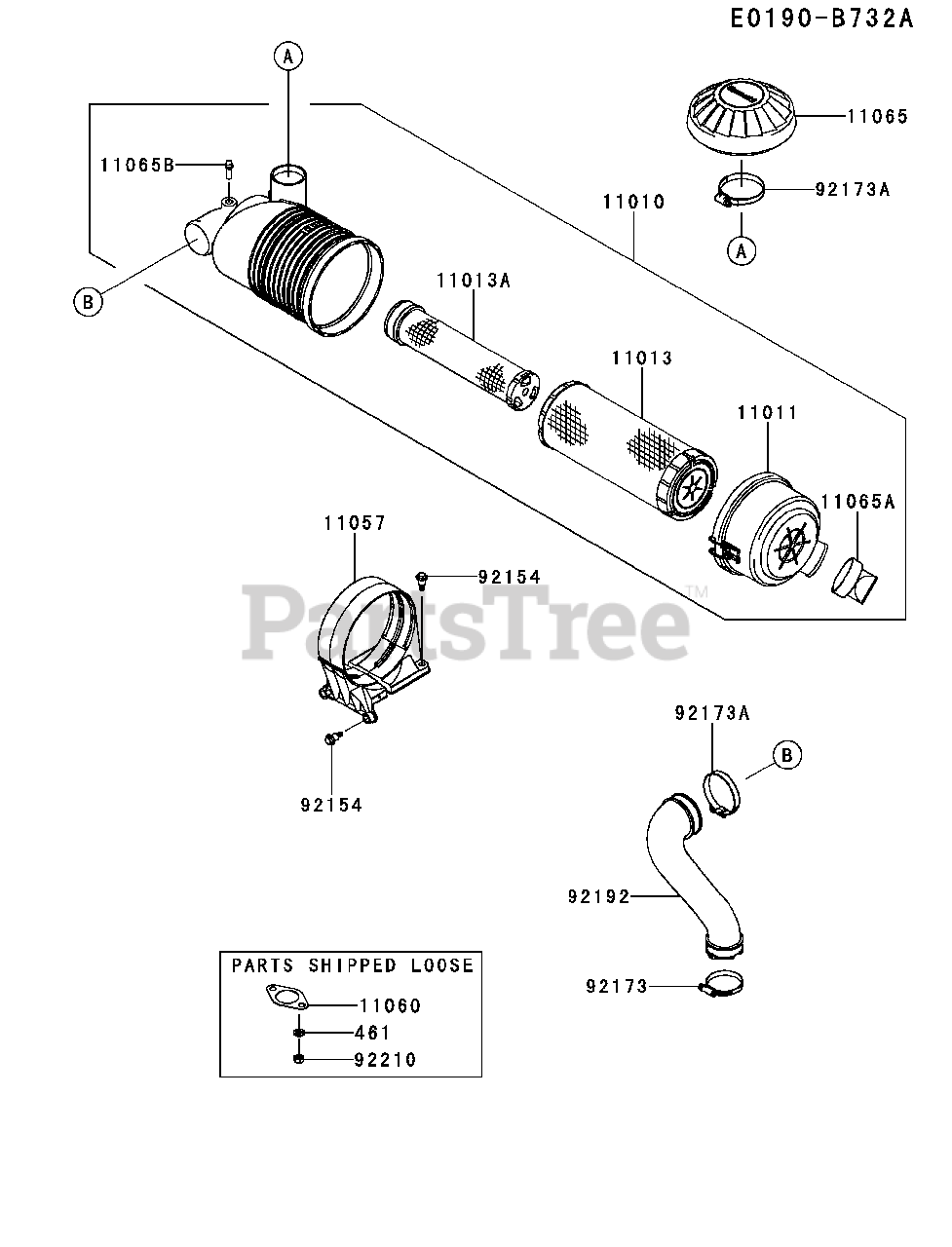

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 110107028

FILTER-ASSY-AIR

$118.99

$

In Stock, Qty 20+

0

11011

Kawasaki 110117056

CASE-AIR FILTER

$46.99

$

In Stock, Qty 20+

0

11013

Kawasaki 110137044

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 110137045

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11057

Kawasaki 110570803

BRACKET,A/C BAND

$12.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 110607016

GASKET

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 110657025

CAP
(Superseded to 11065-7006)

$

$

Not available

11065A

Kawasaki 110657031

CAP

$13.99

$

In Stock, Qty 20+

0

11065B

Kawasaki 110657032

CAP

$4.49

$

In Stock, only 3 left!

0

92154

Kawasaki 921542665

BOLT

$0.99

$

Usually ships in 2-5 days

0

92173

Kawasaki 921737009

CLAMP

$8.49

$

In Stock, only 2 left!

0

92173A

Kawasaki 921737010

CLAMP

$8.49

$

In Stock, Qty 14

0

92192

Kawasaki 921921434

TUBE,A/C

$15.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 922107027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
