FX730V-AS38 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

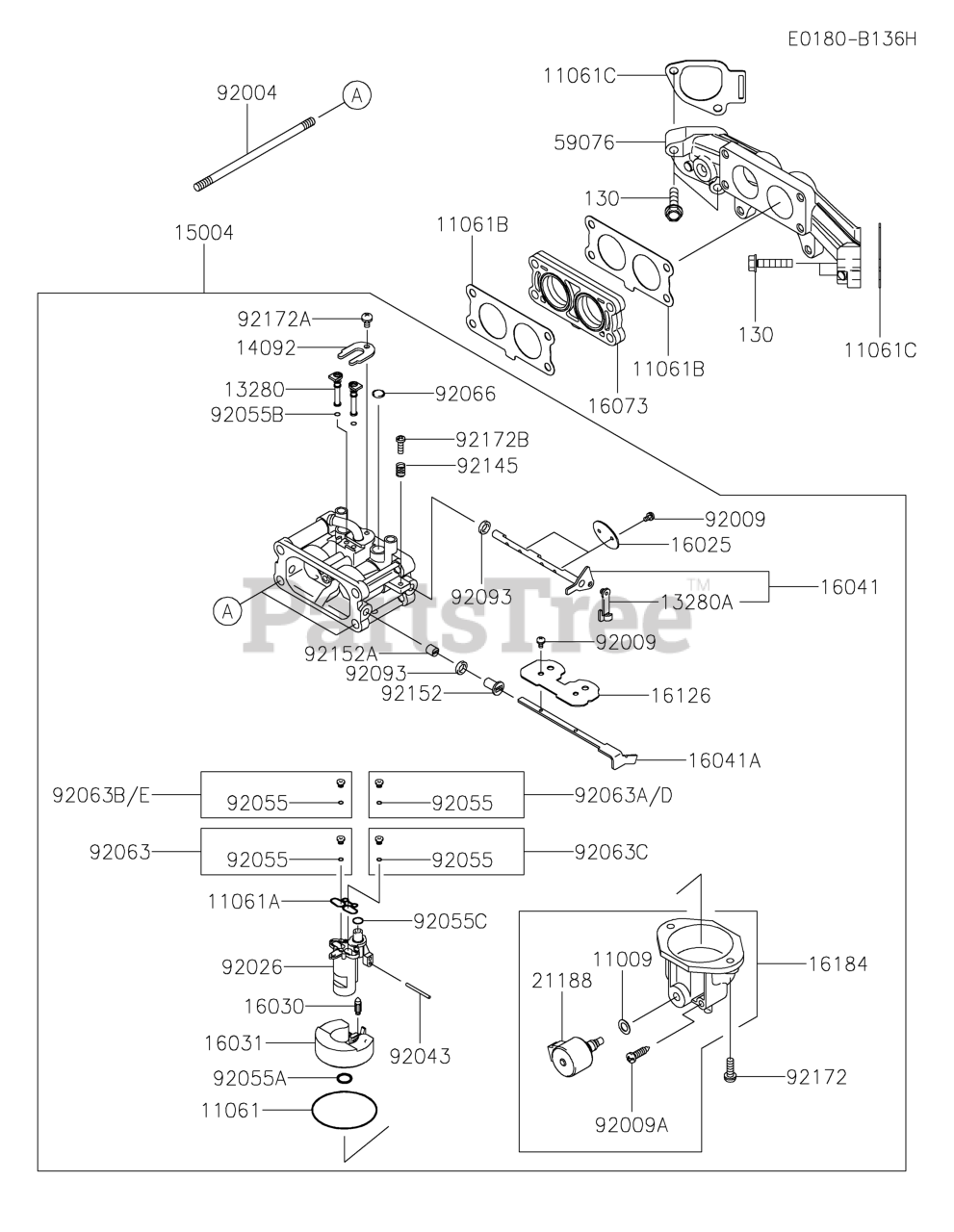

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 11009-2056

GASKET,SCREW-CARBURETOR
(Superseded to 317472-6145A)

$0.99

$

In Stock, Qty 15

0

11061

Kawasaki 11061-1286

GASKET,FLOAT CHAMBER

$2.49

$

In Stock, Qty 11

0

11061A

Kawasaki 11061-7037

GASKET,CARB SPACER

$6.99

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7092

GASKET,CARBURETOR/MANIFOLD

$1.49

$

In Stock, Qty 20+

0

11061C

Kawasaki 11061-7093

GASKET,MANIFOLD
(Superseded to 11061-7085)

$1.99

$

In Stock, Qty 15

0

13280

Kawasaki 13280-7003

HOLDER

$13.99

$

In Stock, only 2 left!

0

13280A

Kawasaki 13280-7004

HOLDER

$8.99

$

In Stock, Qty 20+

0

14092

Kawasaki 14092-7001

COVER

$6.49

$

Usually ships in 2-5 days

0

15004

Kawasaki 15004-1011

CARBURETOR-ASSY

$442.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 16025-0025

VALVE-THROTTLE

$24.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-7004

VALVE-FLOAT

$25.99

$

In Stock, Qty 16

0

16031

Kawasaki 16031-7005

FLOAT

$28.99

$

In Stock, only 2 left!

0

16041

Kawasaki 16041-7052

SHAFT-CARBURETOR,THROTTLE

$39.99

$

Usually ships in 2-5 days

0

16041A

Kawasaki 16041-7053

SHAFT-CARBURETOR,CHOKE

$39.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-0875

INSULATOR

$9.99

$

In Stock, only 1 left!

0

16126

Kawasaki 16126-7022

VALVE

$5.49

$

Usually ships in 2-5 days

0

16184

Kawasaki 16184-7023

CHAMBER-ASSY-FLOAT

$222.99

$

In Stock, only 1 left!

0

21188

Kawasaki 21188-7003

SOLENOID

$95.99

$

In Stock, Qty 14

0

59076

Kawasaki 59076-0008

MANIFOLD-INTAKE
(Superseded to 59076-7018)

$131.99

$

In Stock, only 1 left!

0

92004

Kawasaki 92004-0723

BOLT-STUD,6X115

$2.99

$

In Stock, Qty 13

0

92009

Kawasaki 92009-7003

SCREW

$0.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-7006

SCREW,DRAIN

$1.49

$

In Stock, only 3 left!

0

92026

Kawasaki 92026-7011

SPACER

$8.49

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-7016

PIN,FLOAT

$2.49

$

In Stock, only 4 left!

0

92055

Kawasaki 92055-7013

RING-O

$0.99

$

In Stock, Qty 20+

0

92055A

Kawasaki 92055-7016

RING-O

$2.49

$

In Stock, Qty 10

0

92055B

Kawasaki 92055-7023

RING-O

$6.99

$

In Stock, only 2 left!

0

92055C

Kawasaki 92055-7024

RING-O

$0.99

$

In Stock, Qty 20+

0

92063

Kawasaki 92063-0723

JET-MAIN,#113

$9.49

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-7069

JET-MAIN,#108, SEA-LEVEL TO 3,280FT ELEVATION

$30.99

$

Usually ships in 2-5 days

0

92063B

Kawasaki 92063-7119

JET-MAIN,#106

$30.99

$

Usually ships in 2-5 days

0

92063C

Kawasaki 92063-7135

JET-MAIN,#115

$19.99

$

Usually ships in 2-5 days

0

92063D

Kawasaki 92063-7154

JET-MAIN,#111,3280FT

$13.99

$

Usually ships in 2-5 days

0

92063E

Kawasaki 92063-7161

JET-MAIN,#109,3280FT

$8.99

$

Usually ships in 2-5 days

0

92066

Kawasaki 92066-0780

PLUG,WELCH

$1.49

$

In Stock, Qty 20+

0

92093

Kawasaki 92093-7002

SEAL,D=6.9

$2.49

$

In Stock, Qty 7

0

92145

Kawasaki 92145-7039

SPRING

$2.99

$

In Stock, Qty 20+

0

92152

Kawasaki 92152-7018

COLLAR

$3.49

$

In Stock, only 1 left!

0

92152A

Kawasaki 92152-7019

COLLAR

$2.49

$

In Stock, Qty 11

0

92172

Kawasaki 92172-7005

SCREW,M5

$1.49

$

In Stock, only 2 left!

0

92172A

Kawasaki 92172-7006

SCREW,M4

$1.49

$

In Stock, only 4 left!

0

92172B

Kawasaki 92172-7039

SCREW,THROTTLE ADJUST

$1.49

$

In Stock, Qty 20+

0

130

Kawasaki 130BA0630

BOLT-FLANGED,6X30
(Superseded to 130B0630)

$1.99

$

In Stock, only 3 left!

0
