FX730V-AS35 - Kawasaki Engine FX730V-AS35 VALVE & CAMSHAFT Parts Diagram

Engine

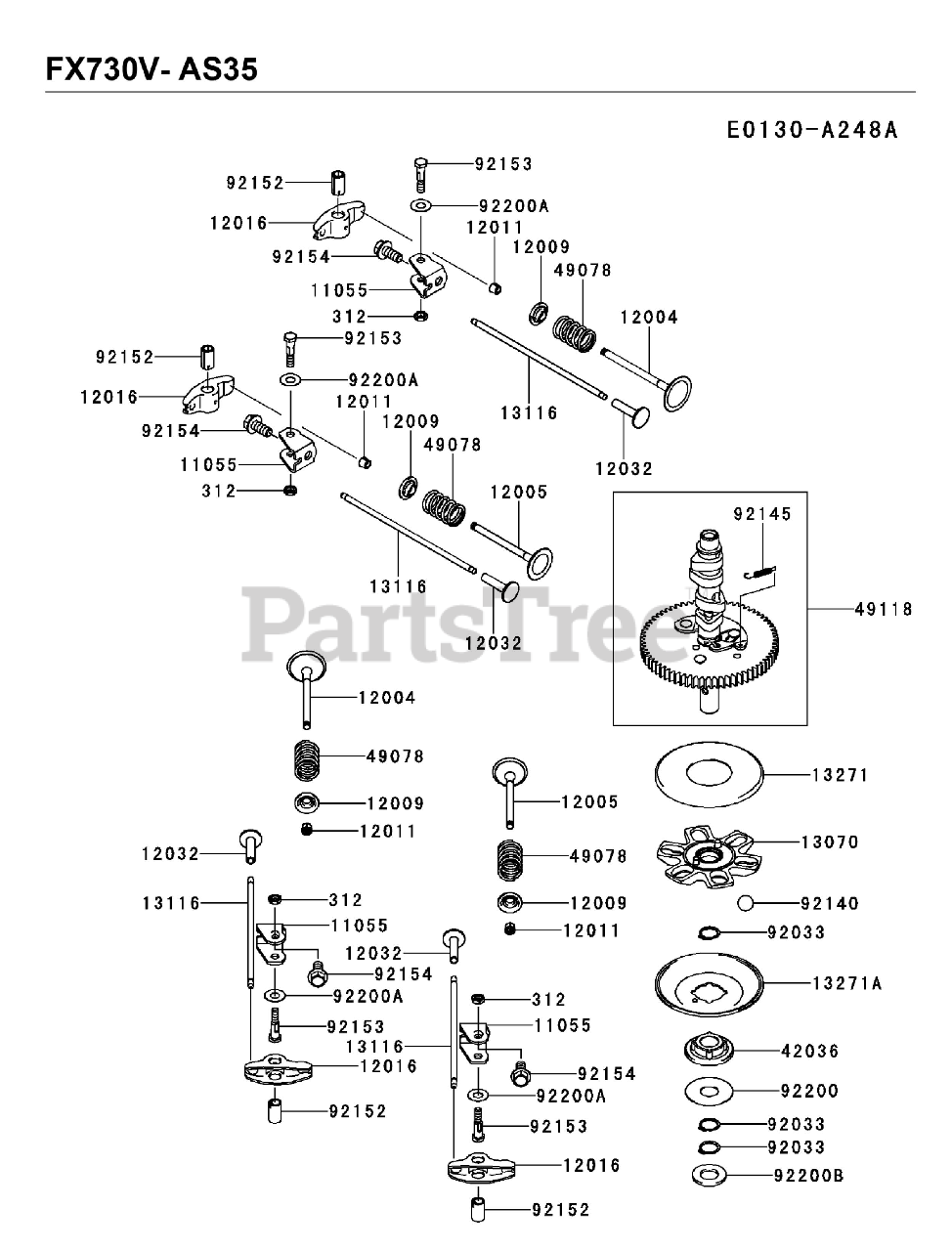

FX730V-AS35 VALVE & CAMSHAFT Parts Diagram

  • Title

11055

Cub Cadet KM-11055-7009

BRACKET

$3.49

$

In Stock, only 2 left!

0

12004

Cub Cadet KM-12004-0733

VALVE-INTAKE

$25.99

$

In Stock, only 1 left!

0

12005

Cub Cadet KM-12005-0777

VALVE-EXHAUST

$27.99

$

In Stock, Qty 5

0

12009

Cub Cadet KM-12009-7001

RETAINER-VALVE SPRING

$2.49

$

In Stock, Qty 5

0

12011

Cub Cadet KM-12011-2056

COLLET

$2.99

$

In Stock, Qty 20+

0

12016

Cub Cadet KM-12016-0040

ARM-ROCKER

$13.99

$

In Stock, only 3 left!

0

12032

Cub Cadet KM-12032-7001

TAPPET

$8.99

$

In Stock, only 3 left!

0

13070

Cub Cadet KM-13070-7017

GUIDE,GOVERNOR

$4.99

$

Usually ships in 2-5 days

0

13116

Cub Cadet KM-13116-0725

ROD-PUSH

$9.49

$

In Stock, Qty 14

0

13271

Cub Cadet KM-13271-7007

PLATE

$5.49

$

In Stock, only 3 left!

0

13271A

Cub Cadet KM-13271-7021

PLATE,GOVERNOR

$5.49

$

In Stock, Qty 13

0

42036

Cub Cadet KM-42036-7010

SLEEVE

$5.99

$

In Stock, only 1 left!

0

49078

Cub Cadet KM-49078-7002

SPRING-ENGINE VALVE,IN

$6.99

$

In Stock, only 4 left!

0

49118

Cub Cadet KM-49118-7022

CAMSHAFT-COMP
(Superseded to KM-49118-1259)

$85.99

$

Usually ships in 3-6 days

0

92033

Cub Cadet KM-92033-0778

RING-SNAP
(Superseded to KM-92153-7033)

$0.99

$

In Stock, Qty 9

0

92140

Cub Cadet KM-92140-7005

BALL
(Superseded to KM-92140-0026)

$2.49

$

Usually ships in 3-6 days

0

92145

Cub Cadet KM-92145-1653

SPRING

$1.49

$

In Stock, only 4 left!

0

92152

Cub Cadet KM-92152-1689

COLLAR

$5.49

$

In Stock, Qty 9

0

92153

Cub Cadet KM-92153-7100

BOLT,6X29.5

$3.49

$

In Stock, Qty 7

0

92154

Cub Cadet KM-92154-1267

BOLT,8X18.2

$0.99

$

In Stock, Qty 18

0

92200

Cub Cadet KM-92200-0945

WASHER,16X42X0.91

$0.99

$

In Stock, Qty 11

0

92200A

Cub Cadet KM-92200-2151

WASHER,8.1X18X0.5

$1.49

$

In Stock, Qty 8

0

92200B

Cub Cadet KM-92200-7048

WASHER,16.3X30X2.28

$2.49

$

In Stock, Qty 7

0

312

Cub Cadet KM-312AA0600

NUT-HEX,6MM

$0.99

$

In Stock, Qty 20+

0
