FX730V-AS35 - Kawasaki Engine FX730V-AS35 STARTER Parts Diagram

Engine

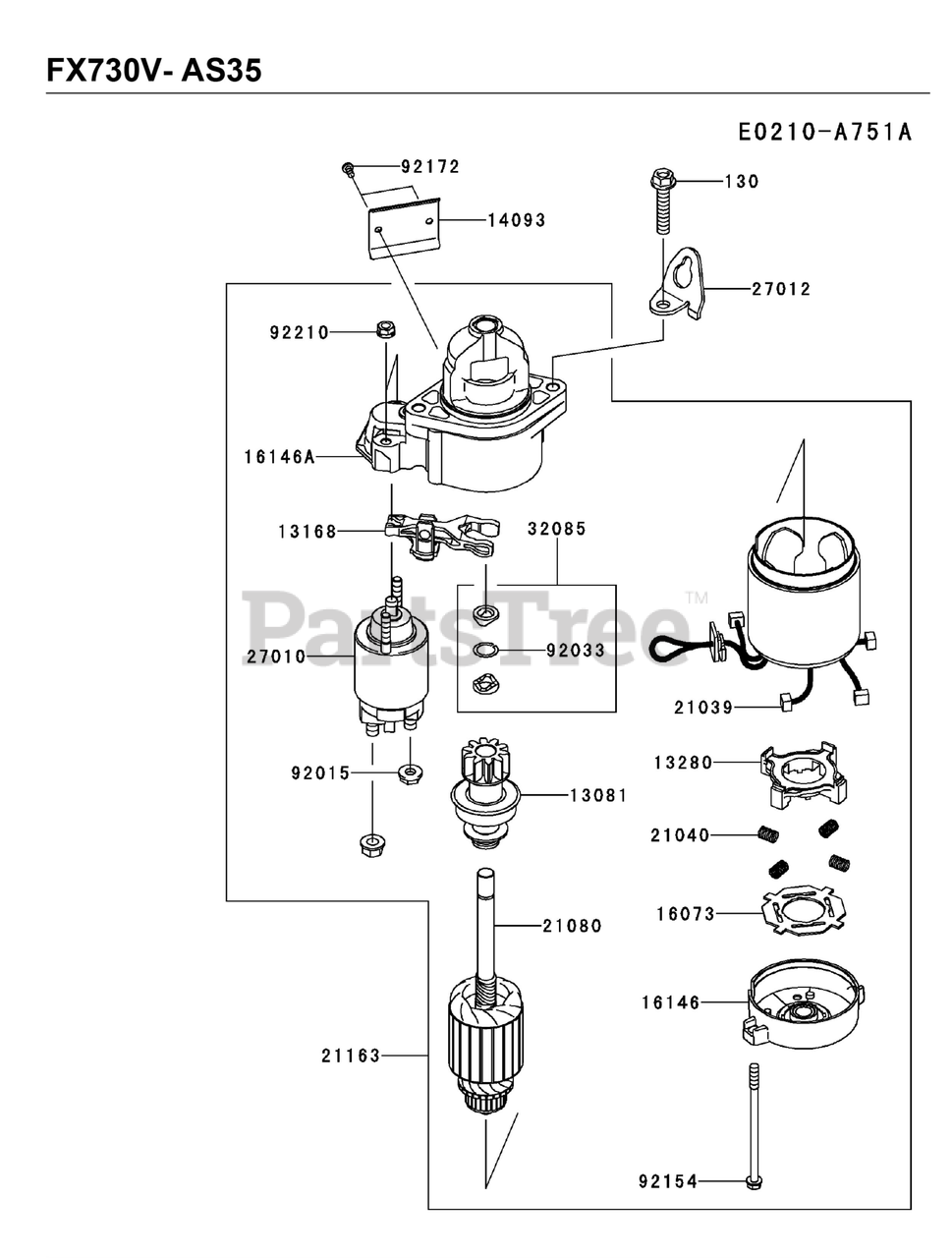

FX730V-AS35 STARTER Parts Diagram

  • Title

13081

Cub Cadet KM-13081-7002

CLUTCH-ASSY,STARTER-ELECTRIC
(Superseded to KM-13081-0651)

$148.99

$

Usually ships in 2-5 days

0

13168

Cub Cadet KM-13168-0847

LEVER,PINION DRIVE
(Superseded to KM-13168-2148)

$25.99

$

Usually ships in 2-5 days

0

13280

Cub Cadet KM-13280-0873

HOLDER,BRUSH
(Superseded to KM-13091-2068)

$29.99

$

Usually ships in 2-5 days

0

14093

Cub Cadet KM-14093-0456

COVER

$2.99

$

Usually ships in 2-5 days

0

16073

Cub Cadet KM-16073-0854

INSULATOR

$8.49

$

Usually ships in 2-5 days

0

16146

Cub Cadet KM-16146-2077

COVER-ASSY,COMMUTATOR END

$83.99

$

In Stock, only 1 left!

0

16146A

Cub Cadet KM-16146-0801

COVER-ASSY,STARTER DRIVE

$85.99

$

Usually ships in 2-5 days

0

21039

Cub Cadet KM-21039-2059

BRUSH,STARTER-ELECTRIC

$15.99

$

In Stock, only 1 left!

0

21040

Cub Cadet KM-21040-0005

SPRING-BRUSH
(Superseded to KM-21040-2052)

$3.99

$

Usually ships in 2-5 days

0

21080

Cub Cadet KM-21080-0011

ARMATURE,STARTER-ELECTRIC
(Superseded to KM-21080-2058)

$281.99

$

Usually ships in 2-5 days

0

21163

Cub Cadet KM-21163-0754

STARTER-ELECTRIC
(Superseded to KM-99996-6120)

$247.99

$

In Stock, Qty 20+

0

27010

Cub Cadet KM-27010-0843

SWITCH,MAGNET
(Superseded to KM-27010-7005)

$189.99

$

In Stock, Qty 8

0

27012

Cub Cadet KM-27012-7008

HOOK

$1.49

$

Usually ships in 2-5 days

0

32085

Cub Cadet KM-32085-0797

STOPPER,PINION
(Superseded to KM-32085-2097)

$15.99

$

Usually ships in 2-5 days

0

92015

Cub Cadet KM-92015-2147

NUT

$7.49

$

Usually ships in 2-5 days

0

92033

Cub Cadet KM-92033-0777

RING-SNAP
(Superseded to KM-32085-2097)

$15.99

$

Usually ships in 2-5 days

0

92154

Cub Cadet KM-92154-2116

BOLT

$9.49

$

Usually ships in 2-5 days

0

92172

Cub Cadet KM-92172-0870

SCREW,4X8

$0.99

$

In Stock, only 3 left!

0

92210

Cub Cadet KM-92210-1493

NUT
(Superseded to KM-92015-2146)

$1.99

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130BA0840

BOLT-FLANGED,8X40

$2.49

$

In Stock, Qty 7

0
