FX691V-CS32 - Kawasaki Engine ELECTRIC EQUIPMENT Parts Diagram

Engine

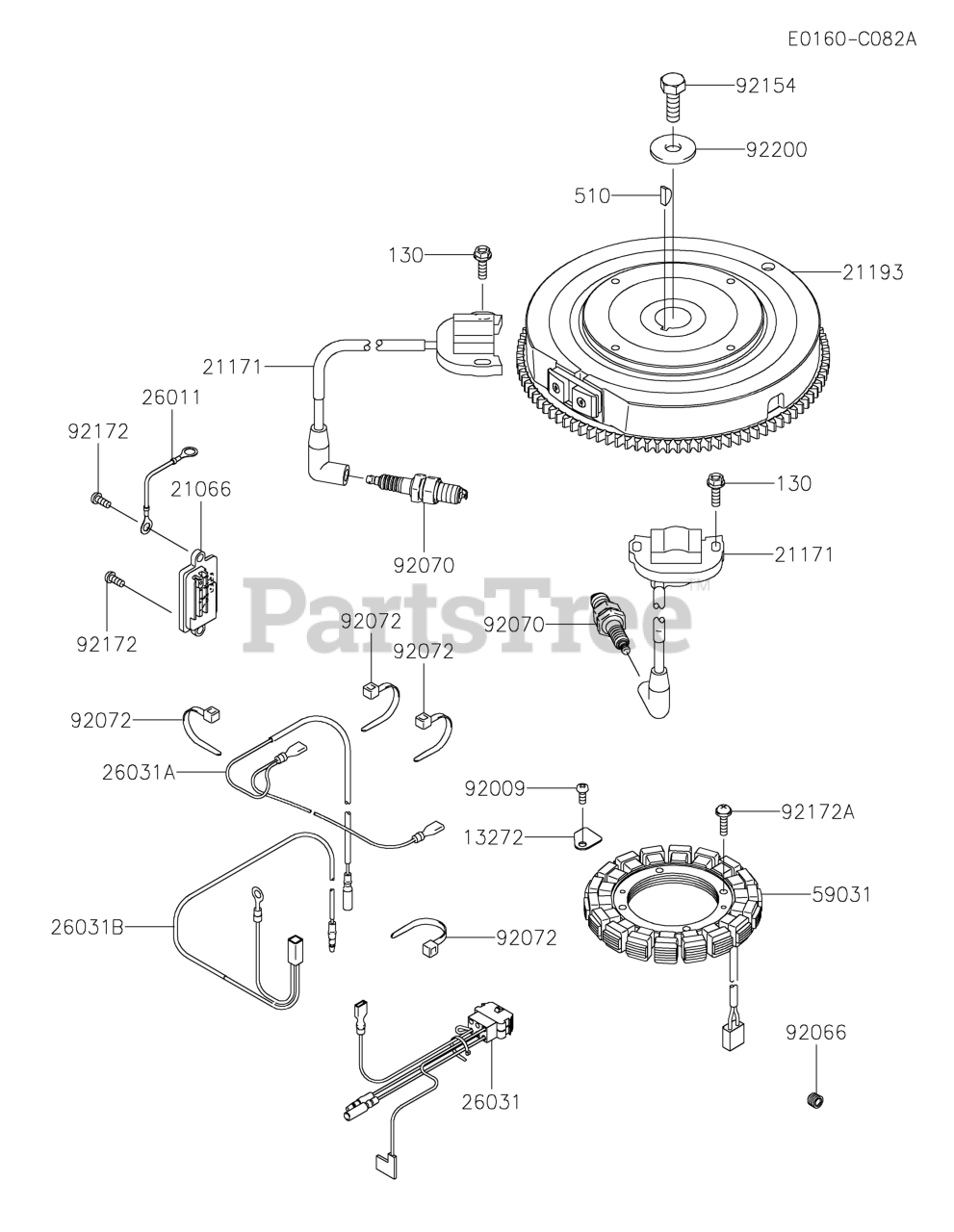

ELECTRIC EQUIPMENT Parts Diagram

  • Title

13272

Cub Cadet KM-13272-7012

PLATE-CHARGE COIL

$1.49

$

Usually ships in 2-5 days

0

21066

Cub Cadet KM-21066-7017

REGULATOR-VOLTAGE

$52.99

$

In Stock, Qty 14

0

21171

Cub Cadet KM-21171-0740

IGNITION COIL ASSEMBLY

$77.99

$

In Stock, Qty 9

0

21193

Cub Cadet KM-21193-0036

FLYWHEEL ASSEMBLY

$270.99

$

Usually ships in 2-5 days

0

26011

Cub Cadet KM-26011-2234

WIRE LEAD

$2.49

$

In Stock, only 3 left!

0

26031

Cub Cadet KM-26031-7008

WIRE HARNESS

$28.99

$

Usually ships in 2-5 days

0

26031A

Cub Cadet KM-26031-7040

LEAD-HARNESS

$5.99

$

In Stock, only 2 left!

0

26031B

Cub Cadet KM-26031-7041

LEAD-HARNESS

$11.99

$

Usually ships in 2-5 days

0

59031

Cub Cadet KM-59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 7

0

92009

Cub Cadet KM-92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92066

Cub Cadet KM-92066-0881

PLUG

$4.49

$

In Stock, Qty 6

0

92070

Cub Cadet KM-BPR4ES

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

92072

Cub Cadet KM-92072-7003

BAND

$1.49

$

In Stock, only 3 left!

0

92154

Cub Cadet KM-92154-7003

BOLT-FLYWHEEL 12X

$4.99

$

In Stock, only 1 left!

0

92172

Cub Cadet KM-92172-1091

SCREW-5X12

$0.99

$

Usually ships in 2-5 days

0

92172A

Cub Cadet KM-92172-7018

SCREW

$0.99

$

In Stock, Qty 9

0

92200

Cub Cadet KM-92200-7002

WASHER

$3.49

$

In Stock, only 1 left!

0

130

Cub Cadet KM-130BA0620

FLANGED BOLT 6X20

$1.99

$

In Stock, only 2 left!

0

510

Cub Cadet KM-510A5100

WOODRUFF KEY

$3.49

$

In Stock, Qty 17

0
