FX651V-AS15 - Kawasaki Engine STARTER Parts Diagram

Engine

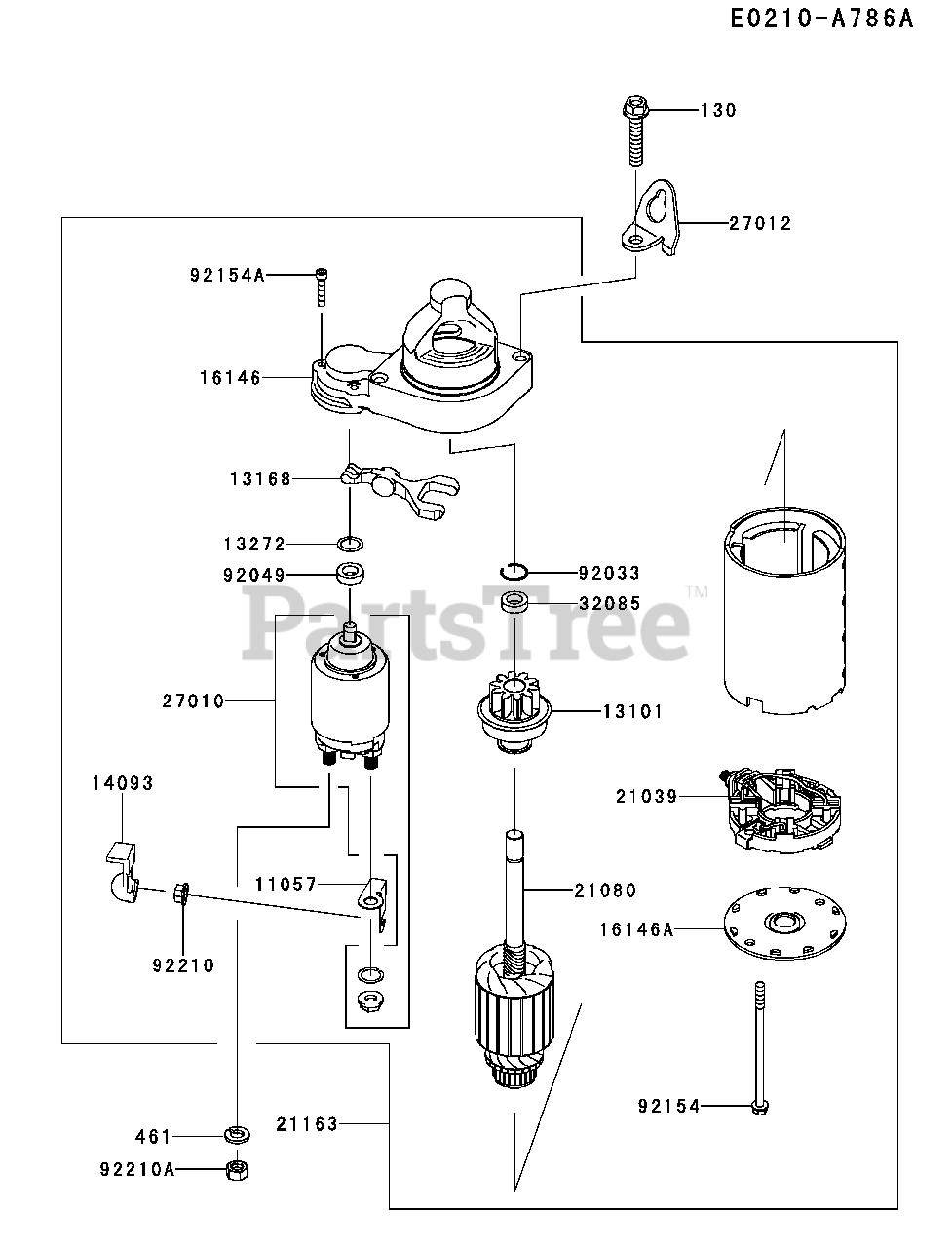

STARTER Parts Diagram

  • Title
11057

$

$

Not available

13101

Kawasaki 131010682

GEAR-ASSY

$

$

Not available

13168

Kawasaki 131680876

LEVER,CLUTCH

$

$

Not available

13272

$

$

Not available

14093

$

$

Not available

16146

Kawasaki 161460842

COVER-ASSY

$

$

Not available

16146A

Kawasaki 161460843

COVER-ASSY

$

$

Not available

21039

$

$

Not available

21080

$

$

Not available

21163

Kawasaki 21163-0781

STARTER-ELECTRIC
(Superseded to 99996-6120)

$247.99

$

In Stock, Qty 20+

0

27010

$

$

Not available

27012

$1.49

$

Usually ships in 2-5 days

0

32085

$

$

Not available

92033

Kawasaki 920330807

RING-SNAP

$

$

Not available

92049

$

$

Not available

92154

Kawasaki 921543879

BOLT,M6X125

$

$

Not available

92154A

Kawasaki 921543880

BOLT,M4X22.3

$

$

Not available

92210

$

$

Not available

92210A

$1.99

$

In Stock, Qty 20+

0

130

Kawasaki 130BA0840

BOLT-FLANGED,8X40
(Superseded to 130AA0840)

$2.49

$

In Stock, Qty 7

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
