FX600V-GS09 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

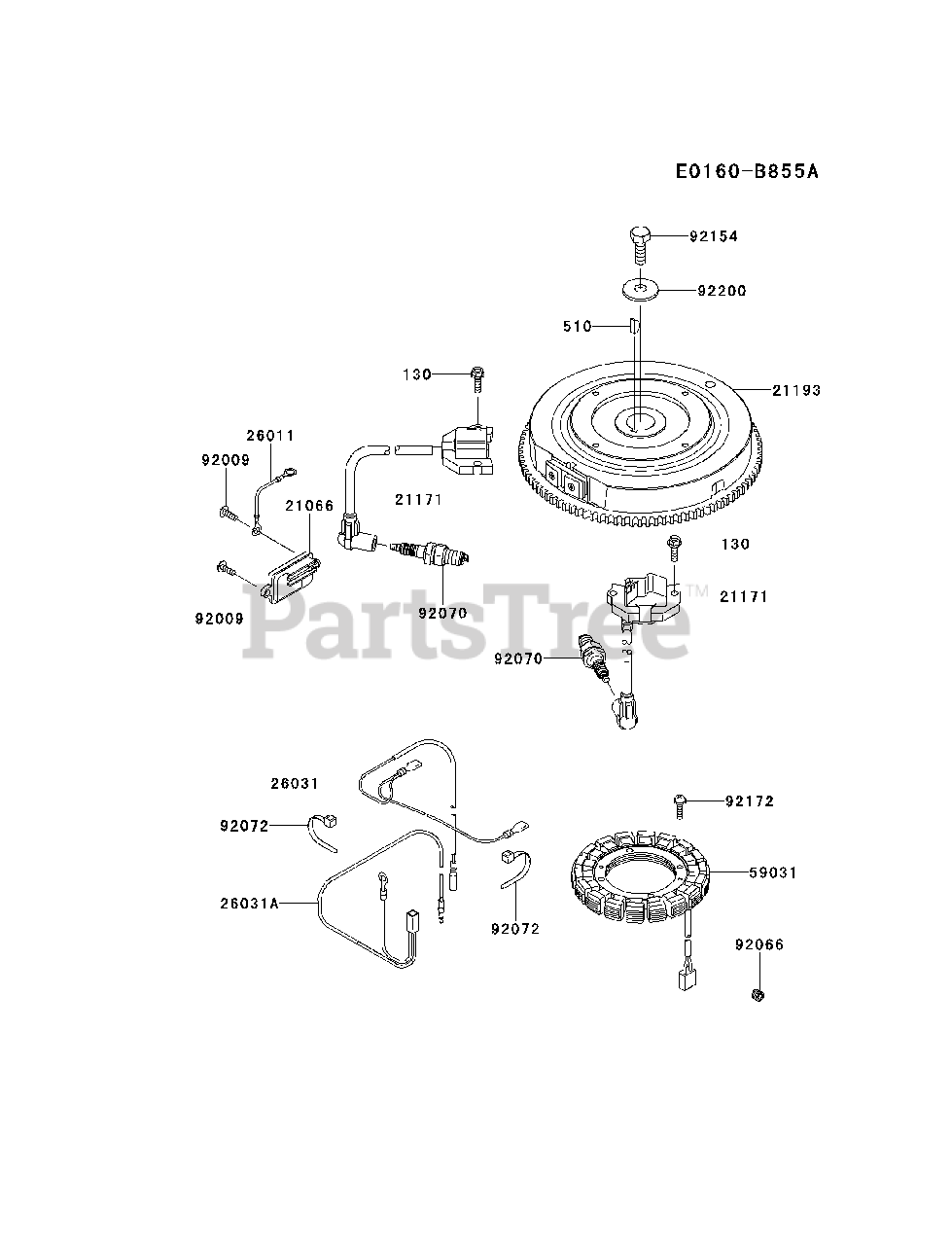

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 210667017

REGULATOR-VOLTAGE

$52.99

$

In Stock, Qty 20+

0

21171

Kawasaki 211710740

COIL-ASSY-IGNITION

$77.99

$

In Stock, Qty 20+

0

21193

Kawasaki 211930035

FLYWHEEL-ASSY
(Superseded to 21193-0016)

$266.99

$

In Stock, only 4 left!

0

26011

Kawasaki 260112234

WIRE-LEAD

$2.49

$

In Stock, only 3 left!

0

26031

Kawasaki 260317040

HARNESS

$5.99

$

In Stock, Qty 20+

0

26031A

Kawasaki 260317047

HARNESS

$9.49

$

In Stock, Qty 9

0

59031

Kawasaki 590317017

COIL-CHARGING

$127.99

$

In Stock, Qty 20+

0

92009

Kawasaki 920092303

SCREW

$2.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-0762

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, Qty 20+

0

92072

Kawasaki 920727003

BAND

$1.49

$

In Stock, only 3 left!

0

92154

Kawasaki 921547003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92172

Kawasaki 921727018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 922007002

WASHER

$3.49

$

In Stock, Qty 7

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
