FX600V-AS18 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

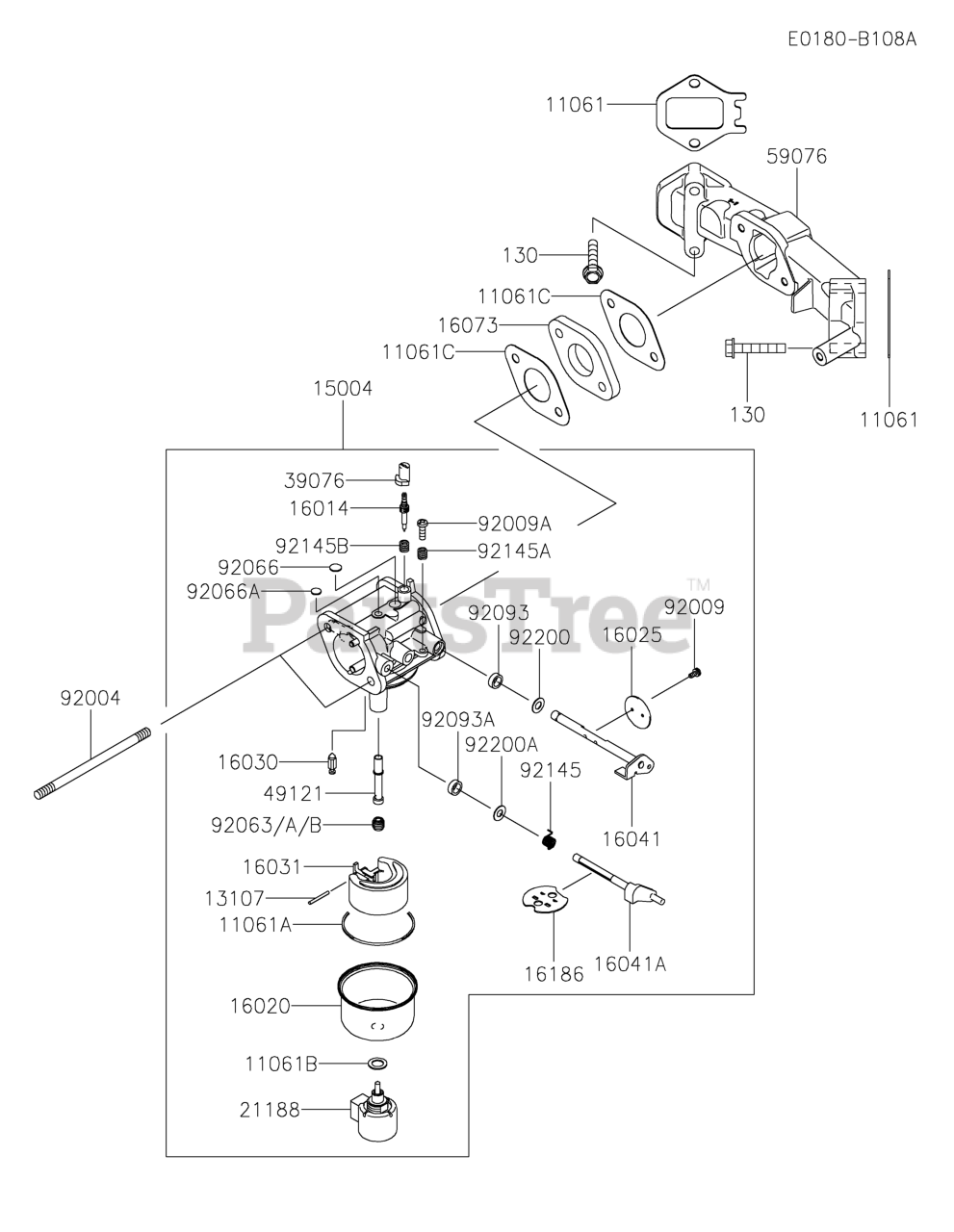

CARBURETOR Parts Diagram

  • Title
11061

Kawasaki 11061-0877

GASKET,MANIFOLD
(Superseded to 11061-7089)

$3.49

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7009

GASKET,CHAMBER

$2.99

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7010

GASKET,SCREW

$3.49

$

In Stock, Qty 20+

0

11061C

Kawasaki 11061-7096

GASKET,INSULATOR

$2.99

$

In Stock, Qty 20+

0

13107

$4.49

$

In Stock, Qty 11

0

15004

Kawasaki 15004-0815

CARBURETOR-ASSY
(Superseded to 15004-7054)

$377.99

$

Usually ships in 2-5 days

0

16014

Kawasaki 16014-7011

SCREW-PILOT AIR

$18.99

$

In Stock, only 1 left!

0

16020

Kawasaki 16020-7003

CHAMBER-FLOAT

$14.99

$

In Stock, Qty 20+

0

16025

Kawasaki 16025-7006

VALVE-THROTTLE

$17.99

$

In Stock, Qty 5

0

16030

Kawasaki 16030-7003

VALVE-FLOAT

$20.99

$

In Stock, Qty 20+

0

16031

$28.99

$

In Stock, Qty 20+

0

16041

Kawasaki 16041-7018

SHAFT-CARBURETOR,THROTTLE

$22.99

$

In Stock, Qty 5

0

16041A

Kawasaki 16041-7049

SHAFT-CARBURETOR,CHOKE

$29.99

$

In Stock, only 3 left!

0

16073

$4.49

$

In Stock, Qty 20+

0

16186

Kawasaki 16186-7001

VALVE-ASSY-CHOKE

$13.99

$

In Stock, only 1 left!

0

21188

$171.99

$

In Stock, Qty 19

0

39076

$8.49

$

In Stock, only 2 left!

0

49121

Kawasaki 49121-7020

NOZZLE-MAIN

$34.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-7020

MANIFOLD-INTAKE

$131.99

$

Usually ships in 2-5 days

0

92004

$2.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2083

SCREW
(Superseded to 31037A-6157A)

$2.49

$

In Stock, Qty 20+

0

92009A

$1.49

$

In Stock, only 3 left!

0

92063

Kawasaki 92063-7046

JET-MAIN,#100,3280FT

$12.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-7047

JET-MAIN,#098,6560FT

$12.99

$

Usually ships in 2-5 days

0

92063B

Kawasaki 92063-7156

JET-MAIN,#102

$13.99

$

In Stock, only 2 left!

0

92066

$3.99

$

In Stock, Qty 20+

0

92066A

$1.99

$

In Stock, Qty 20+

0

92093

$2.49

$

In Stock, Qty 20+

0

92093A

$2.49

$

In Stock, only 1 left!

0

92145

$1.49

$

In Stock, Qty 16

0

92145A

$2.49

$

Usually ships in 2-5 days

0

92145B

$2.49

$

In Stock, Qty 9

0

92200

$1.49

$

In Stock, Qty 20+

0

92200A

Kawasaki 92200-2061

WASHER,9.8X5.5X1.0

$1.99

$

In Stock, Qty 7

0

130

Kawasaki 130AA0635

BOLT-FLANGED,6X35
(Superseded to 130B0635)

$1.99

$

In Stock, Qty 12

0
